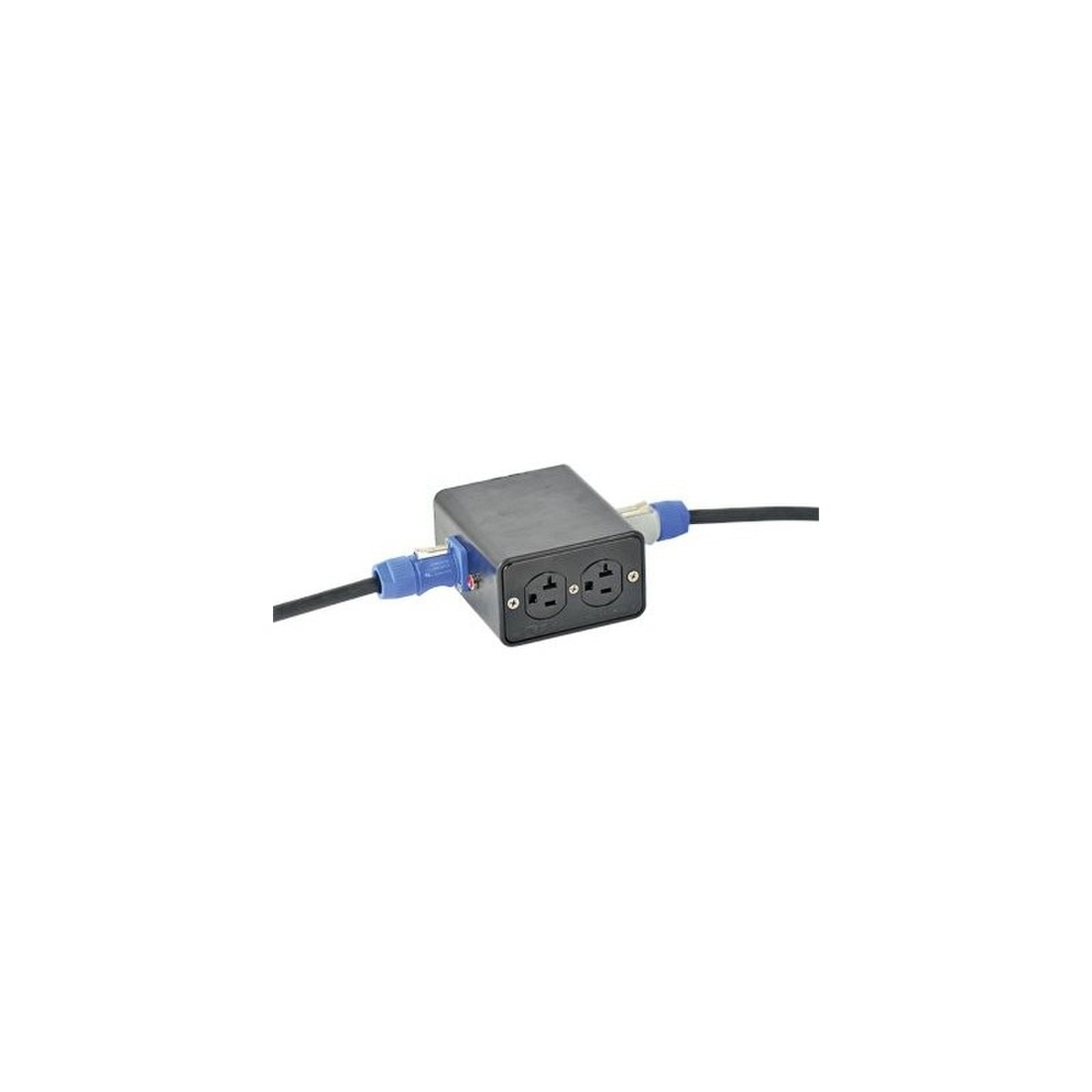

Lex 20 Amp Quad Box with powerCON Input to Edisons Feed Thru

This exceptionally versatile box is used for placing convenient duplex receptacles exactly where they are needed. The box enables the user to create receptacle stringers using powerCON extensions of various lengths.

Features:

• Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion
• Compact and convenient way to place 20 Amp duplex receptacles where they are needed
• Feed thru option allows multiple boxes to be placed along the same feed

Specifications:

• Rating: 20 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, powerCON inlet
• Output: (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
• Feed Thru: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, powerCON outlet
• Dimensions: 4.7" L x 2.5" W x 4.2" H
• Approximate Weight: 1.5 lbs
