Lex 200 Amp 3 Phase Moving Light Box
Details

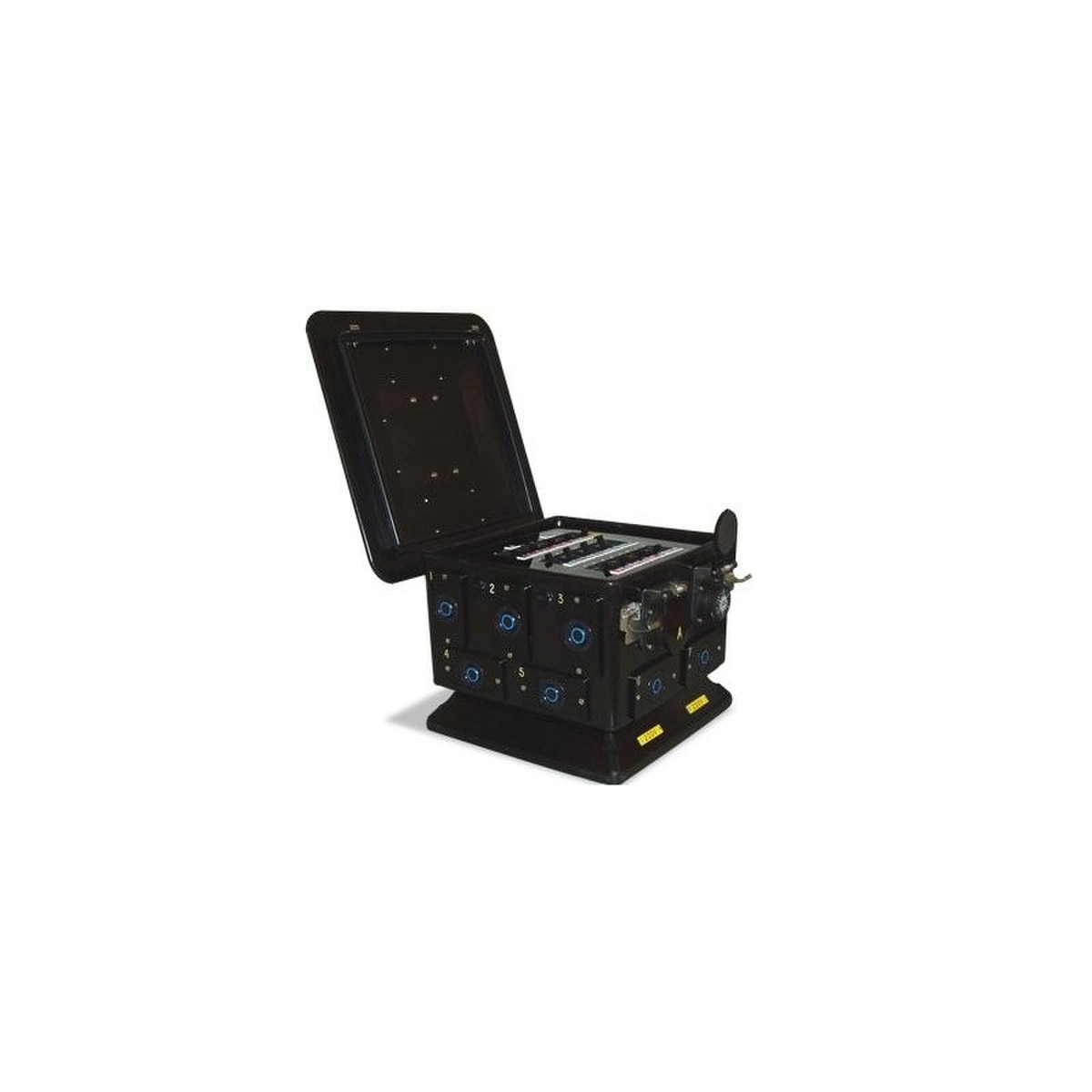

Lex 200 Amp 3 Phase Moving Light Box
Application
This box powers 12 moving lights at a remote location with (12) NEMA L6-20 plugs or (2) 6-circuit, 220 VAC multi-cables. The two types of receptacles are wired in parallel.
Features & Benefits
Specifications
Specifications_Sheet_97190_File_1.pdf
Application
This box powers 12 moving lights at a remote location with (12) NEMA L6-20 plugs or (2) 6-circuit, 220 VAC multi-cables. The two types of receptacles are wired in parallel.
Features & Benefits
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Circuit breakers mounted under a hinged lid for enhanced safety
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
Specifications
- Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 220 VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
- Output: (12) NEMA L6-20, 20 Amp, 2 Pole, 3 Wire, 220 VAC, locking receptacle wired in parallel with (2) 20 Amps per circuit, 6-circuit, 220 VAC, LSC19 female panel mount receptacles, (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacle
- Feed Thru None
- Overcurrent Protection: (12) 20 Amp, 2 Pole branch-rated circuit breakers, (1) 20 Amp, Single Pole branch-rated circuit breaker
- Overall Dimensions: 14.25" L x 14.25" W x 14.15" H
- Approximate Weight: 32 lbs
