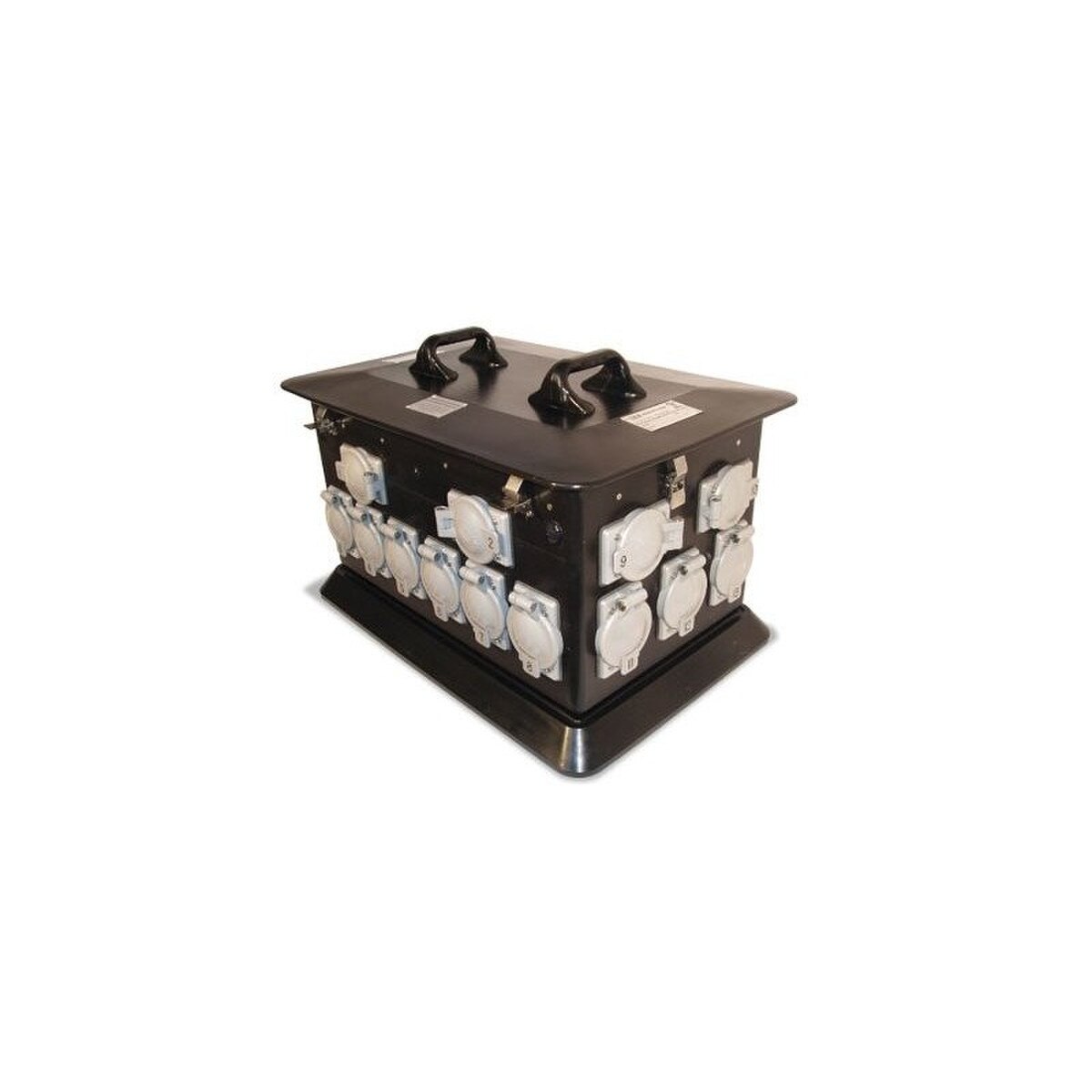

Lex 200A 3 Phase Power Station to NEMA TT-30 RV Receptacles - Feed Thru - Reverse Ground
Details
Lex 200 Amp 3 Phase Power Station to NEMA TT-30 RV Receptacles, Feed Thru, Weather Resistant
This box is used at events where portable trailers need to be powered, such as golf tournaments, auto races, or fairs. The feed-thru allows multiple boxes set up over a wide area.
Features:
Data_Sheet_97128_File_1.pdf
This box is used at events where portable trailers need to be powered, such as golf tournaments, auto races, or fairs. The feed-thru allows multiple boxes set up over a wide area.
Features:
- Heavy-duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather.
- Compact for easy storage and convenient portability.
- Breakers located under hinged lid, enhancing safety.
- Elevated base keeps receptacles above ground level
- Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating: NEMA 3R Weather Resistant
- Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
- Output: (21) NEMA TT-30, 30 Amp, 2 Pole, 3 Wire, 125 VAC straight blade RV receptacles
- Feed Thru: (1) set of (5) 16 Series Cam-type color-coded panel mount outlets
- Overcurrent Protection: (21) 30 Amp, Single Pole branch-rated circuit breakers
- Overall Dimensions: 27.5” L x 18.5” W x 18” H
- Weight: 65 lbs
