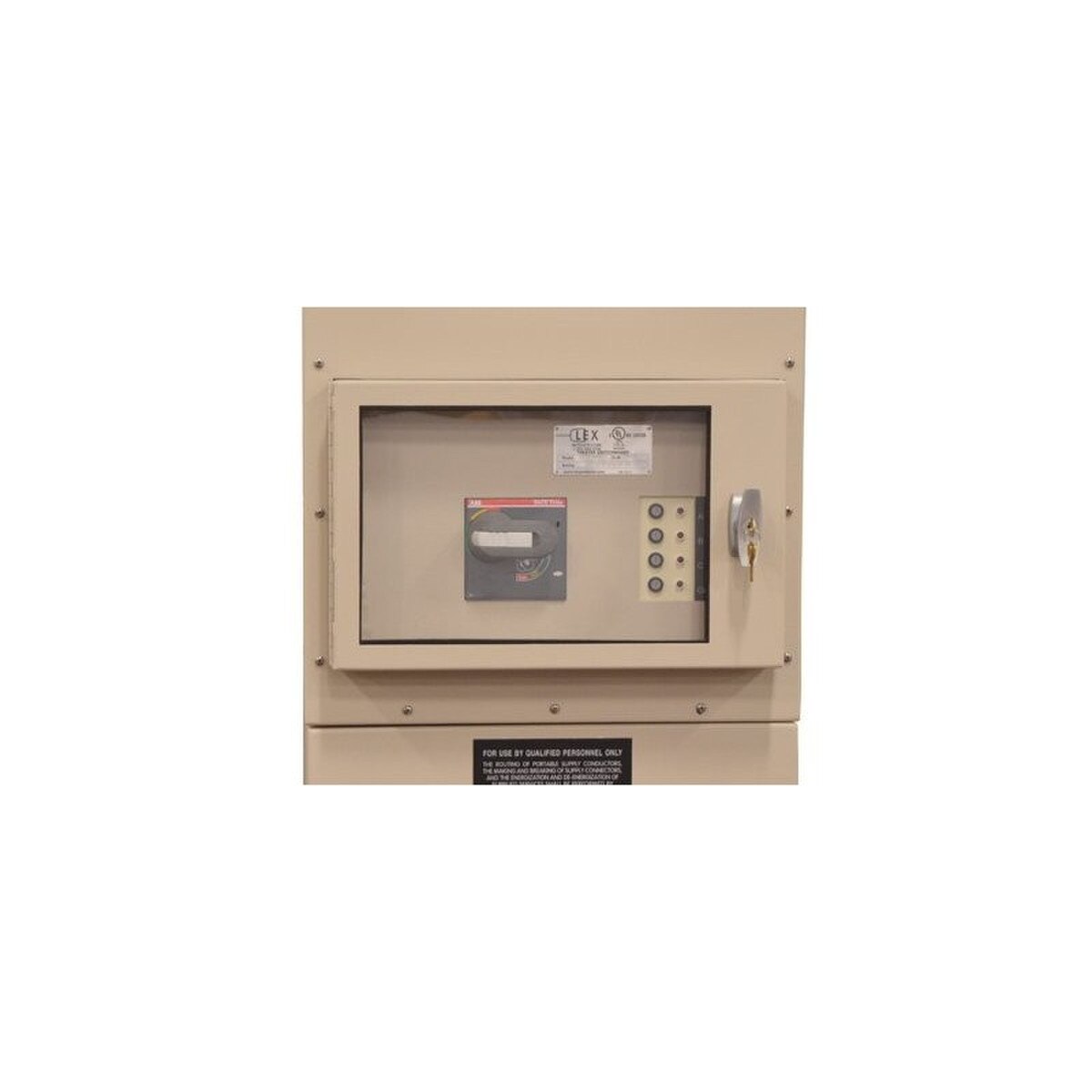

Lex 200A Company Switch Type 3R Weatherproof 5 Wire

Features:

• The Lex Products PowerGATE Company Switch provides access to relatively high amounts of electrical power in applications where the equipment utilized changes on a regular basis, such as theaters, studios, convention centers and arenas
• Company Switches offer enhanced safety and convenience when connecting temporary 3 Phase power to portable equipment such as dimmer racks, audio racks and motor controls
• Company Switches have become the preferred type of product for applications of this nature due to safety and convenience benefits
• PowerGATE™ Company Switch design features both Cam-type connectors and lugs in one compact, connection chamber for ultimate flexibility
• Features an electronic trip circuit breaker that is 100% rated, enabling continuous operation at maximum capacity
• Circuit breaker rated at 65,000 AIC (Amps Interrupting Capacity) to exceed requirements for installed dimmers
• Outputs are behind a lockable access door, helping to eliminate accidental disconnection, unauthorized access and/or tampering with connections
• Unique arrangements of both cams and lug terminations enables both sets of cable to drape downward for lower profile when mounted against a wall
• For enhanced safety, the access door to pin & sleeve and lug connections is interlocked to the main breaker, which means the breaker cannot be turned on unless the access door is closed
• Power shuts off automatically when the access door is opened, eliminating the ability to make or break a connection under load
• Circuit breaker allows for lockout/tagout to restrict access as needed
• The chassis ground can be isolated from the main ground for sensitive audio applications
• An integral LED worklight is provided in the connection chamber for ease of connection and enhanced safety

Specifications:

• Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
• Environmental Rating: NEMA Type 3R (Weather Resistant)
• Input: (1) set of (6) compression terminals (H,H,H,N,N,G), wire range: 350 kcmil - 6 AWG, 600V, panel mount
• Output: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded, (H,H,H,N,G), panel mount outlets; (1) of (5) compression terminals, wire range: 500 kcmil- 4 AWG, 120/208Y VAC, (H,H,H,N,G), panel mount
• Feed Thru: None
• Overcurrent Protection: (1) 100-250 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
• Enclosure: Company Switch
• Color: Sand
• Overall Dimensions: 12.91"L x 20.27"W x 38.50"H
• Weight: 123.0 lb
