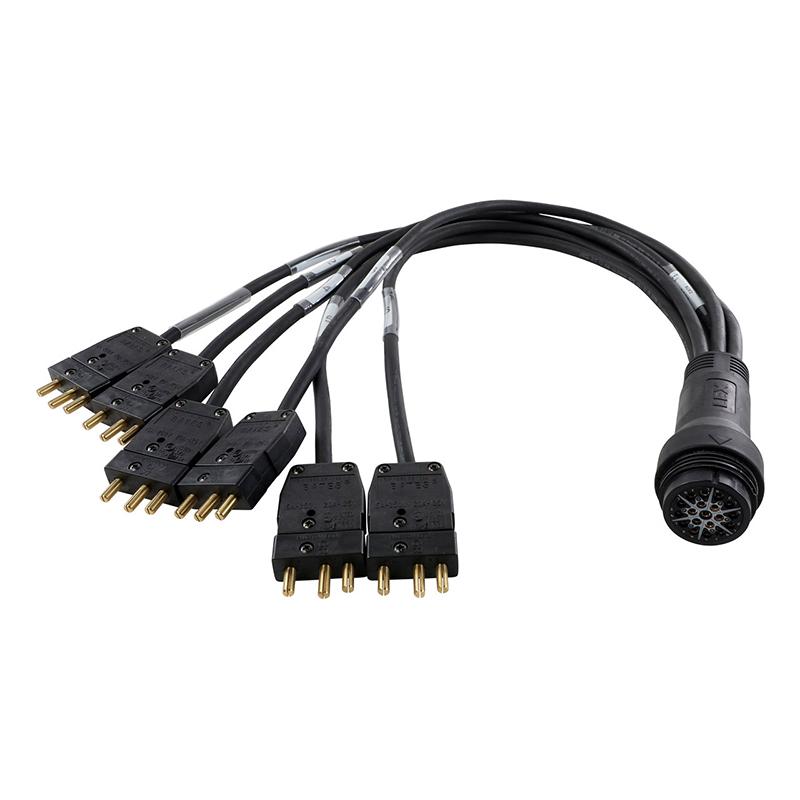

Lex 20A 6-Circuit EverGrip Break-In Stage Pin to Molded LSC19 - 3’
Details
20A 125 VAC, (6) 20A Stage Pin (Bates) Males (Plugs) to (1) Molded LSC19 19-Pin Female (Connector), #12/3 Type SJOOW Cord, Adapter
- Part Number: EGBI100-xx-SP
- Functions: Power
- Markets: Entertainment
- Connector Type(s): 19-Pin Stage Pin
- Amperage: 20A
Features & Benefits:
- Provides power to a 6-circuit LSC19 connector from (6) 20A Stage Pin (Bates) plugs
- Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
- Pins and sockets cannot push back, extending the life of the connectors
- Rugged construction helps prevent broken conductors and loose or damaged ground rings
- Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
- Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
- Silver-plated brass contacts for high conductivity
- All black construction blends into scenery and is ideal for stage or studio lighting applications
- Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
Technical Information:
- Rating: 20 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz. NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
- Male Plug: (6) Stage Pin (Bates), 20 Amp, 2-pole, 3-wire, 125 VAC inlet, inline cylindrical contact device, black
- Cable/Cord: (6) #12/3 Type SJOOW Cord
- Length: 3'
- Female Connector: (1) LSC19, (6) x 10 Amp, 2-pole, 3-wire, 120/208Y VAC, molded 19-pin locking device
- Weight: 0 lbs
