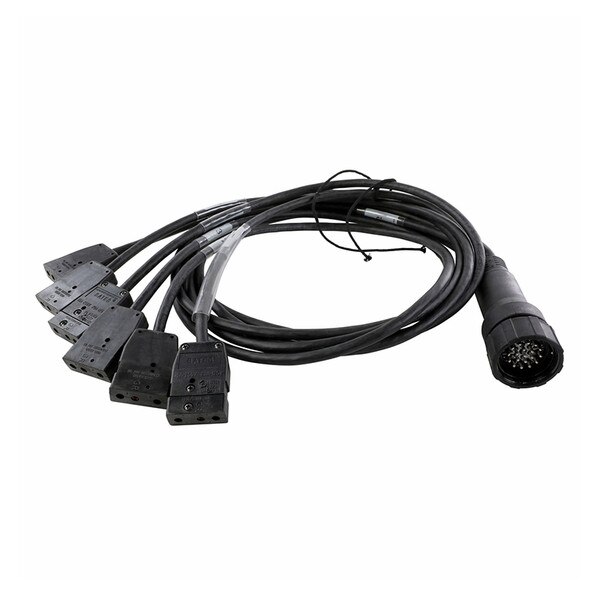

Lex 20A Break-Out Male LSC19 to Female Stage Pin - 6'

20A 125 VAC, (1) Molded LSC19 19-Pin Male (Plug) to (6) Stage Pin (Bates) Females (Connectors), #12/3 Type SJOOW Cord, Adapter

• Part Number: EGBO100-xx-SP
• Functions: Power
• Markets: Entertainment
• Connector Type(s): 19-Pin Stage Pin
• Amperage: 20A

Features & Benefits:

• Provides power to (6) Stage Pin (Bates) connectors from (1) molded 6-circuit LSC19 plug
• Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
• Pins and sockets cannot push back, extending the life of the connectors
• Rugged construction helps prevent broken conductors and loose or damaged ground rings
• Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
• Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
• Silver-plated brass contacts for high conductivity
• All black construction blends into scenery and is ideal for stage or studio lighting applications
• Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers

Technical Information:

• Rating: 20 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz. NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
• Male Plug: (1) Molded 20A 19-Pin Male (Plug), Black
• Cable/Cord: (6) #12/3 Type SJOOW, Black
• Length: 6' Stock Length
• Female Connector: (6) Stage Pin (Bates) Females (Connectors), Black
• Weight: 0 lbs
