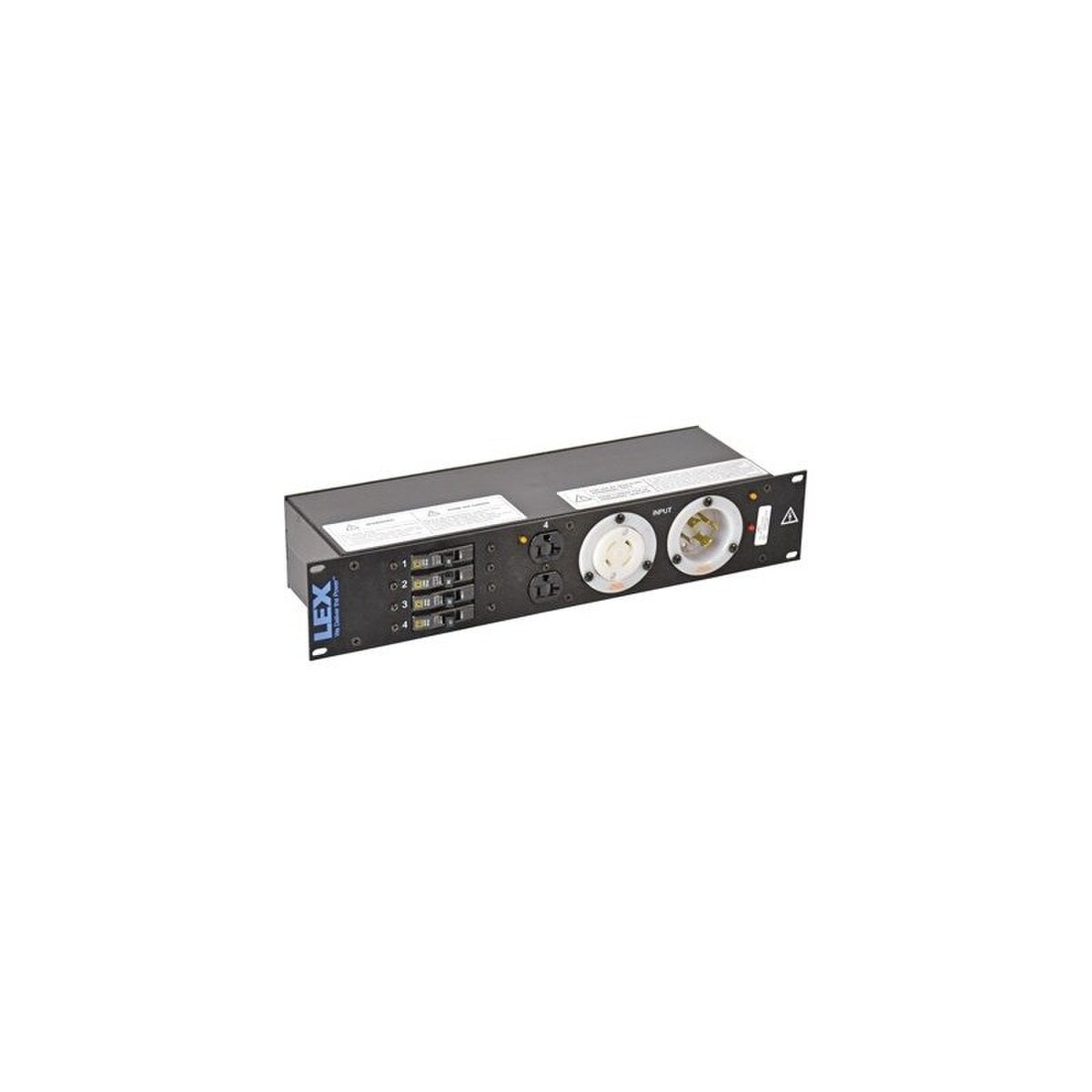

Lex 2RU Rack Mount Power Distribution, L14-30 In/Thru to (2) L5-30 and Duplexes

Features:

Modules mount in standard 19" permanent and portable racks

Modules are fully enclosed making them portable

Easy to install for range of needs

Branch-circuit rated protection

Indicator lights included for clear presence of power

Laser etched numbers for easy circuit identification

Anodized black metal construction is lightweight and durable to withstand years of use

ETL Listed to UL Standards

*The ETL Mark is an accepted demonstration of product compliance in both the United States and Canada

Specifications:

Size: 2RU

Environmental Rating: NEMA 1 Indoor

Input: Front: (1) NEMA L14-30, 30 Amp locking inlet

Output: Rear: (2) NEMA L5-30, 30 Amp locking receptacles

Front: (1) NEMA 5-20, 20 Amp duplex receptacles

Feed Thru: Front: (1) NEMA L14-30, 30 Amp locking receptacle

Overcurrent Protection: Front: (2) 30 Amp Front: (2) 20 Amp thermal magnetic breakers

Number of Circuits: 4

Dimensions: 19" W x 3.5" H x 5.5" D
