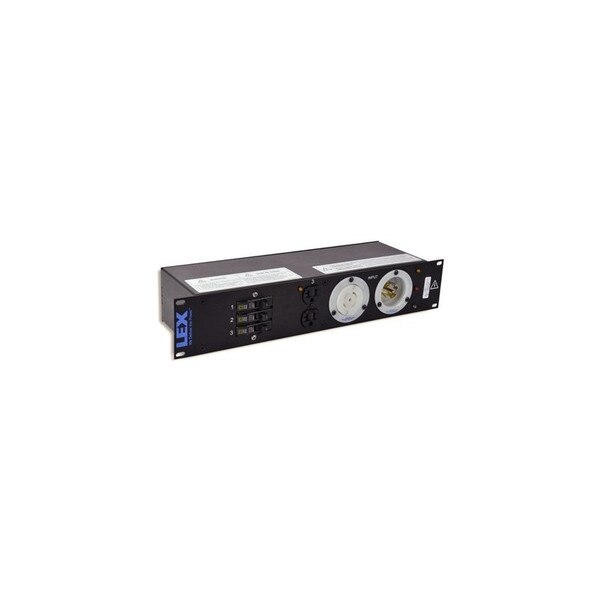

Lex 2RU Rack Mount Power Distribution, L21-30 In/Thru to (6) Duplexes
Details
Features:
- Modules mount in standard 19" permanent and rolling racks
- Modules are fully enclosed making them portable
- Easy to install for range of needs
- Branch-rated circuit protection
- Indicator lights included for clear presence of power
- Laser etched numbers for easy circuit identification
- Anodized black metal construction is lightweight and durable to withstand years of use
- ETL Listed to UL Standards
- *The ETL Mark is an accepted demonstration of product compliance in both the United States and Canada.
Specifications:
- Size: 2RU
- Environmental Rating: NEMA 1 Indoor
- Input: Front: (1) NEMA L21-30, 30 Amp locking inlet
- Output: Rear: (6) NEMA 5-20, 20 Amp duplex receptacles
- Front: (1) NEMA 5-20, 20 Amp duplex receptacle
- Feed Thru: Front: (1) NEMA L21-30, 30 Amp locking receptacle
- Overcurrent Protection: (3) 20 Amp thermal magnetic circuit breakers
- Number of Circuits: 3
- Dimensions: 19" W x 3.5" H x 5.5" D
