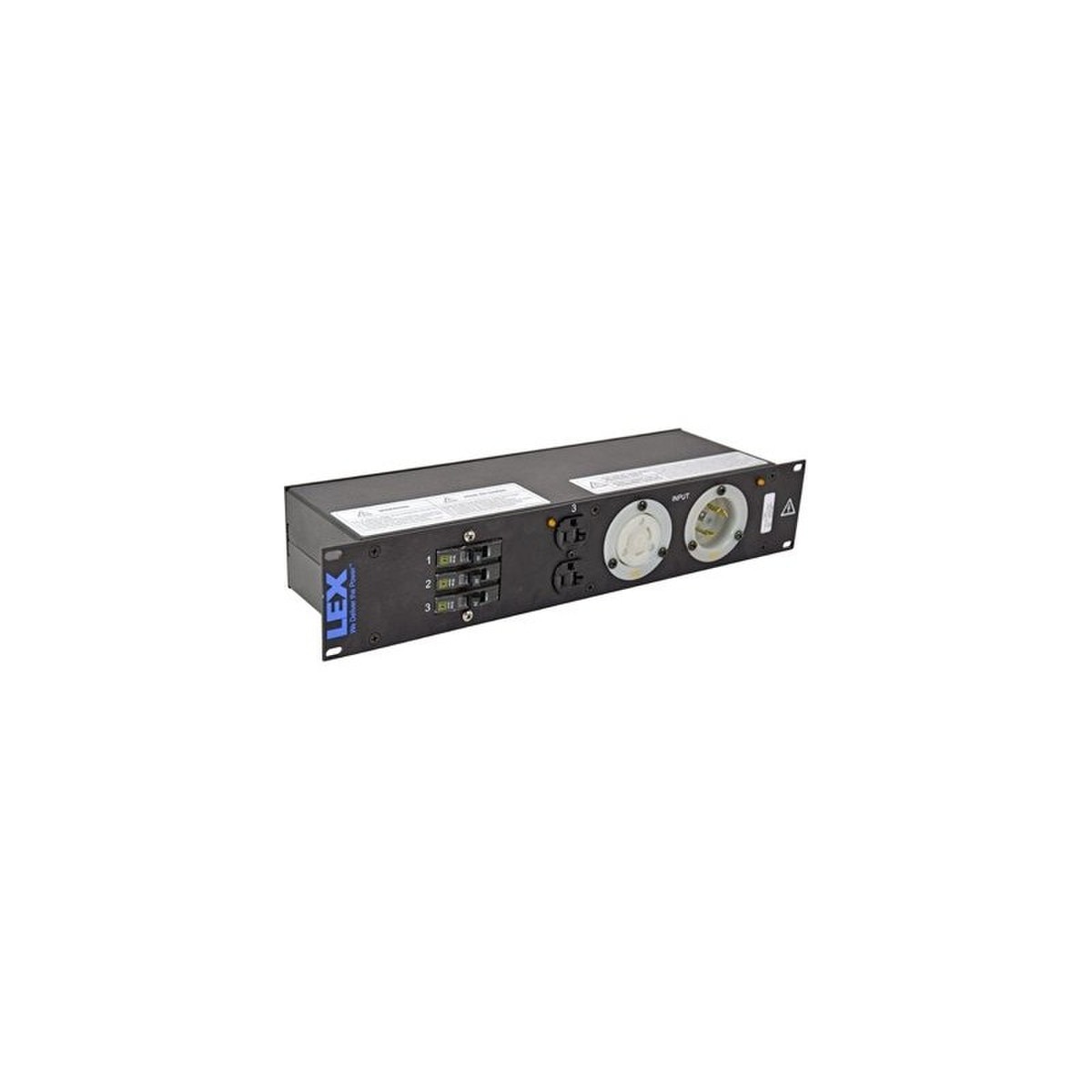

Lex 2RU Rack Mount Power Distribution, L5-30 In/Thru to Duplexes

Features:

Modules mount in standard 19" permanent and rolling racks

Modules are fully enclosed making them portable

Easy to install for range of needs

Branch-rated circuit protection

Indicator lights included for clear presence of power

Laser etched numbers for easy circuit identification

Anodized black metal construction is lightweight and durable to withstand years of use

ETL Listed to UL Standards

*The ETL Mark is an accepted demonstration of product compliance to in both the United States and Canada.

Specifications:

Size: 2RU

Environmental Rating: NEMA 1 Indoor

Input: Front: (1) NEMA L5-30, 30 Amp locking inlet

Output: Rear: (8) NEMA 5-20, 20 Amp duplex receptacles

Front: (1) NEMA 5-20, 20 Amp duplex receptacles

Feed Thru: Front: (1) NEMA L5-30, 30 Amp locking receptacle (front)

Overcurrent Protection: (3) 20 Amp thermal magnetic circuit breakers

Number of Circuits: 3

Dimensions: 19" W x 3.5 H x 5.5" D
