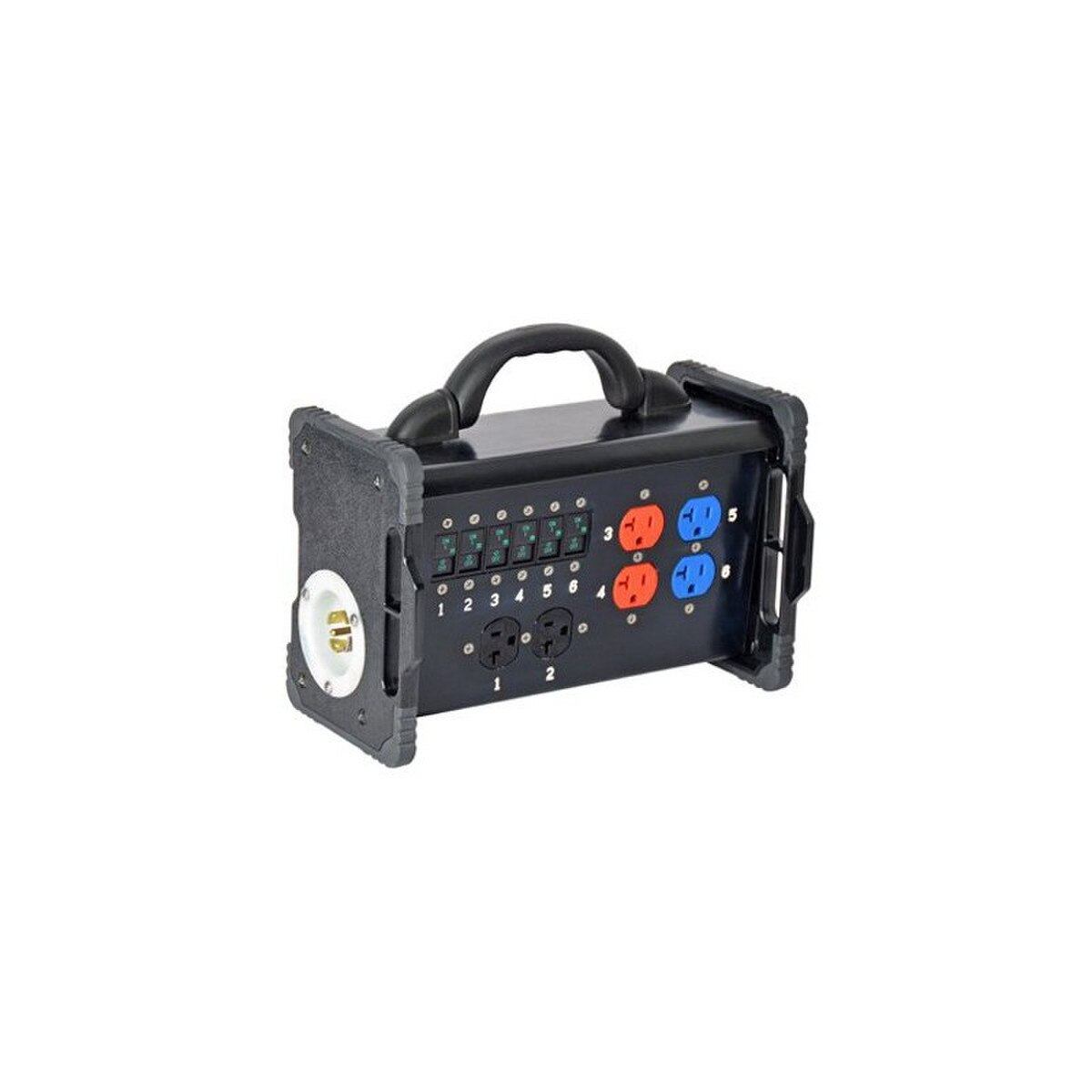

Lex 30 Amp Bento Box to NEMA Receptacles Feed Thru

(0)No Reviews yet
$852.75
SKU: Lex BNB2-3B

Add this item to get free shipping! (Motor Freight Excluded)

Details

Lex 30 Amp Bento Box to NEMA Receptacles Feed Thru

Fed from 30 Amp power, this compact unit provides NEMA 5-20, 20 Amp duplex receptacles for lighting and audio equipment as well as tools for a wide range of applications.

Features:

  • Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
  • Stackable and compact for easy storage
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces

Specifications:

  • Rating: 30 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) NEMA L21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208 VAC inlet
  • Output: (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC color coded duplex receptacles split wired for (6) 20 Amp circuits
  • Feed Thru: (1) NEMA L21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire 120/208 VAC receptacle
  • Overcurrent Protection: (6) 20 Amp hydraulic magnetic branch-rated circuit breakers
  • Dimensions: 11.5" L x 5.9" W x 7.6" H
  • Approximate Weight: 6.5 lbs.

Specifications_Sheet_97177_File_1.pdf
