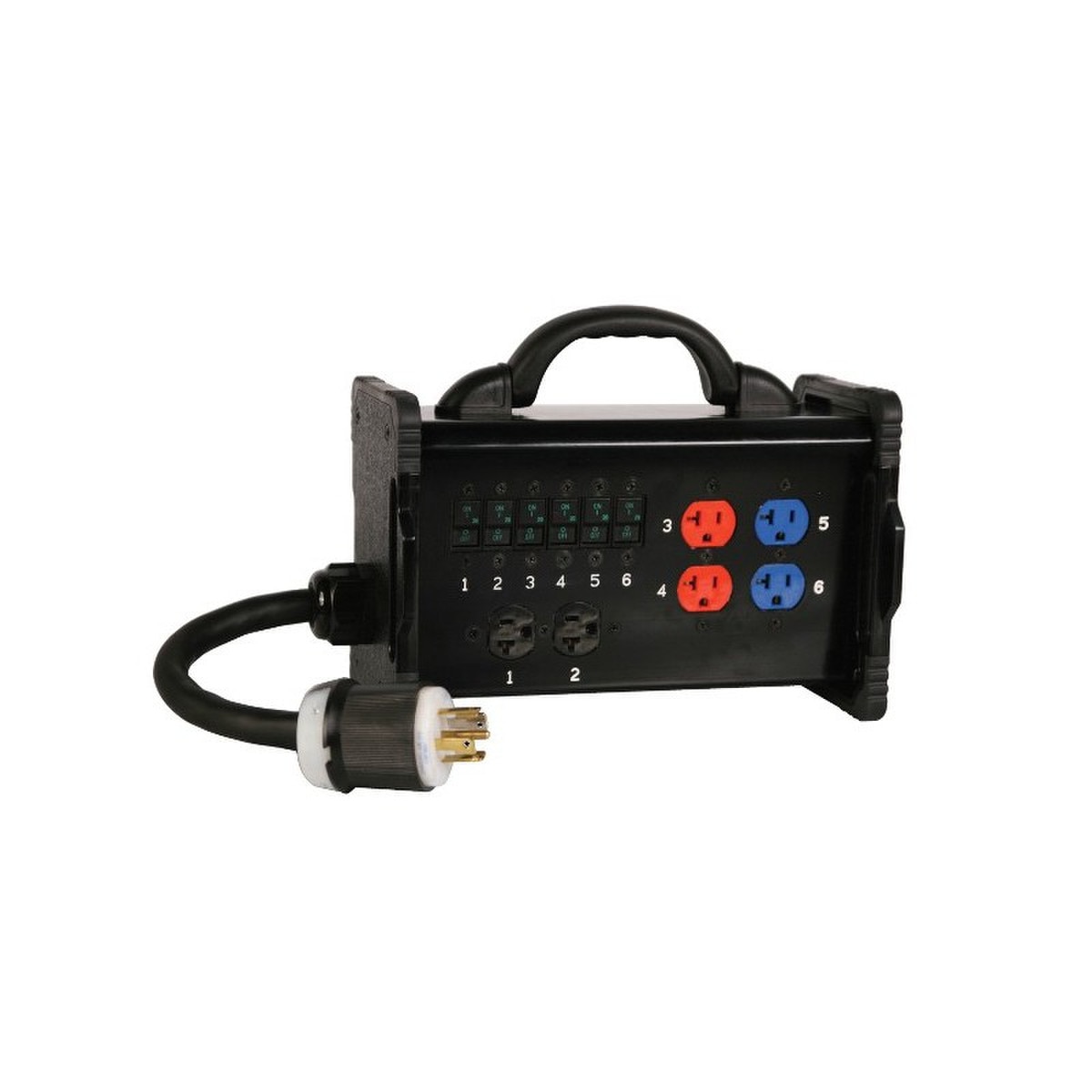

Lex 30 Amp Bento Box with Tail Input to NEMA Receptacles
Details
Fed from 30 Amp power, this box provides NEMA 5-20, 20 Amp duplex receptacles for lighting and audio equipment as well as tools for a wide range of applications.
Features:
Specifications_Sheet_97178_File_1.pdf
Features:
- Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
- Stackable and compact for easy storage
- Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
- Circuit breakers are mounted flush for easy access and circuit identification
- Collapsible handle and end plate grips for easy handling in tight spaces
- Rating: 30 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) NEMA 21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking plug on 12 inch 10/5 SOW-A cable tail
- Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC color-coded duplex receptacles split wired for (6) 20 Amp circuits
- Feed Thru: None
- Overcurrent Protection: (6) 20 Amp hydraulic magnetic branch-rated circuit breakers
- Dimensions: 11.5" L x 5.9" W x 7.6" H
- Approximate Weight: 6.5 lbs.
