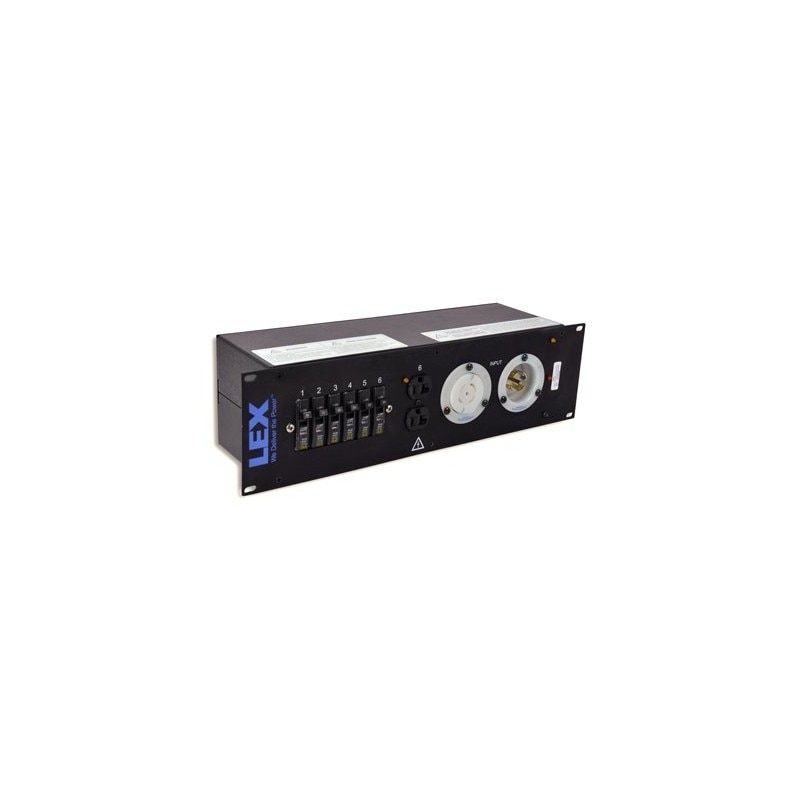

Lex 3RU Rack Mount Power Distribution, L21-30 In/Thru to (4) L5-30 and Duplexes

Features:

Modules mount in standard 19" permanent and rolling racks

Modules are fully enclosed making them portable

Easy to install for range of needs

Branch-rated circuit protection

Indicator lights included for clear presence of power

Laser etched numbers for easy circuit identification

Anodized black metal construction is lightweight and durable to withstand years of use

ETL Listed to UL Standards

*The ETL Mark is an accepted demonstration of product compliance in both the United States and Canada.

Specifications:

Size: 3RU

Environmental Rating: NEMA 1 Indoor

Input: Front: (1) NEMA L21-30, 30 Amp locking inlet

Output: Rear: (4) NEMA L5-30, 30 Amp locking receptacles Rear: (2) NEMA 5-20, 20 Amp duplex receptacles

Front: (1) NEMA 5-20, 20 Amp duplex receptacle

Feed Thru: Front: (1) NEMA L21-30, 30 Amp locking receptacle

Overcurrent Protection: Front: (4) 30 Amp Front: (2) 20 Amp thermal magnetic circuit breakers

Number of Circuits: 6

Dimensions: 19" W x 5.25" H x 5.5" D
