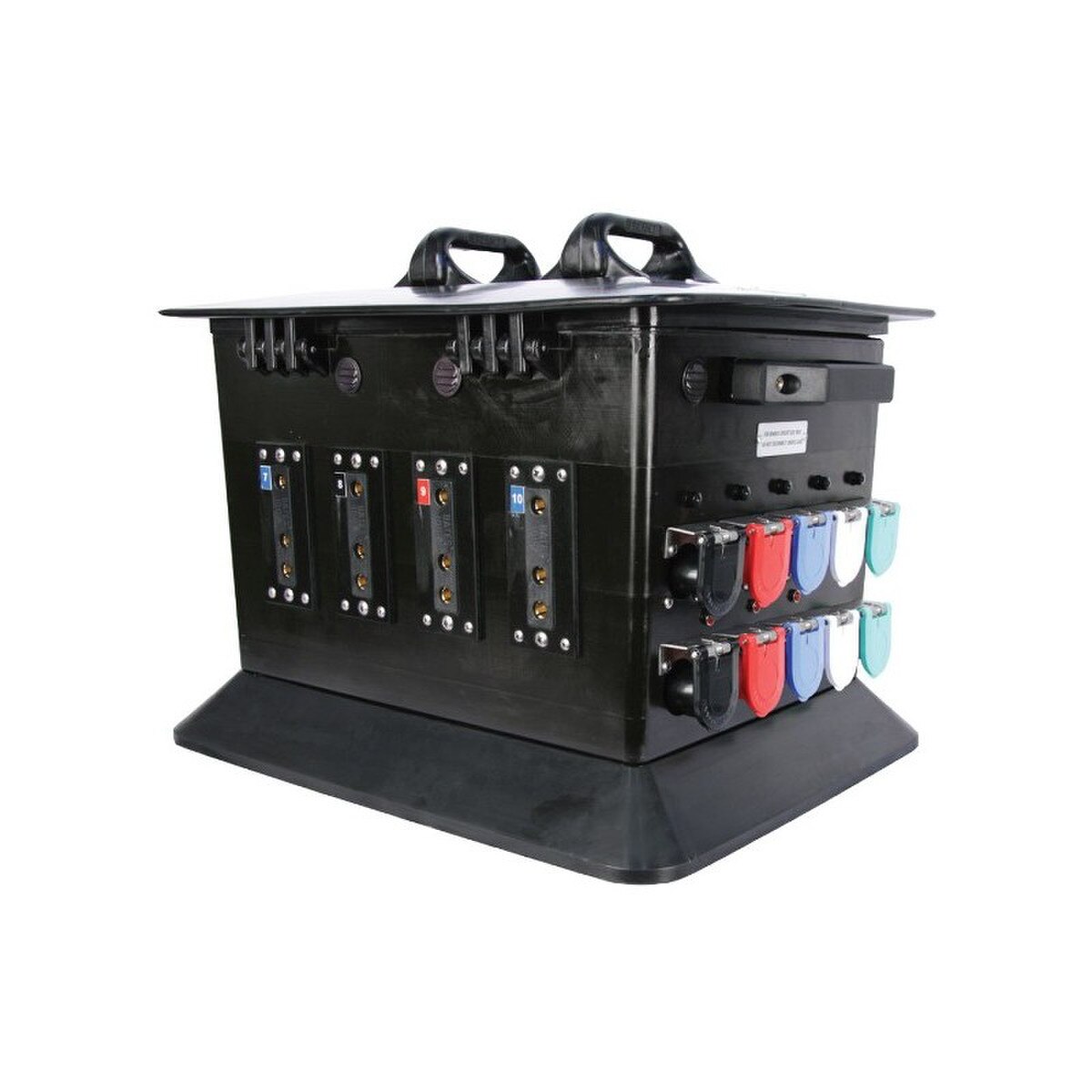

Lex 400 Amp 3 Phase Motion Picture Box to Stage Pin-Feed Thru

(0)No Reviews yet
$4,882.75
SKU: Lex DB400N2J6BC3BD-H1

Add this item to get free shipping! (Motor Freight Excluded)

Details

Distributes power to large 120 VAC and 220 VAC lighting fixtures on sets or on location shoots. A duplex receptacle is provided for convenience use.

Features:

  • Provides a variety of stage pin receptacles for powering multiple lights
  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
  • Breakers are mounted under the hinged lid for enhanced safety
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level

Specifications:

  • Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
  • Output: (3) 100 Amp, 2 Pole, 3 Wire, 220 VAC stage pin receptacles; (6) 100 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles; (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire duplex receptacle
  • Feed Thru: (1) set of (5) 16 Series Cam-type color-coded panel mount outlets
  • Overcurrent protection: (3) 100 Amp, Single Pole branch-rated circuit breakers; (6) 100 Amp, 2 Pole branch-rated circuit breakers; (1) 20 Amp, Single Pole branch-rated circuit breaker
  • Overall Dimensions: 27.5" L X 18.5" W X 18" H
  • Approximate Weight 90 lbs.

Specifications_Sheet_97188_File_1.pdf
