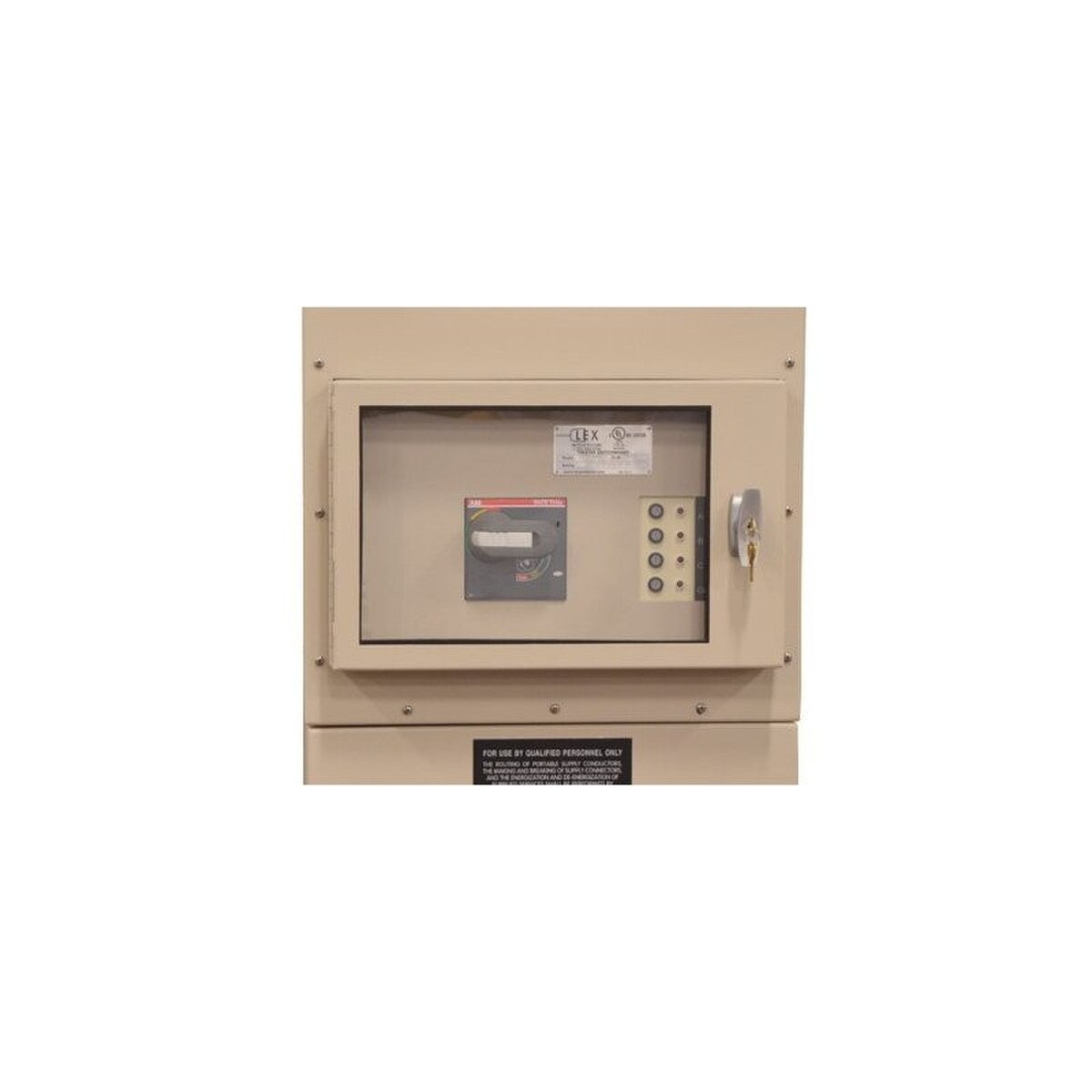

Lex 400A Company Switch Type 3R Weatherproof 5 Wire
 and Outdoor (NEMA 3R) Company Switches.jpg?resizeid=3&resizeh=600&resizew=600)
Details
Features:
Specifications_Sheet_98242_File_1.pdf
- Both Cam-type or IEC 60309 pin & sleeve and lug connections are behind the lockable access door, helping to eliminate accidental disconnection, unauthorized access and/or tampering with connections
- For enhanced safety, the access door to Cam-type or IEC 60309 pin & sleeve and lug connections is interlocked to the main breaker, which means the breaker can only be turned on when the access door is closed
- Power shuts off automatically when the access door is opened, eliminating the ability to make or break a connection under load
- PowerGATE™ Company Switch design accommodates both Cam-type or IEC 60309 pin & sleeve and lug outputs in one wiring chamber, resulting in a compact design
- Circuit breaker rated at 65,000 AIC (Amps Interrupting Capacity) to exceed requirements for installed dimmers
- Units feature an electronic trip circuit breaker that is 100% rated, enabling continuous operation at maximum capacity
- Unique arrangement of both Cam-type or IEC 60309 pin & sleeve and lug terminations enables both sets of cable to drape downward for lower profile when mounted against a wall
- Circuit breakers and connection chamber housed behind gasketed door
- Circuit breaker door allows for lockout/tagout and restricted access as needed
- The chassis ground can be isolated from the main ground for sensitive audio applications
- Plug Type: NEMA 3R
- Rating: 400 Amp, 3 Phase, 120/208Y VAC
- Overcurrent Protection: 65,000 AIC Main Breaker 100% Rated
- Output: (5) 16 Series Cam-Type Devices
- Black - Hot
- Red - Hot
- Blue - Hot
- White - Neutral
- Green - Ground
- Dimensions: 45.22” H x 20.28” W x 12.91” D
- Weight: 130 lbs
- 5 Wire
