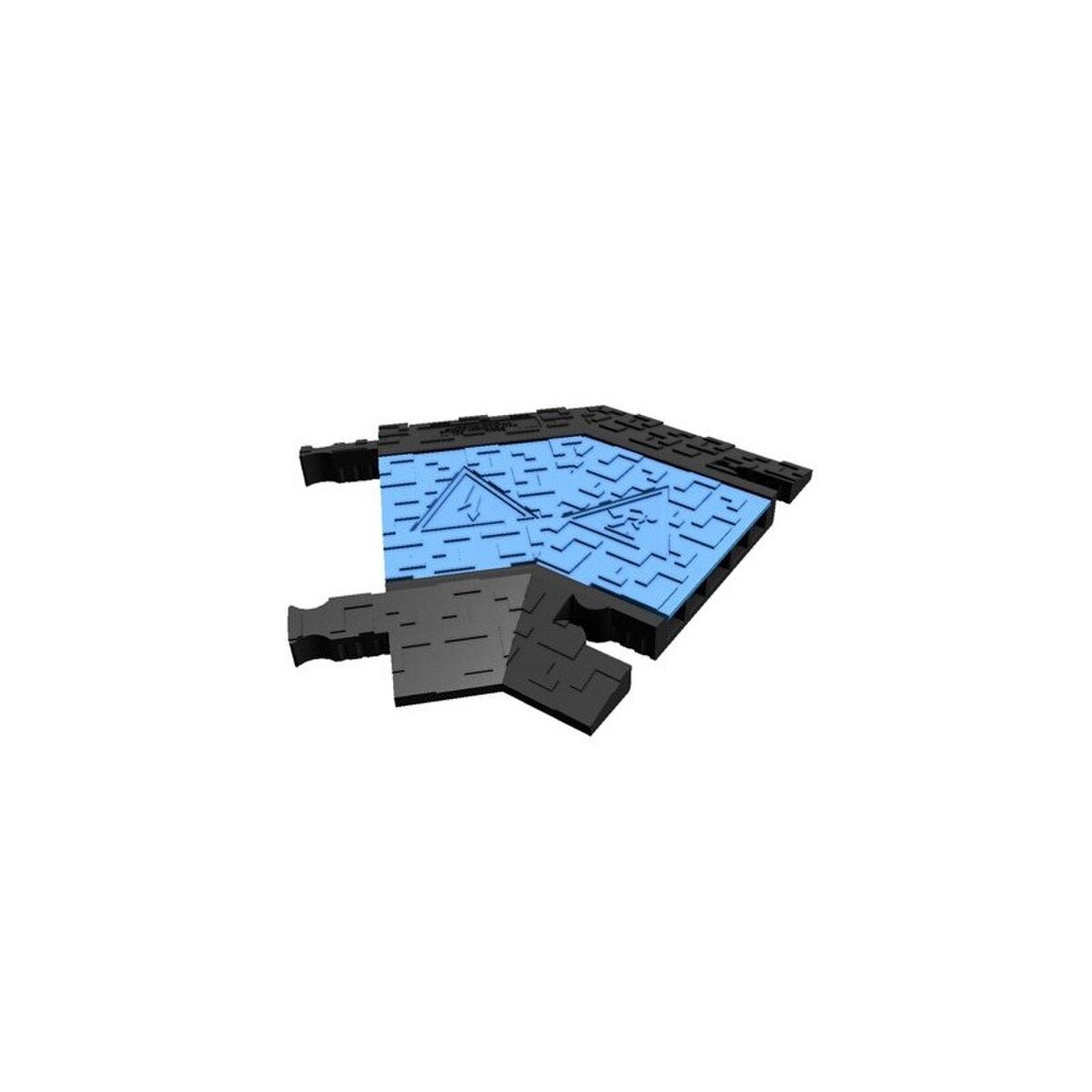

Lex 5 Channel 45 Degree Turn Right

The Lex 5 Channel 45 Degree Turn Right protects cables and hoses from damage when run across roads, parking lots, sidewalks and pathways, providing safe crossing for pedestrian and vehicle traffic.

Features:

• Heavy-duty, non-conductive polyrethane constructon provides safe crossing for pedestrians and vehicles while protecting electrical cables and hose lines.
• Rugged industry standard connectors with exclusive "slip notch" fritction release design provides easy mating and un-mating.
• Mates with major cable protector brands and products.
• 5-channel design can accomodate up to 1.25 inch diameter cables and hoses.
• 1.625 inch wide center channel allows for up to #2 AWG 5-wire banded sets. Exclusive tread design provides excellent traction.
• Hinged lid provides easy access for insertion and removal of cables and hoses.
• Made from UV stabilized material for prolonged use in direct sunlight.
• High-visibility blue lid and black base.

Specifications:

• Length: 25"
• Width: 19.75"
• Height: 2"
• Weight: 15.5lbs.
• Slot Height: (5) 1.25" Channels
• Slot Width: (4) 1.25" Channels / (1) 1.625" Center Channel
• Material: Base & Lid: Polyurethane / Hinge Pin: Reinforced Fiberglass
• Load Capacity Per Tire/Axle: 16ZZ300 lbs. Per Tire / 32,000 lbs. Per Axle at 70ºF
• Safety Warning Symbols: Per ANSI Z535.3-2011-Molded in Lid
• Operating Temperature: -40ºF to 120ºF / -40ºC to 48ºC
