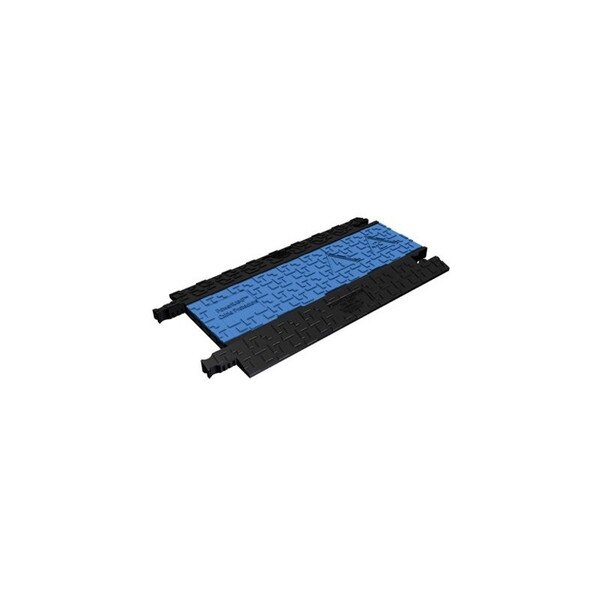

Lex 5 Channel Heavy Duty Crossover
Details
The Lex Crossover Cable Protector protects cables and hoses from damage and provides safe crossing for pedestrian and vehicle traffic. It can be run across roads, parking lots, sidewalks, and pathways.
Features:
Specifications_Sheet_98100_File_1.pdf
Features:
- Heavy-duty non-conductive polyurethane construction provides safe crossing for pedestrians and vehicles while protecting electrical cables and hose lines
- Rugged, industry standard connectors with exclusive "slip notch" friction release design provides easy mating and un-mating
- Mates with major cable protector brands and products
- 5-channel design can accommodate up to 1.25" diameter cables and hoses
- 1.625" wide center channel allows for up to #2 AWG 5-wire banded sets
- Exclusive tread design provides excellent traction
- Hinged lid provides easy access for insertion and removal of cables and hoses
- Made from UV stabilized material for prolonged use in direct sunlight
- High-visibility blue lid and black base
- Company name or logo can be molded into lid for easy identification
- Dimensions (L x W x H): 35.5 x 19.75 x 2"
- Weight: 27 lbs
- Slot Height: (5) 1.25" Channels
- Slot Width: (4) 1.25" Channels / (1) 1.625" Center Channel
- Material:
- Base & Lid: Polyurethane
- Hinge Pin: Reinforced Fiberglass
- Load Capacity: 16,300 lbs per Tire / 32,600 lbs per Axle at 70ºF
- Safety Warning Symbols: Per ANSI Z535.3-2011-Molded in Lid
- Operating Temperature:
- -40ºF to 120ºF
- -40ºC to 48ºC
