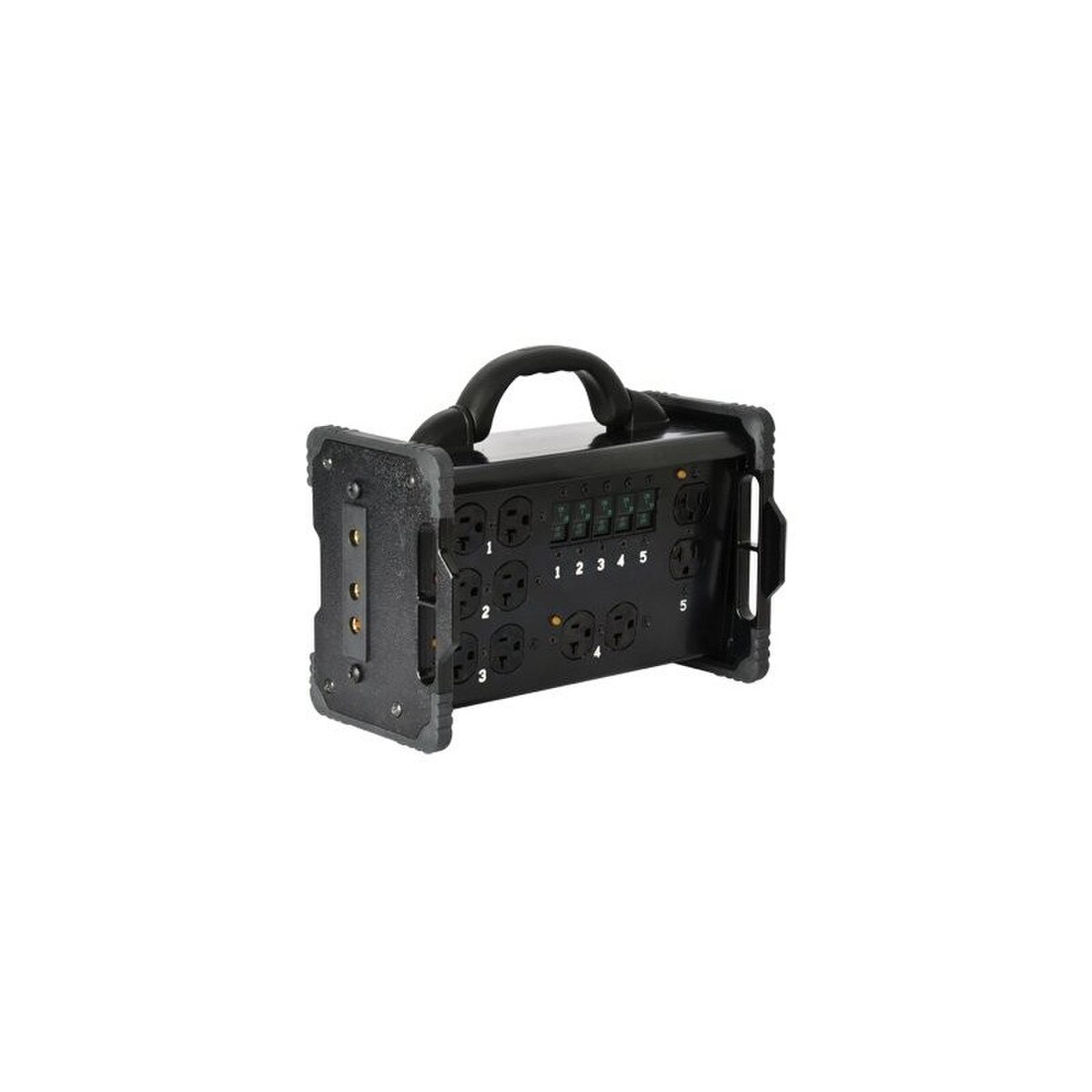

Lex 60 Amp Bento Box Lunchbox Feed Thru

(0)No Reviews yet
$1,125.73
SKU: Lex BNE2-5A

Add this item to get free shipping! (Motor Freight Excluded)

Details

Fed from larger power sources, this compact distribution unit provides 20 Amp duplex receptacles for smaller lights and related equipment. The feed thru feature allows multiple boxes to be placed along the same feed.

Features:

  • Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
  • Fit six in a standard six-gallon milk crate for ease of transport
  • Stackable and compact for easy storage and convenient portability
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces

Specifications

  • Rating: 60 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 60 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, stage pin inlet
  • Output: (5) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
  • Feed Thru: (1) 60 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, stage pin receptacle
  • Overcurrent Protection: (5) 20 Amp hydraulic magnetic branch-rated circuit breakers
  • Dimensions: 11.5" L x 5.9" W x 7.6" H
  • Approximate Weight: 7.5 lbs.

Specifications_Sheet_97179_File_1.pdf
