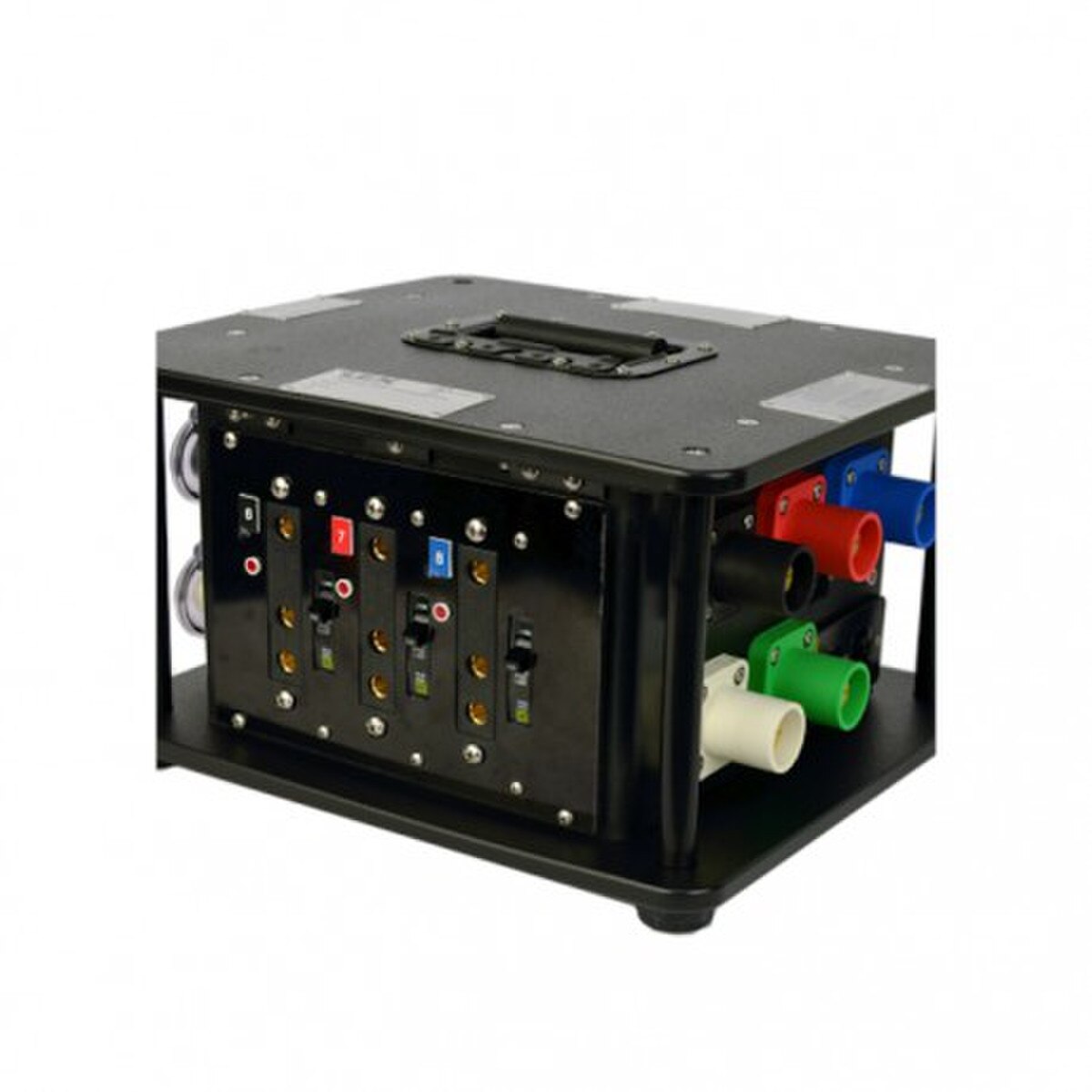

Lex 600 Amp CineBox

Provides 100 Amp stage pin receptacles for high power lighting effects or to distribute power further downstream. 5-20 Duplex receptacles provide convenient power for smaller lights. The feed thru feature allows multiple boxes to be placed along the same feed.

Features

• Stackable compact design for easy storage and portability
• Heavy-duty, non-conductive material construction is electrically insulated and resistant to shock, impact and corrosion
• Breakers are mounted for easy access and circuit identification
• Hydraulic magnetic breakers will not nuisance trip at higher temperatures

Specifications

• Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) set of (5) 16 Series Cam-type color-coded plugs, panel mount
• Output: (6) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin receptacles; (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
• Feed Thru: (1) set of (5) 16 Series Cam-type color-coded plugs, panel mount
• Overcurrent Protection: (6) 100 Amp, Single Pole branch-rated circuit breakers. (2) 20 Amp, Single Pole branch-rated circuit breakers
• Dimensions: 14.125” D x 16.25” W x 9.75” H
• Weight: 48.0 lbs
