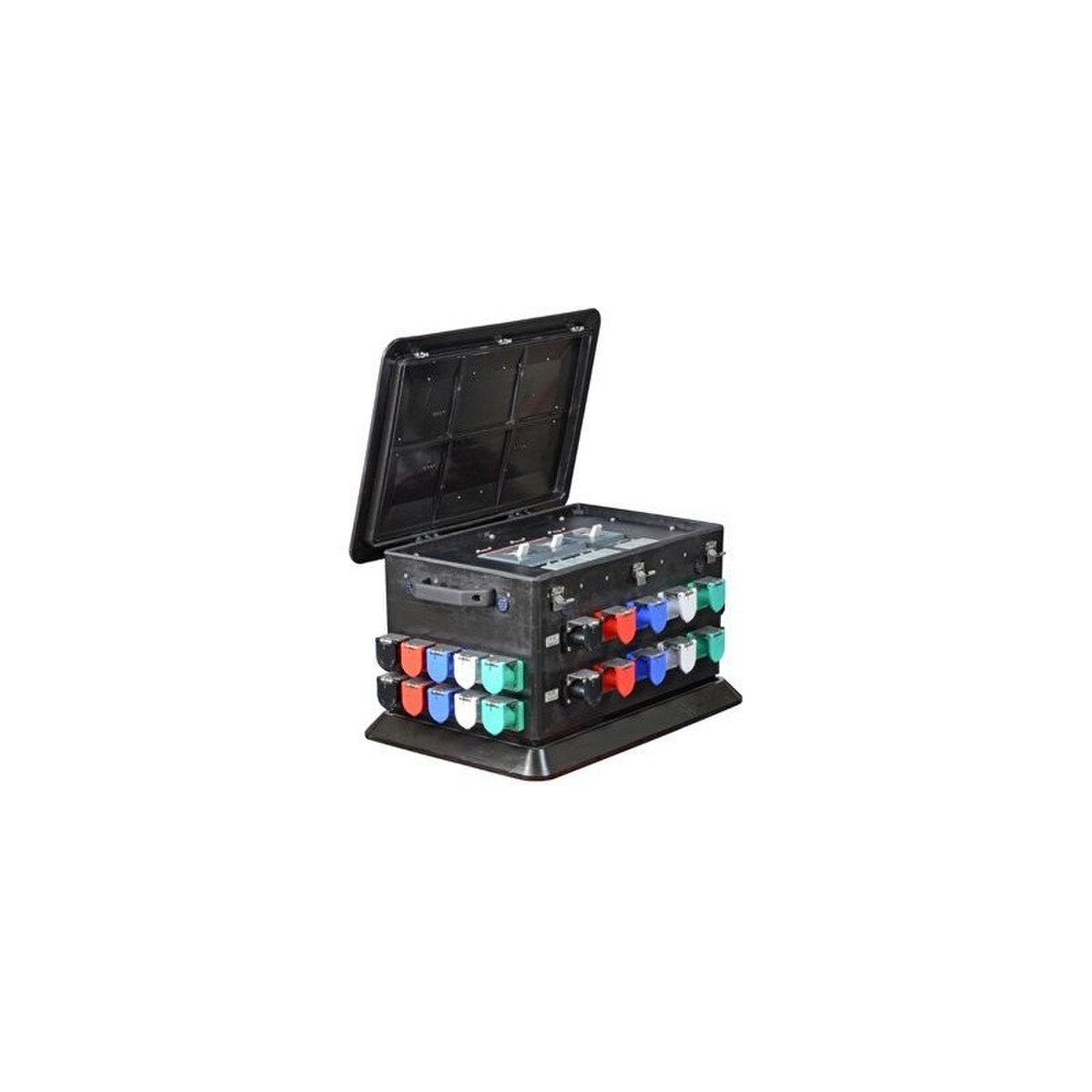

Lex 800 Amp Load Master with 3 Adjustable Output Circuits - Feed Thru
Details
The first portable power distribution box featuring outputs with adjustable current ratings to match the specific application load.
Typical applications for this product include installations requiring a main disconnect for a range of varying downstream electrical loads, such as portable kitchens, environmental control units, machinery, motors, tools and more. Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits. Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
Features:
800 Amp Load Master Data Sheet
Typical applications for this product include installations requiring a main disconnect for a range of varying downstream electrical loads, such as portable kitchens, environmental control units, machinery, motors, tools and more. Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits. Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
Features:
- Exceptional flexibility. The cULus Listed Load Master can handle a broad range of power distribution applications due to adjustable circuit breakers that enable overcurrent protection to be changed easily.
- The ability to adjust a circuit breaker’s trip rating to closely match a specific load ensures that the circuit breaker will trip when needed. This is useful in overload or short circuit situations.
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion.
- Easy to set up. Does not require on-site wiring by a licensed electrician.
- Unit is 2-man portable; no forklift needed.
- The adjustable electronic circuit breakers will not nuisance trip due to high ambient temperatures.
- Adjustable circuit breakers are mounted under a hinged lid for easy access and enhanced protection.
- Rating 800 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating TYPE 3R Rainproof
- Input (2) sets of (5) 16 Series Cam-type color-coded panel mount inlets
- Output (3) sets of (5) 16 Series Cam-type color-coded panel mount receptacles protected by adjustable circuit breakers Feed Thru (2) sets of (5) 16 Series Cam-type color-coded panel mount inlets
- Overcurrent Protection (1) 60-150 Amp electronic circuit breaker with adjustable settings (1) 100-250 Amp electronic circuit breaker with adjustable settings (1) 160-400 Amp electronic circuit breaker with adjustable settings
- Enclosure Power Station
- Dimensions 27.5" x 18.5" x 18"H
- Weight 167 lbs
