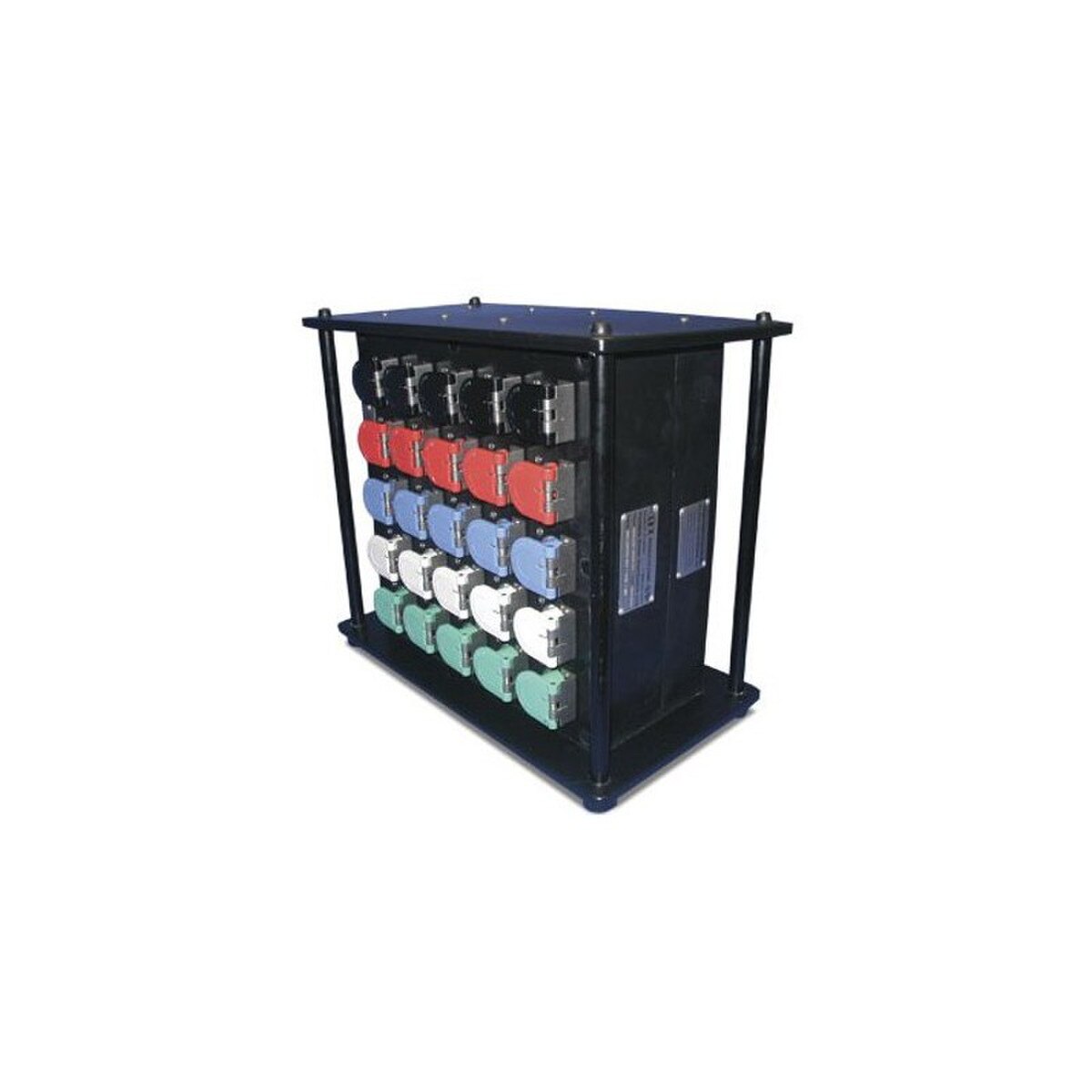

Lex Metal Enclosure 400A Splitter Box - Reverse Ground and Neutral
Details
Lex
Description:
400 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Turtle Enclosure, (1) set of (5) 16 Series Cam-type color-coded panel mount inlets to (5) sets of (5) 16 Series Cam-type color-coded panel mount outlets, NEMA 1 Indoor.
Typical Application:
This box is fed by a generator or panel and splits off five separate sets of 5 wire Cam-type receptacles. It allows multiple areas on a construction site or multiple film shots to be set up and used as needed over the course of a day. The runs are not used simultaneously and there is no overcurrent protection.
Features and Benefits:
- HDPE top, bottom and sides provide superior impact, weather and shock resistance
- Compact for convenient portability
- Safe and expedient means of distributing 400 Amp, 3 Phase Cam-type cable runs
Specifications
- Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) Set of (5) 16 Series Cam-type colorcoded panel mount inlets
- Output: (5) Sets of (5) 16 Series Cam-type colorcoded panel mount outlets
- Feed Thru: None
- Overcurrent Protection: None
- Dimensions: 20.5"L x 11"W x 18"H
- Approximate Weight: 56 lbs.
