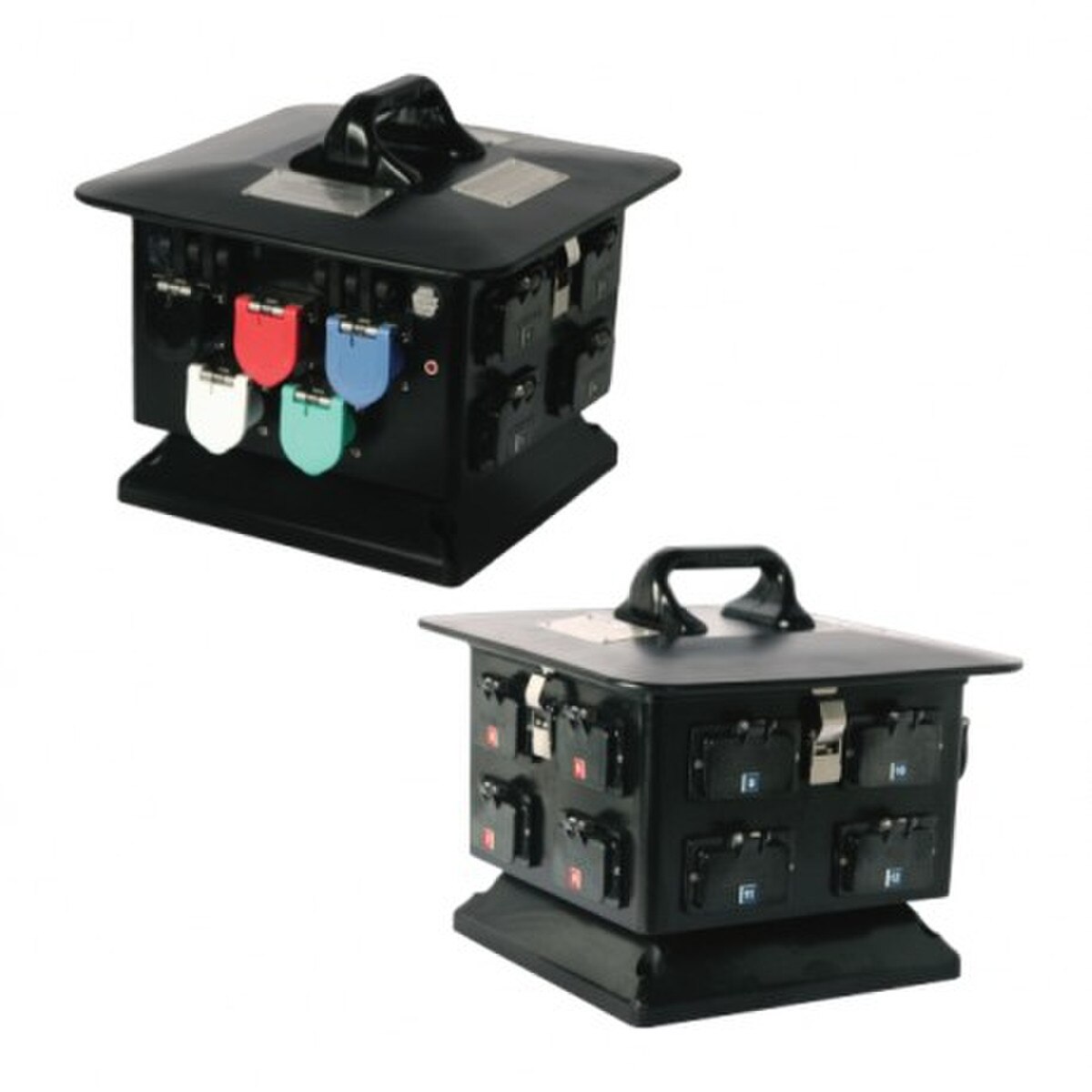

Lex Rubber Enclosure 100A 3 Phase Pagoda to (12) GFCI Duplex Receptacles - Weather Resistant

(0)No Reviews yet
$2,539.09
SKU: Lex DB100NP-AQQ-S3

Add this item to get free shipping! (Motor Freight Excluded)

Details

100 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Pagoda Enclosure, Cam-type color-coded panel mount inlets to (12) NEMA 5-20, 20 Amp GFCI duplex receptacles, NEMA 3R Weather Resistant.

The box is used where many NEMA 5-20, 20 Amp GFCI duplex receptacles are needed. Applications include powering light tools, lights, and computers.

Features:

  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, and corrosion
  • Breakers are mounted under hinged lid for enhanced safety
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level

Specifications:

  • Rating: 100 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 3R Weather Resistant
  • Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
  • Output: (12) NEMA 5-20, 20 Amp, GFCI duplex receptacles
  • Feed Thru: None
  • Overcurrent Protection: (12) 20 Amp, Single Pole branch-rated circuit breakers
  • Dimensions: 14.5"L x 14.5"W x 13"H
  • Approximate Weight: 33 lbs.
