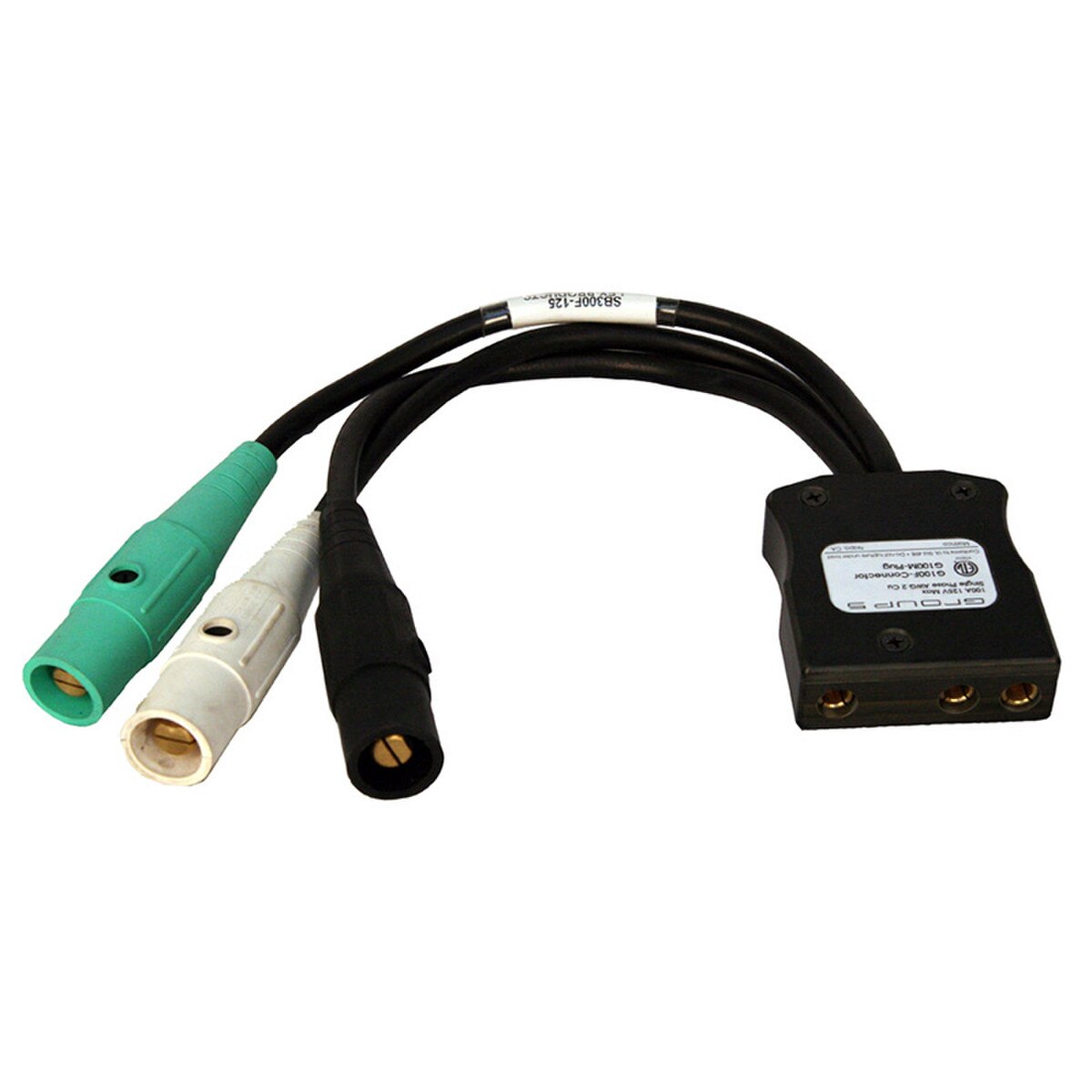

Lex SB300F-125 100A Pin 125V Female Stage Pin to Male Cam 2

Features:

• Allows high wattage 120 VAC motion picture lights to be plugged into Cam-type distribution
• Stage pin connectors machined from high temperature phenolic material
• Double set screw terminals for secure terminations

Specifications:

• Rating: 100 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
• Male Plug: (3) 16 Series, 400 Amp, single pole, single wire, 600 VAC, inline locking cam-type device, color-coded; black, white, green
• Cable/Cord: (3) #2 Type SC Black Cable
• Length: 2.0'
• Female Connector: (1) Marinco Stage Pin (Bates), 100 Amp, 2-pole, 3-wire, 125 VAC, inline cylindrical contact device, black
• Weight: 8.0 lbs

Specifications_Sheet_97212_File_1.pdf
