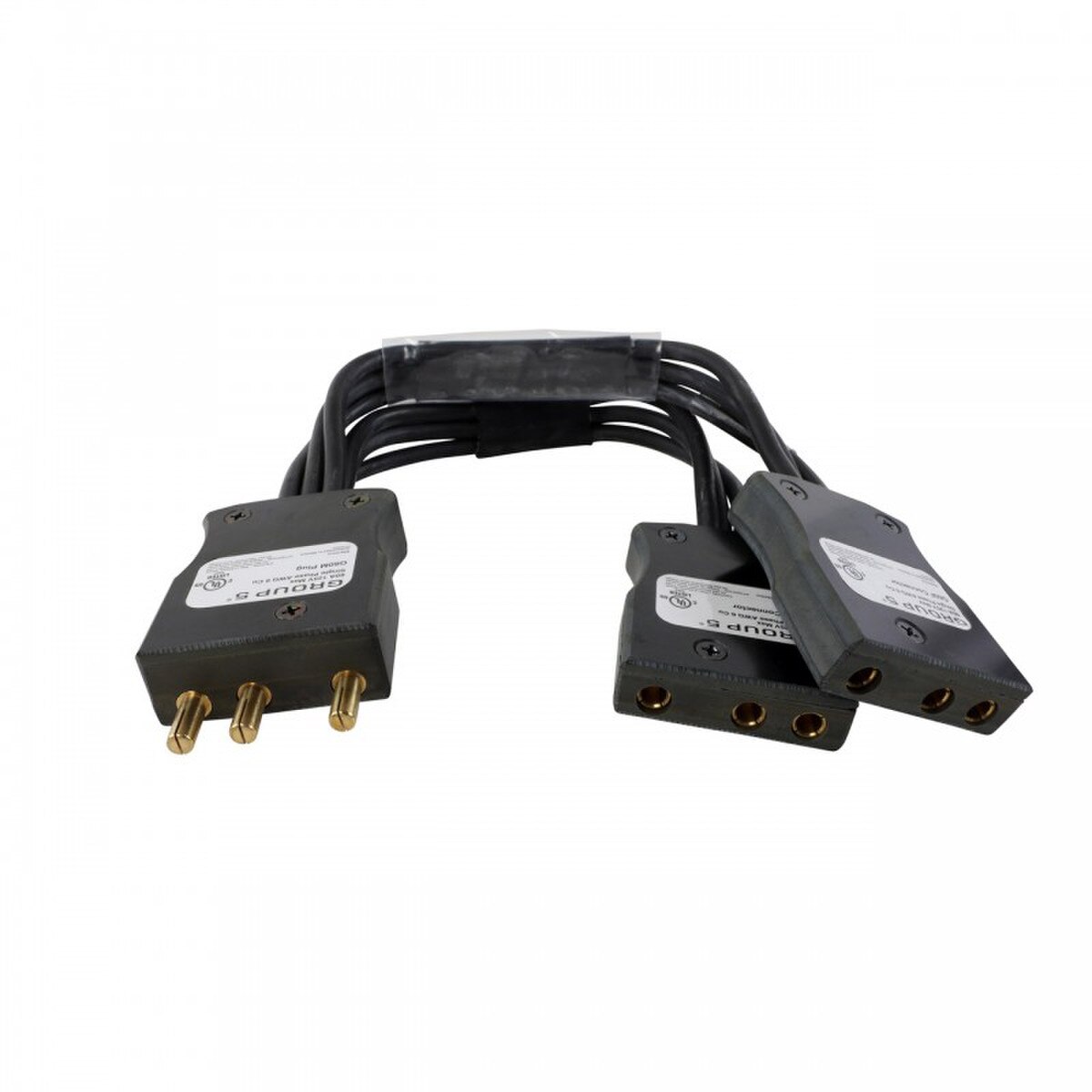

Lex SP60-60 60 Amp Stage Pin Splitter

Stage pin splitters break out a single stage pin plug into two connectors. Splitters should never be used to pull a load greater than 60 Amps.

Features:

• Splitters are made with single conductor type SC cable
• Splitters feature stage pin connectors machined from high temperature phenolic material
• Double set screw terminals for secure terminations
• Stage pin connectors are ETL Listed

Specifications:

• Brand: Lex PowerFLEX™
• Part Number: SP60-60
• Rating: 60 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
• Male Plug: (1) Marinco Stage Pin (Bates), 60 Amp, 2-pole, 3-wire, 125 VAC inlet, inline cylindrical contact device, black
• Cable/Cord: (6) #6 Type SC Black Cable
• Length: 2.0'
• Female Connector: (2) Hubbell Stage Pin (Bates), 60 Amp, 2-pole, 3-wire, 125 VAC, inline cylindrical contact device, black
• Weight: 8.0 lbs
