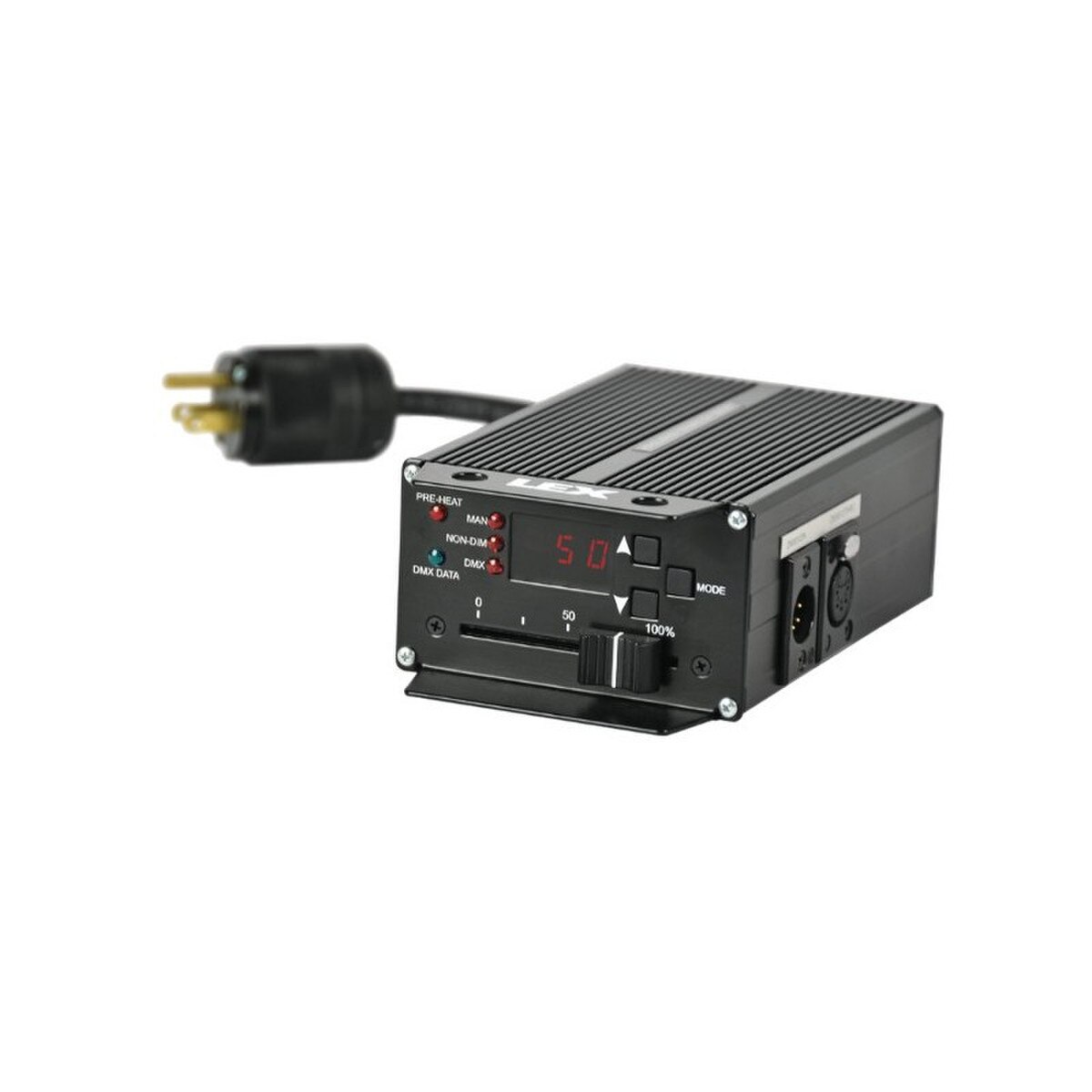

Lex Slim Dimmer Plus 1800W
Details
Use one or more Slim Dimmer Plus to balance location lighting or to dim entertainment lighting. Can also be used in situations where "one more dimmer" is needed.
Specifications_Sheet_98267_File_1.pdf
Features:
- Controllable using either DMX512 or a front panel fader for maximum versatility
- Large display showing dimmer level and DMX address for easy setup
- Durable, compact construction for long life and relaibility
- Easily hangable with a variety of hanging options
- Can be configured as a DMX controlled electronic non-dim to remotely switch loads on and off
Specifications:
- Rating: 15 Amp, 120 VAC, Single Phase, 60 Hz, 2 Pole, 3 Wire
- Input: 5-15 (Edison) on an 18" 12/3 SO cable
- Output: NEMA 5-15 (Edison) receptacle
- Maximum Load 1800 Watt
- Minimum Load: 60 Watt
- Overcurrent Protection: 15 Amp push to reset breaker
- Overall Dimensions (L x W x H): 7.3" x 4.15" x 2.5"
- Weight: 2.1 lbs.
