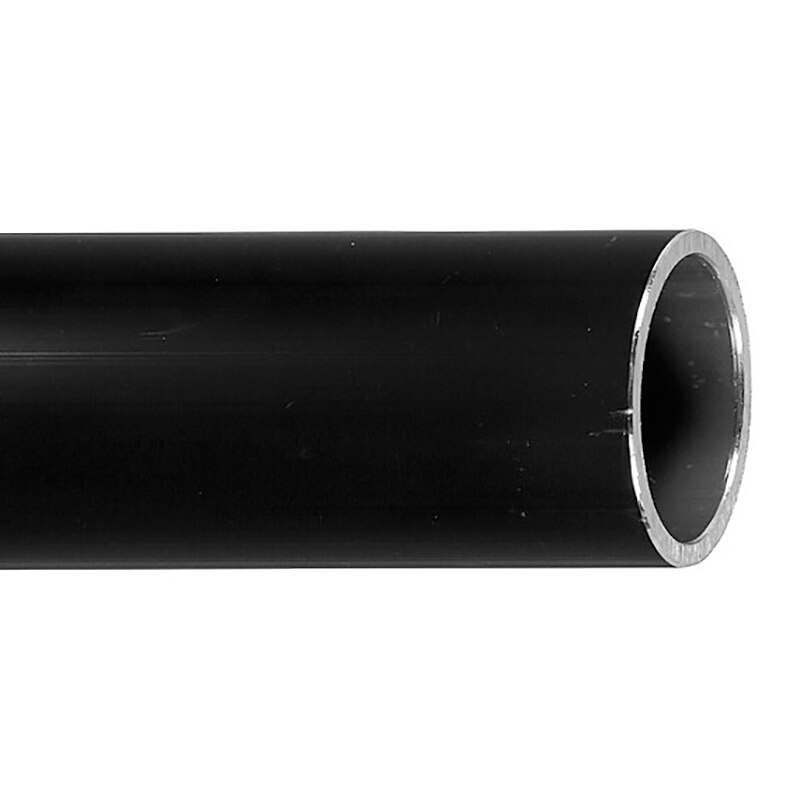

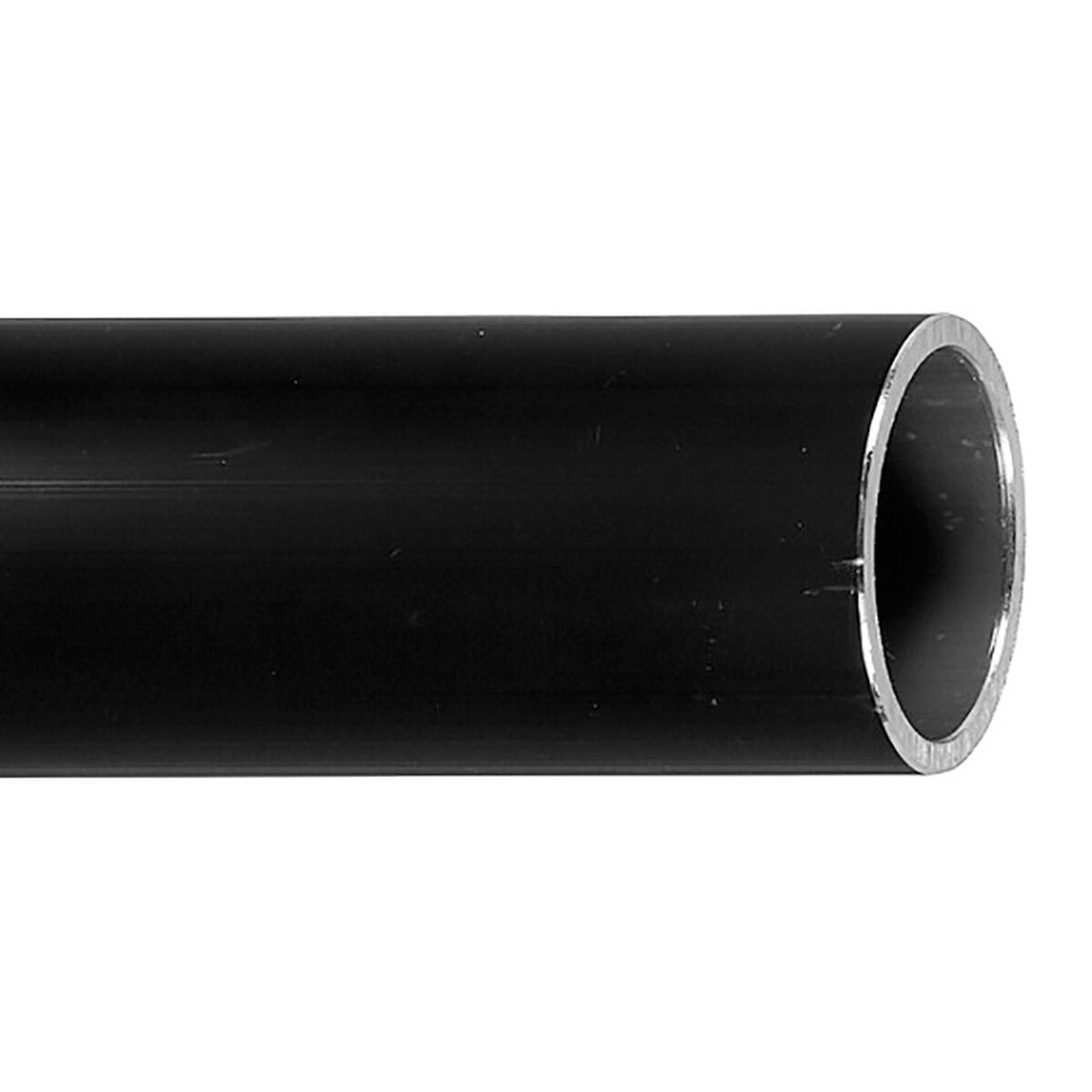

Light Source 1.5in Schedule 80 Pipe - 20ft - Black Anodized

Light Source 1.5in Schedule 80 Pipe - 20ft - Black Anodized

The pipe is made of 6061-T6 Aluminum alloy and has a minimum yield strength of 37,000 pounds and a minimum ultimate tensile strength of 40,000 pounds per square inch. Aluminum pipe is approximately one third the weight of steel pipe, greatly reducing the structural load on your building.

1.5 Inch Schedule 80 Pipe has a 1.9" outside diameter with a wall thickness of 0.2". The inside diameter is 1.5". It weighs 1.26 pounds per foot.

Light Source Standard Aluminum Grid Pipe Specifications.pdf
Light Source Pipe and Tube Sizing Chart.pdf
