Light Source 12 Inch Mega-Truss Pick - 1 Ton - Black Anodized
Details

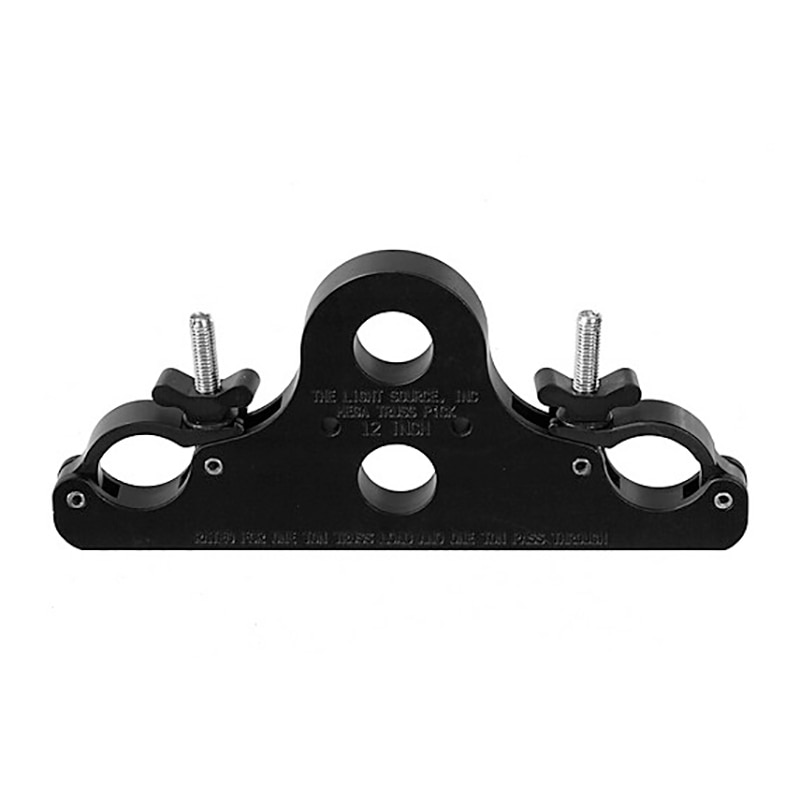

The Mega-Truss Pick is CNC machined from solid 1" 6061 T-6 aluminum billet. Two pockets cut into the Mega-Truss Pick have coupler style aluminum pivoting links, half inch swivel bolts, and our solid wing nuts to completely wrap around the truss tube to secure it.
Quick_Reference_Guide_4394_File_1.pdf
The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook.
The Mega-Truss Pick will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss.
Please note that these do not fit a Global Truss.
Specifications:
- Safe Vertical Working Load: 1 ton truss / 2 ton total
- Hardware: 1/2"-13 tpi steel swivel eyebolts, with solid aluminum wing nuts
- Dimensions:
- 1" thick x 6" tall x 13-3/8" long
- Single Hole: 5/8" wide
Quick_Reference_Guide_4394_File_1.pdf
