  • Light Source 16in. Mega Beam Clamp - 3 Ton - Black Anodized - Light Source MBC3T-16B

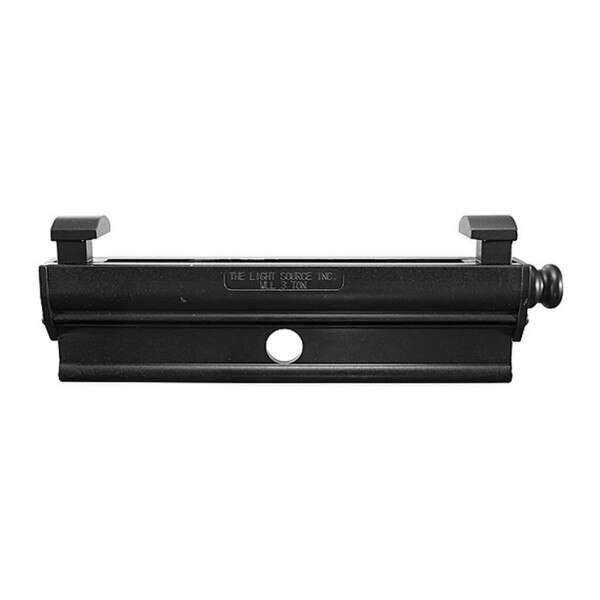

Light Source 16in. Mega Beam Clamp - 3 Ton - Black Anodized - Light Source MBC3T-16B

(0)No Reviews yet
$445.42
QuantityPrice
1 – 11$445.42
12 – 23$423.15
24 – 35$412.01
36 – 47$400.88
48 +$389.74
SKU: Light Source MBC3T-16B

Add this item to get free shipping! (Motor Freight Excluded)

Details

The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 16" model has a 3 ton rating. The two aircraft aluminum jaws are adjusted on the 3/4"-6" tip Acme threaded shaft. The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.

Fastens from 2 inch to 16 inch wide I-Beam flanges up to 1" thick. Center hole is 1-1/2"


Specifications:

  • Safe Vertical Working Load: 6000 lbs (2720 kg)
  • Dimensions: 23" L x 7.5" T x 2.5" W
  • Weight: 15.12 lbs

Spec_Sheet_4409_File_1.pdf
Quick_Reference_Guide_4394_File_1.pdf
