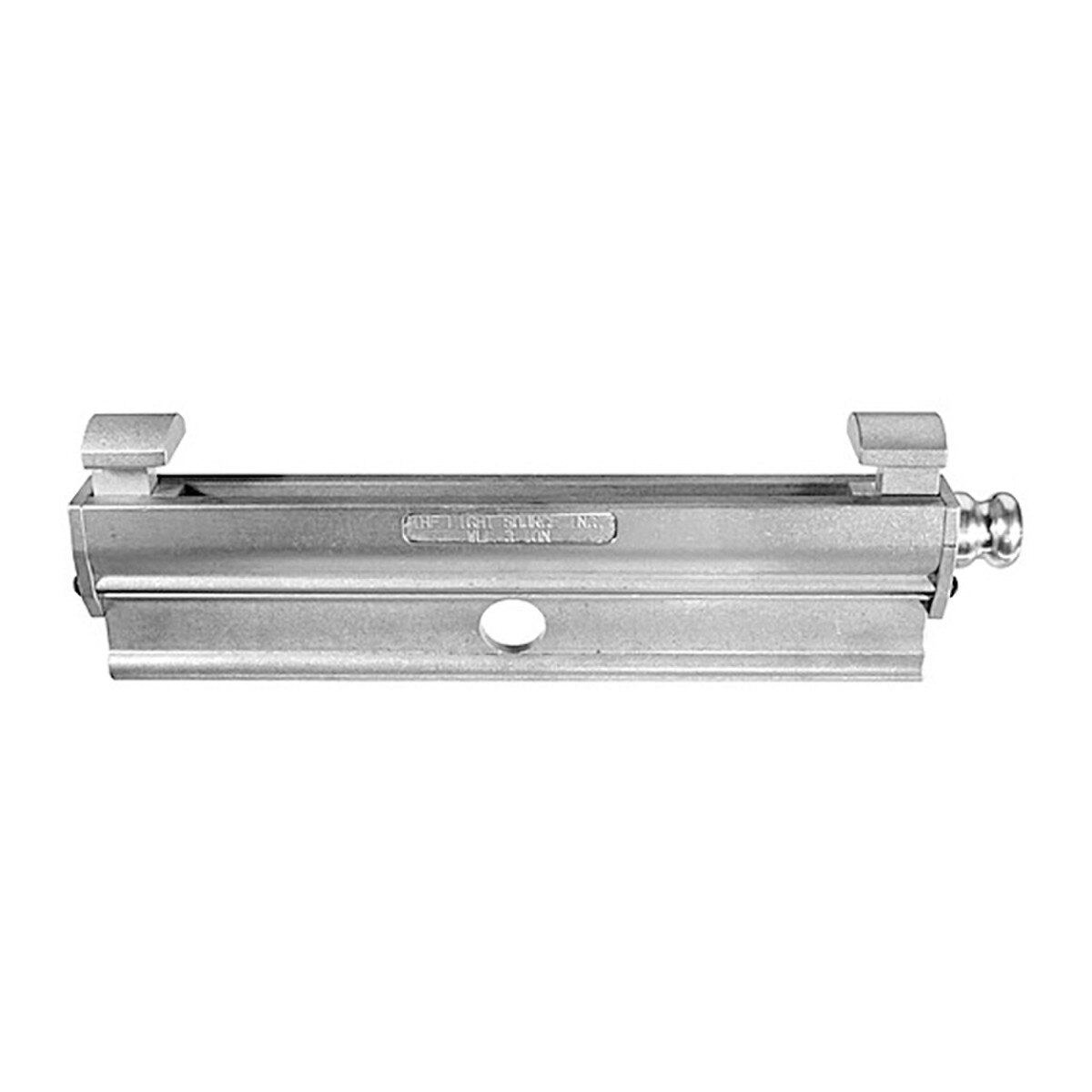

Light Source 16in Mega-Beam Clamp - Silver

The Mega-Beam Clamp is a low profile, sliding jaw design that allows the load to be secured as closely as possible to the I-beam. The 16" model is load rated for 2 tons.

Two aircraft aluminum jaws are adjusted on the 3/4"-6 TPI Acme threaded shaft. The spring loaded handle locks after adjustment. The center hole is 1 1/2".

The 16" Mega-Beam Clamp fastens from 2" to 16" wide on I-beam flanges up to 1" thick. For I-beam flanges up to 2" thick, Mega-Beam Clamps are available with 2" jaws. The 2" jaws may also be purchased separately.

The aluminum construction is half the weight of steel units and has a wider gripping range.

The Mega-Beam Clamp can be used for both permanent and temporary installations.

Working Load Limit:

• 4000 lbs / 1818 kg

Dimensions:

• 22.5" L x 7.5" T x 2.75" W; Center Hole - 1 1/2"

Weight:

• 15.20 lb
