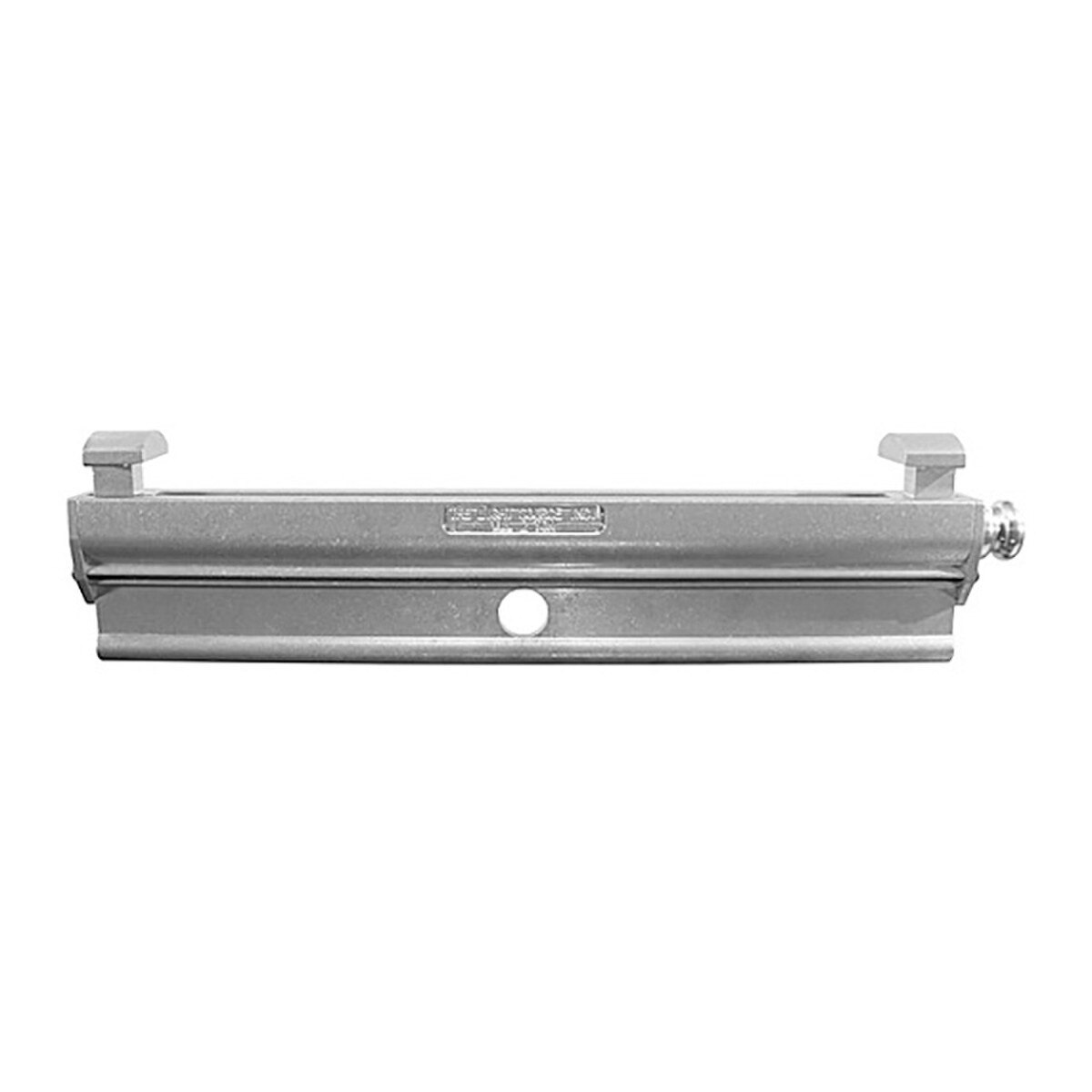

Light Source 24in. Mega Beam Clamp - 2 Ton - Aluminum Finish
Details
The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 24" model has a 2 ton rating. The two aircraft aluminum jaws are adjusted on the 3/4"-6" tip Acme threaded shaft.
The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.
The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.
Fastens from 2 inch to 24 inch wide I-Beam flanges up to 1" thick. Center hole is 1-1/2"
Specifications:
- Safe Vertical Working Load: 6000 lbs (2720 kg)
- Dimensions: 23" L x 7.5" T x 2.5" W
- Weight: 15.12 lbs
