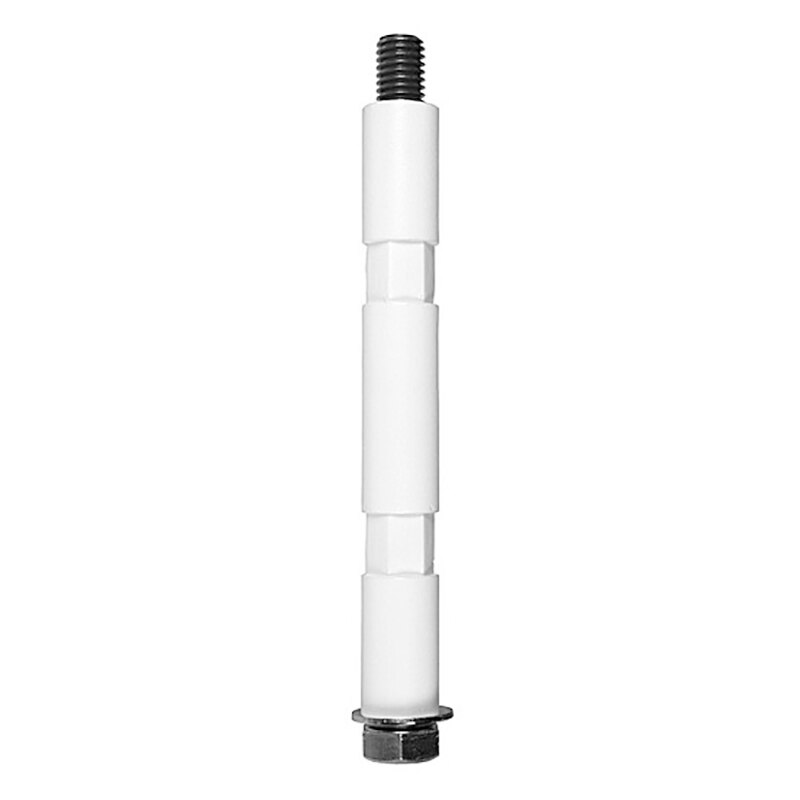

Light Source 6in Mega-Drop Down - White Powder Coat

The Mega-Drop Down is a quick and inexpensive way to place a light fixture below the pipe or grid. It now has new wrench flats for easy adjustments.

The Mega-Drop Down is made from solid 3/4" diameter 6061 T-6 aircraft grade aluminum and is made in 6", 9", 12", 18" 24", and 36" lengths. The Mega-Drop Down has a 1/2-13 tpi x 2" steel stud to fasten into a Mega-Clamp, or similar clamp that has 1/2"-13 female threads. The lower end of the Mega-Drop Down has 1/2-13 female threads to bolt the light fixture's yoke to the drop down with a 1/2-13 x 1" grade 5 zinc plated bolt and Belleville washer. When assembling the Drop down to the Mega-Clamp, use Loctite Red or other permanent thread-locking compound to make the connection secure.

Working Load Limit:

• 600 Pounds

Hardware:

• 1/2-13 tpi x 2" Steel stud to fasten into a Mega-Clamp. 1/2"-13 x 1" grade 5 hex head zinc plated cap screw with our Belleville washer

Dimensions:

• 3/4" Diameter x 6"

Light Source MDDW6 Specifications.pdf
