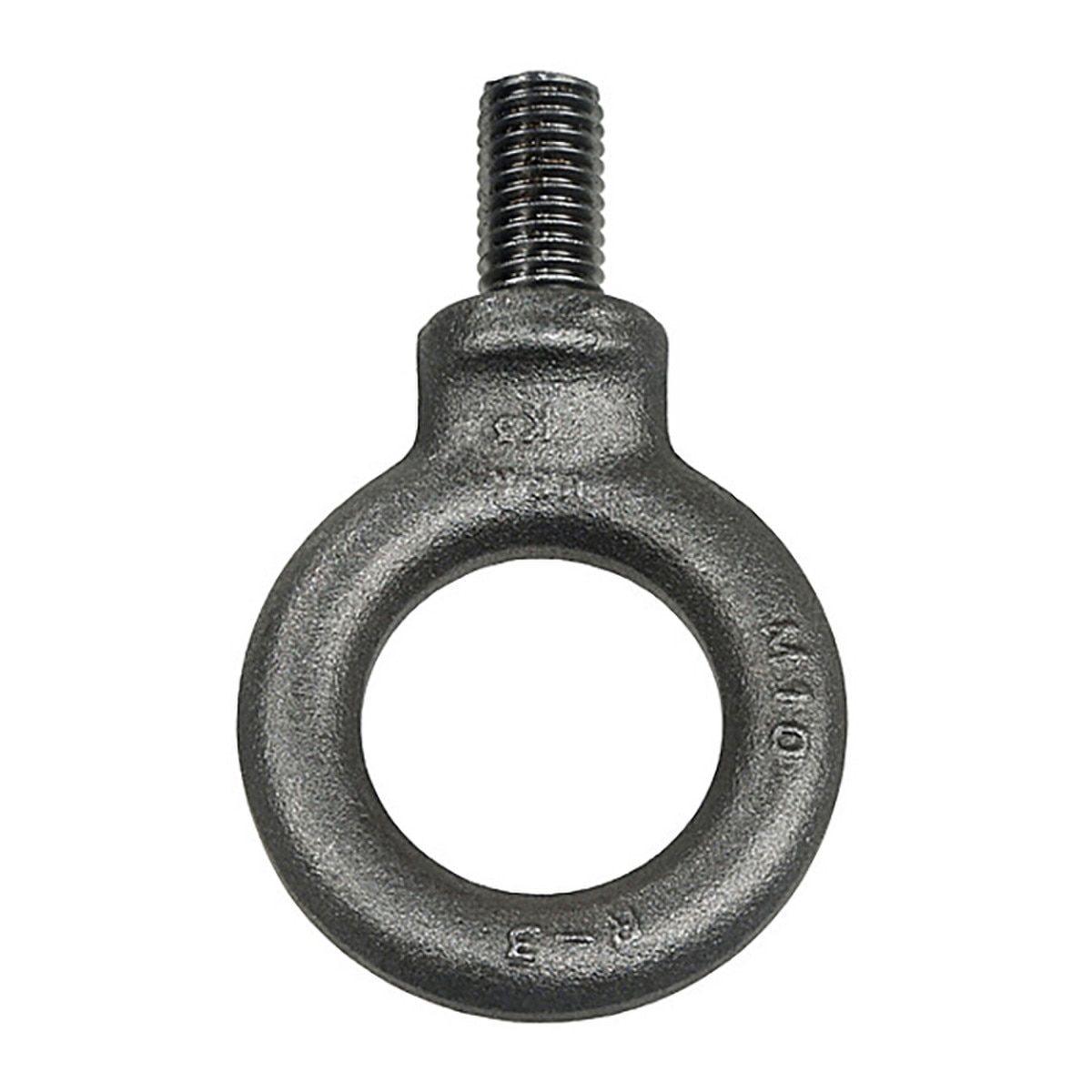

Light Source M10-1.5 x 20mm Eye Bolt APL

(0)No Reviews yet
$12.15
SKU: Light Source EB M10-1.5x20mm

Details

The M10 x 20 shoulder eye bolt is perfect for hanging most metric hardware speakers.


Manufactured in the USA of drop forged carbon steel, it has a M10 - 1.5 ISO coarse threaded 6 g stud.


The eye opening is 27 mm ID. The OD of the eye ring is 46 mm, with a 9.5 mm thickness.


Recommended for in-line pull, the rated straight pull capacity is 1628 pounds, or 740 kgs.


The M10 eye bolt is similar in size to a 7/16 inch eye bolt.

Working Load Limit:

  • 1628 Lbs./740 kgs

Light Source M10 x 20mm Spec Sheet.pdf
