Light Source M140 Track Splice - Aluminum Finish

(0)No Reviews yet
$11.95
QuantityPrice
1 – 11$11.95
12 – 23$11.35
24 – 35$11.05
36 – 47$10.76
48 +$10.46
SKU: Light Source M140TSM

Details

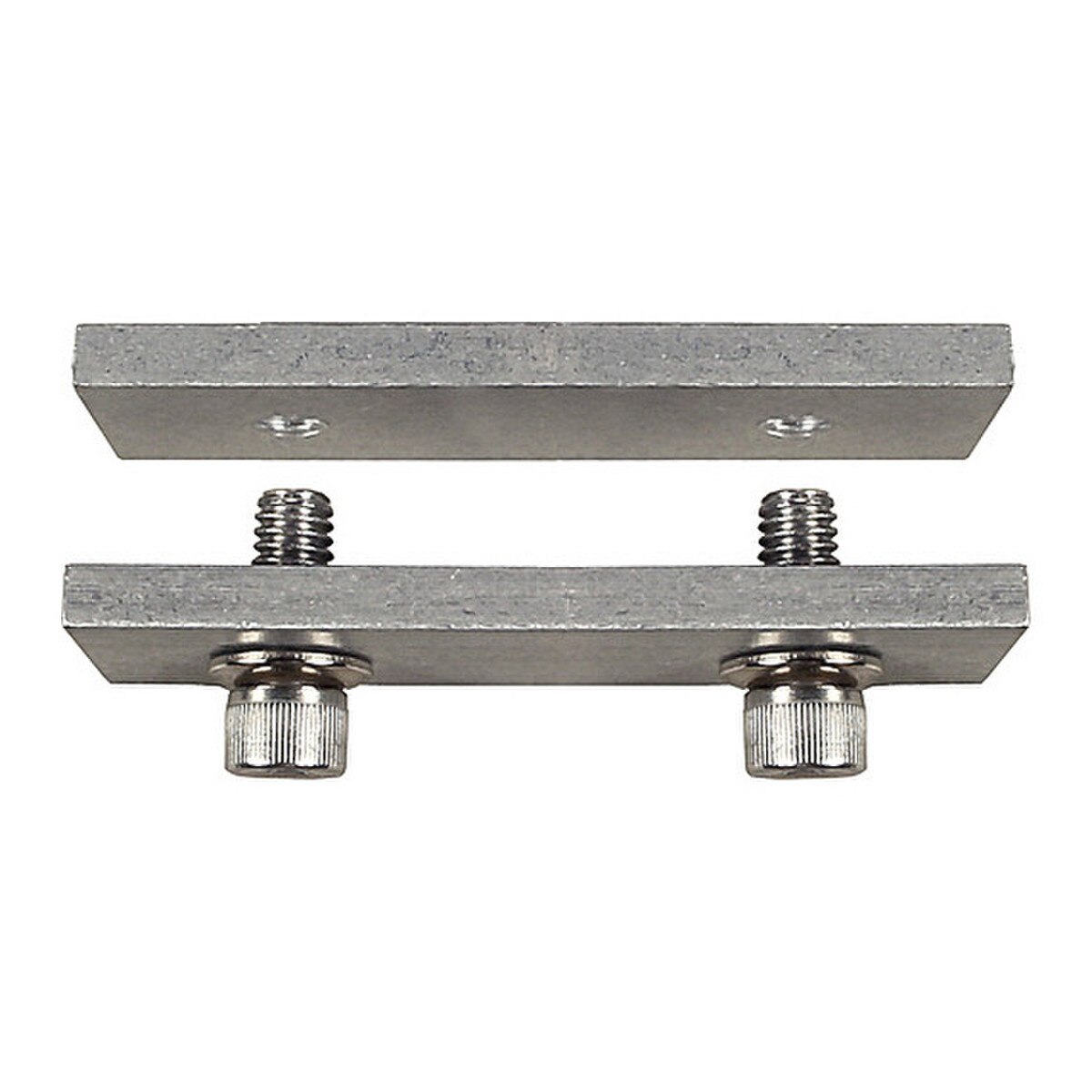

The M140 Track Splice is made of two 1/4"  1"  3 1/2" aluminum bars designed to fit into the upper of the walk along style tracks. The rear splice bar is drilled and tapped at the factory, so no nuts or wrenches are required for installation. The front bar has matching holes for the fasteners to fit through.

Punch both tracks with the M140 punch. Loosely fasten one side of the splice. Slide the tracks together and align the tracks vertically. Securely tighten the socket head cap screws until the Belleville washers are flattened, using a 1/4" hex key driver.

Quickly and efficiently join walk along track pieces together using the M140 Track Splice and Light Source's M140 Punch. The M140 Punch places the punch die in the exact location required by sliding the slot in the punch into the end of the top rail of the track until the track and punch meet firmly.

Then squeeze the handles together to punch the hole. Repeat on the other piece of track. This can be performed on the ground or in the grid. The handheld and operated punch effortlessly provides more than a ton of punching force.

The M140 track with a M140 track Splice properly installed did not flex with over a 600 pound load placed directly on top of the splice.

The M140 Track Splice fits the M140 track, ADC 140 track, and H&H 300 track.

Specifications:

  • Safe Vertical Working Load: 250 lbs
  • Hardware:
  • Two 5/16" socket head cap screws with Belleville washers
  • Uses 1/4" hex key driver
  • Dimensions: 1" x 3.5" x  3/4"
  • Weight: 0.2 lbs

Quick_Reference_Guide_4394_File_1.pdf
