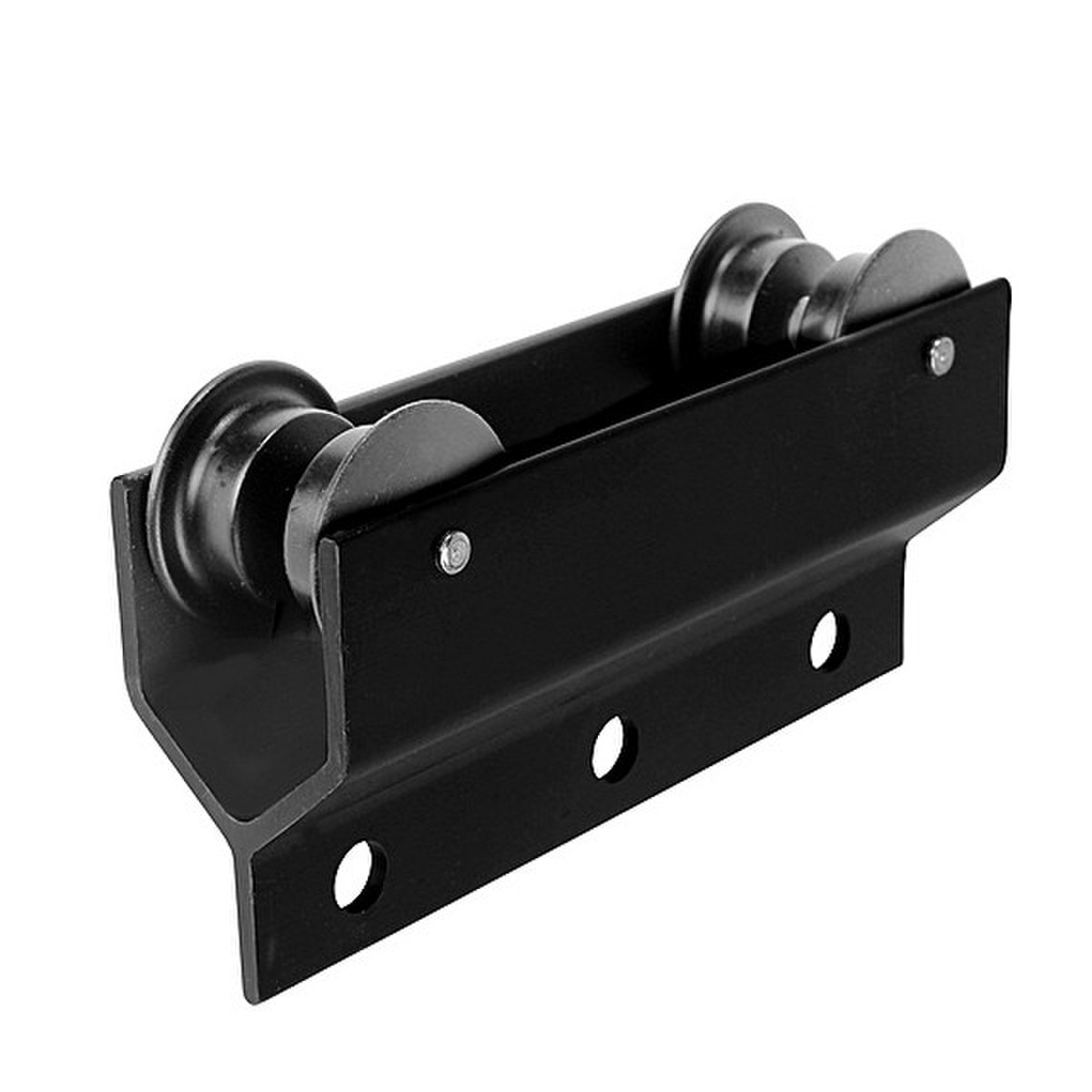

Light Source Master Carrier - Black Anodized

The M-140 Master Carrier is self guiding with the flanged wheel design. The 4 rollers are made of Delrin, an engineered plastic with excellent properties for use as bearings. The steel axle is machined to a 30 micron finish for smooth rolling under load. The 5.5" long body is made of 1/8" thick 6061T-6 aluminum alloy. It has three 3/8" diameter holes on 2" centers for attaching s-hooks or trim chains. Attachment holes are 1.5" below the bottom of the track, and 4" below the top of the track.

Specifications:

• Safe Vertical Working Load: 50 lbs
• Dimensions: 5.5" Long x 1.7" Wide x 3.08" Tall
• Weight: 0.45 lbs
