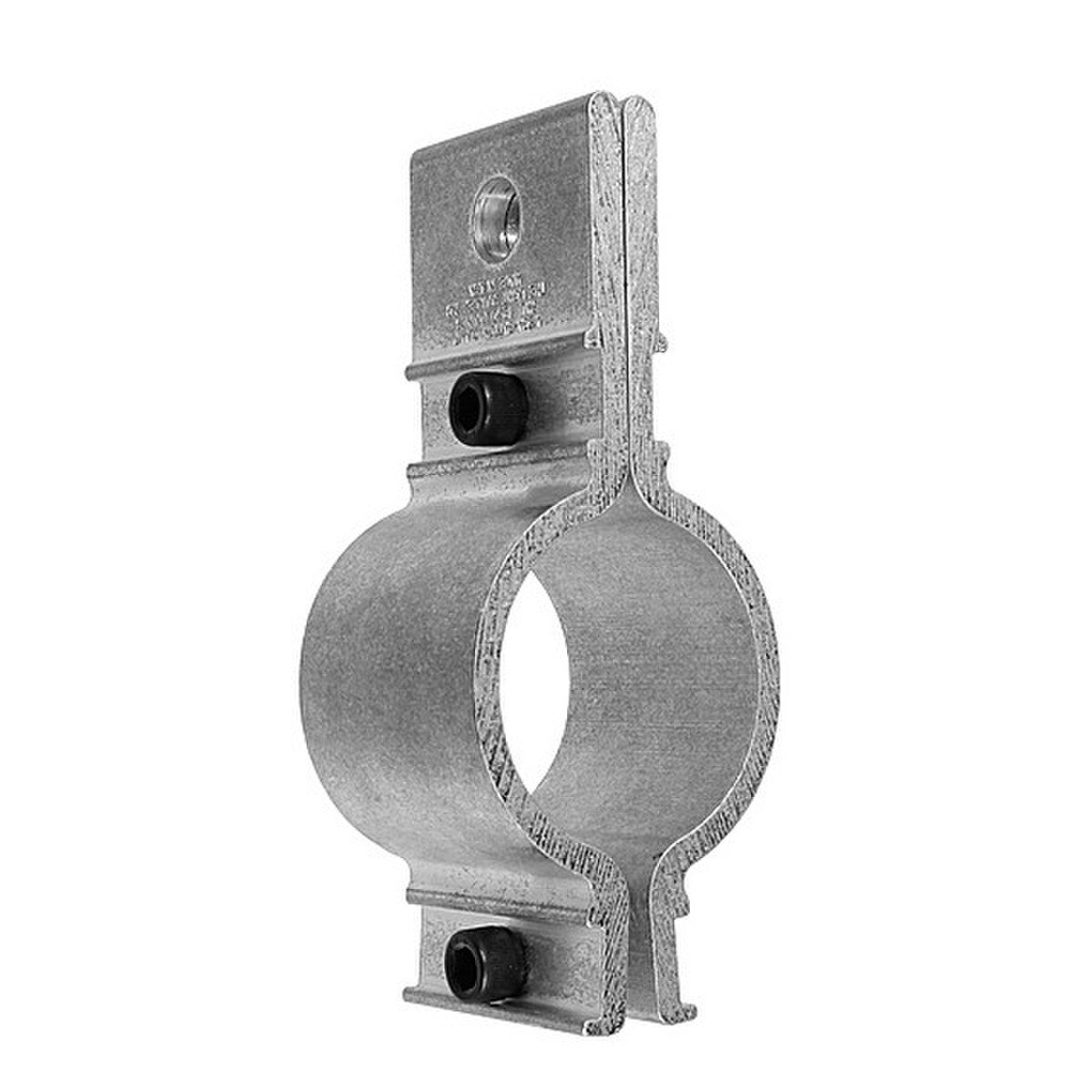

Light Source Mega-Batten Clamp - Aluminum Finish
Details
The two-piece, Mega Batten Clamp is great way to hang 1-1/2" pipe. The tight compression fit keeps pipe from rotating within the clamp.
The Mega Batten Clamp wraps around the pipe batten on both sides and fastens with two 5/16"-18 TPI Socket Cap Screws using a 1/4" hex driver. Secure to structural supports through nominal 1/2" hole at top of clamp with up to a 1/2" shackle pin, quick link, or turnbuckle jaw.
CNC Machined 3/16" thick x 2" wide 6061T-6 Aluminum.
Specifications:
- Minimum Size: 1.5" Pipe, 1.9" OD Pipe
- Maximum Size: 2" OD Pipe
- Safe Vertical Working Load: 1250 pounds
- Hardware: 1"x 5/16" socket head cap bolt, 5/16" zinc plated nylon hexbolt
- Dimensions: 5.5" tall x 2" wide x 1/4" thick
- Weight: .55 pounds
- Case Quantities: 48
