Light Source Mega Clamp - Black Anodized - Light Source MAB

(0) No Reviews yet
1 – 11$15.18
12 – 23$14.42
24 – 35$14.04
36 – 47$13.66
48 +$13.28
SKU: Light Source MAB

If you add this item, you're only $134 away from free shipping! (Motor Freight Excluded)

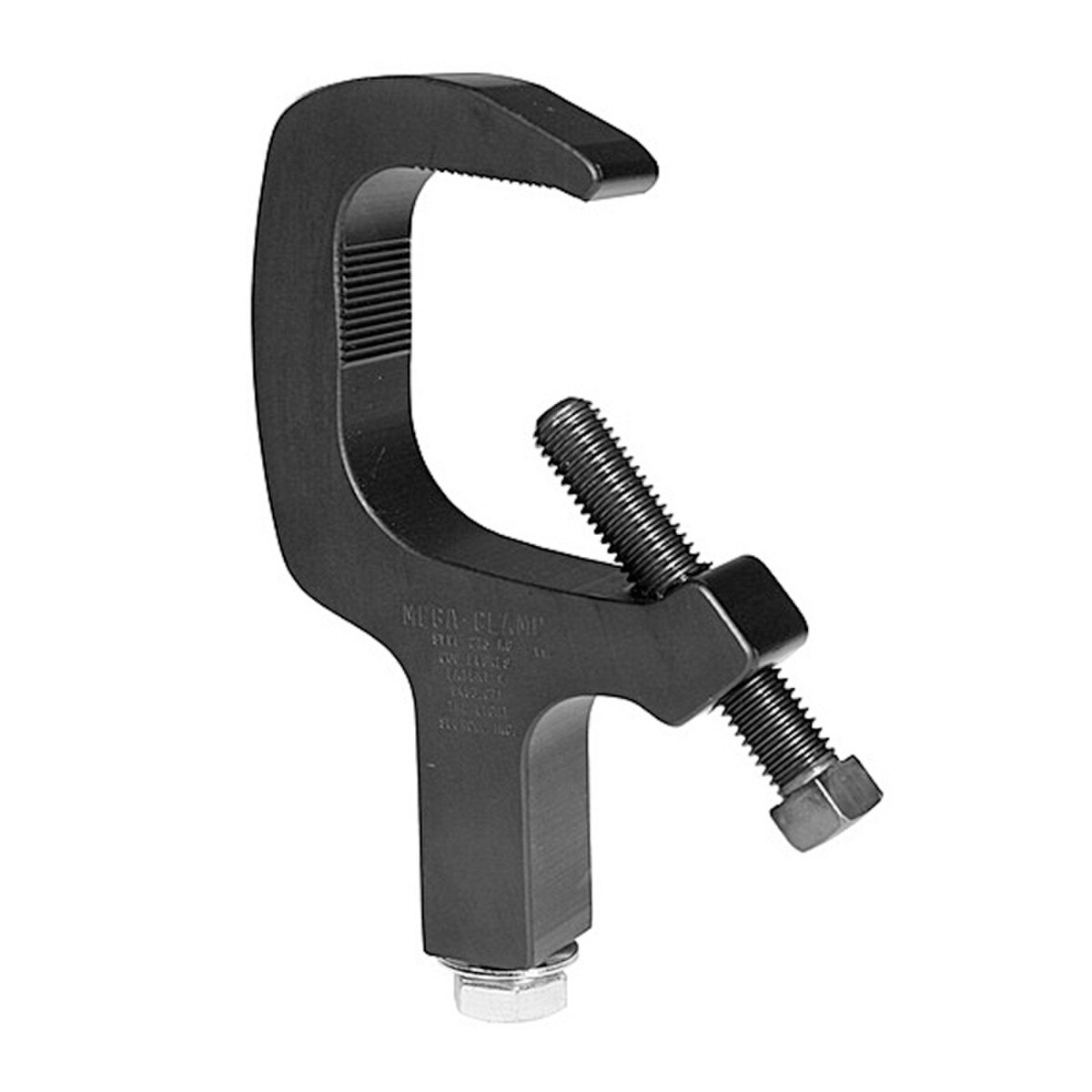

The Mega-Clamp is the world’s new standard theatrical lighting C-Clamp. The Mega-Clampis created from high tensile, aircraft grade extruded aluminum, so it’s both stronger and lighter than cast iron clamps. The Mega-Clamp’s safety factor far exceeds industry standards, breaking at over 2-1/2 tons at an independent testing laboratory. It is half the weight, and twice as strong as most cast iron clamps.

The Mega-clamp, in 1993, introduced to the industry the one piece solid aluminum clamp body, micro grooves to grip the pipe securely, and the spring loaded pan adjustment. The solid one piece clamp body is designed to grip pipe with it’s micro grooves, and will not “rock” when making adjustments to the light fixture.

The Belleville spring washer has 600 lbs of spring load when compressed. This spring pressure keeps the fixture from drifting after making small pan adjustments to the light fixture. Just grab the fixture by the top of the yoke and twist to pan the fixture.

Usually, you will not need to pull out your wrench to tighten the pan bolt, the fixture will stay securely held. The Mega-Clamp fits from 1" pipe to 2" pipe sizes (1-1/4" OD to 2.375" OD tubes.) This means you can hang fixtures from a 2" pipe without having to buy a special, expensive “Heavy Duty" clamp. TheMega-Clamp fits the larger pipe, standard.


  • Safe Vertical Working Load: 600 lbs (273 kg)
  • Minimum Size: 1" pipe, 1.315" OD
  • Maximum Size: 2" pipe, 2.375" OD


  • 1/2" × 1" long hex head Grade 5 zinc bolt
  • 1/2" × 3" long square head set screw
  • Belleville spring washer
  • Dimensions: 5.875" tall x 3.675" wide x 1" thick
  • Weight: 13.4 oz
