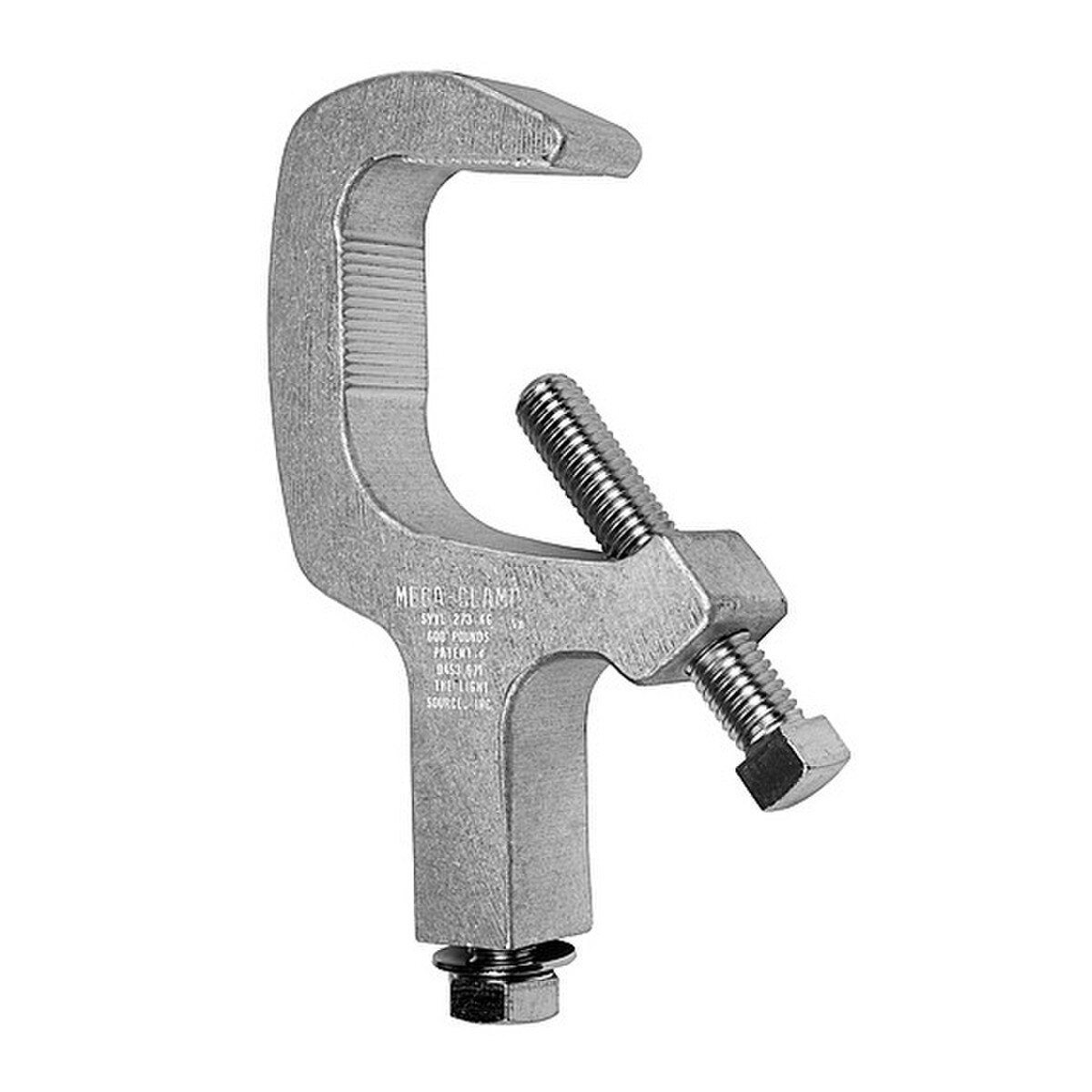

Light Source Mega Clamp with Stainless Steel Hardware - Aluminum Finish - Light Source MAMS
Details
The Mega-clamp, in 1993, introduced to the industry the one piece solid aluminum clamp body, micro grooves to grip the pipe securely, and the spring loaded pan adjustment. The solid one piece clamp body is designed to grip pipe with its micro grooves, and will not rocks when making adjustments to the light fixture. The Belleville spring washer has 600 lbs of spring load when compressed.
This spring pressure keeps the fixture from drifting after making small pan adjustments to the light fixture. Just grab the fixture by the top of the yoke and twist to pan the fixture. Usually, you will not need to pull out your wrench to tighten the pan bolt, the fixture will stay securely held. The Mega-Clamp fits from 1" pipe to 2" pipe sizes (1-1/4" OD to 2.375" OD tubes.) This means you can hang fixtures from a 2" pipe without having to buy a special, expensive, Heavy Duty Clamp. The Mega-Clamp fits the larger pipe, standard.
Specifications:
- Safe Vertical Working Load: 600 lb (273 kg)
- Minimum Size: 1" pipe, 1.315" OD
- Maximum Size: 2" pipe, 2.375" OD
- Hardware:
- 1/2" x1" long hex head stainless steel bolt
- 1/2" x 3" long square head set screw
- Belleville spring washer
- Dimensions: 5.875" tall x 3.675" wide x 1" thick
- Weight: 13.4 oz
