Light Source Mega-Coupler Pipe Adapter for 1 1/2in. Pipe - Black Anodized - Light Source MP1.5B.5B
Details
The Pipe to Coupler Adapter can be used to rig pipe mounted plasma screens, projectors and speakers from overhead pipe or truss. Special versions are available with cable holes through the side to run power and signal cables inside the vertical pipe.

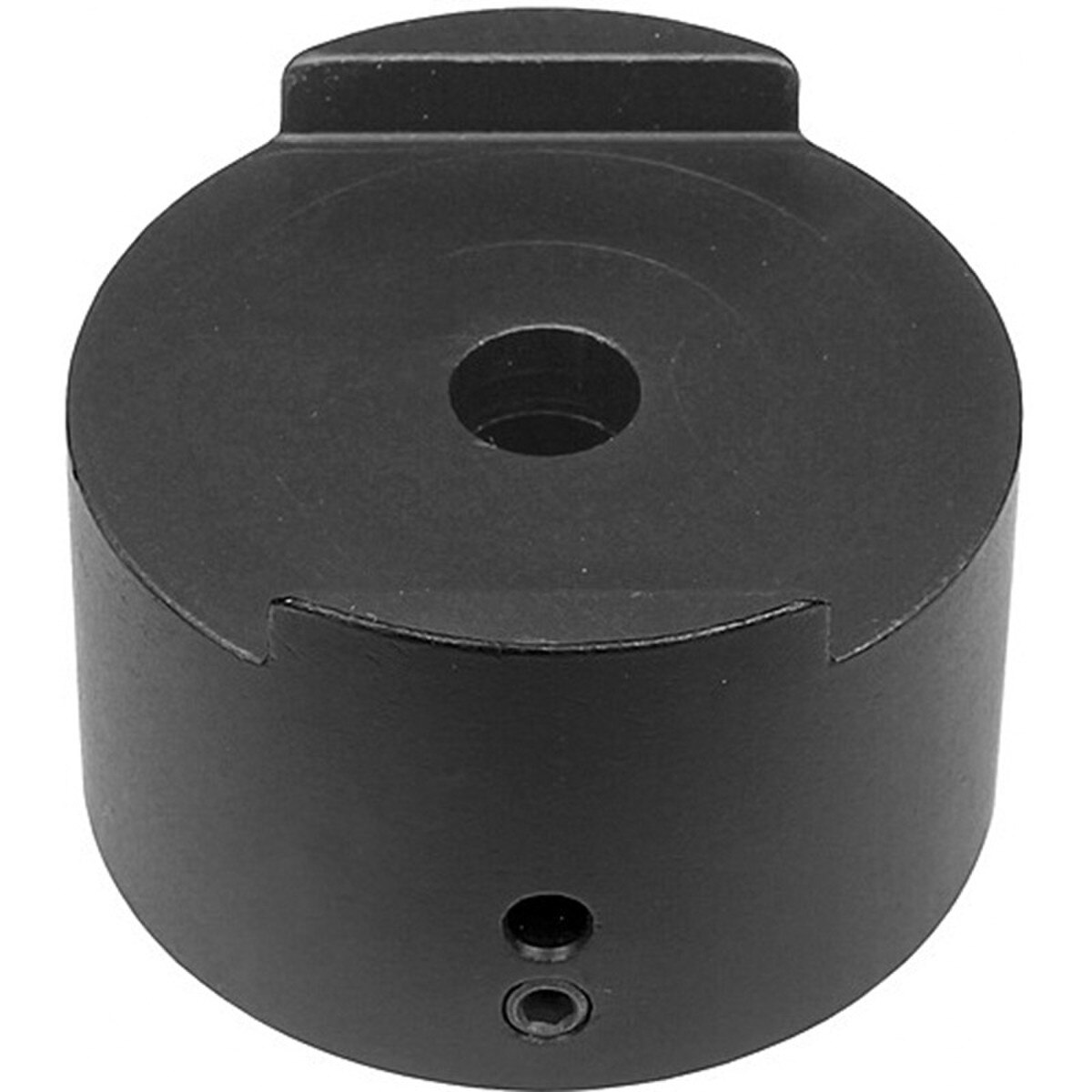

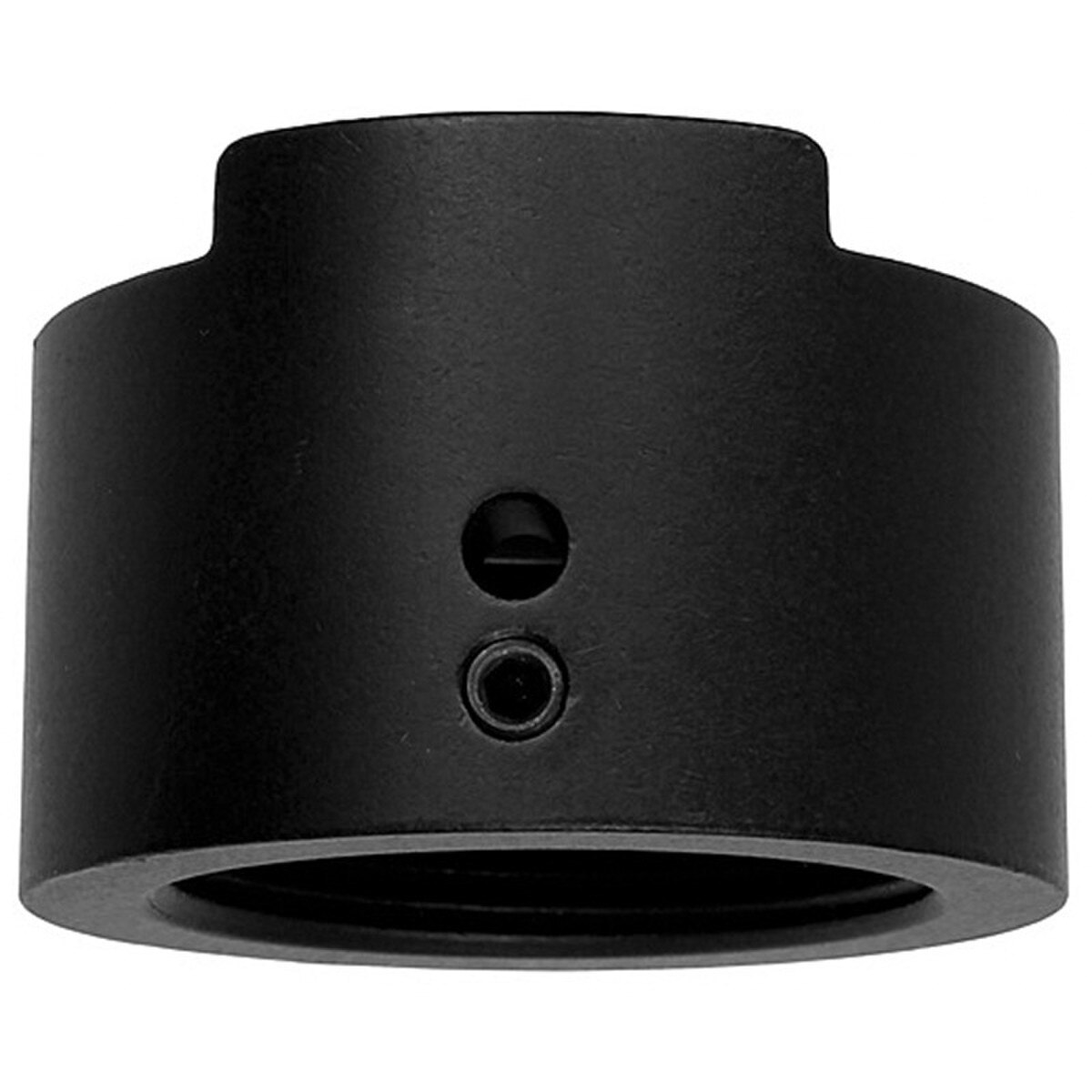

The Pipe to Coupler Adapter attaches a standard threaded 1-1/2" pipe (1.9" OD) to a Mega-Coupler. There are two interlocking tabs to keep the adapter from rotating.
The Adapter is fastened to the Mega-Coupler with a 1/2"-13 tpi by 1" long bolt and a jam nut. There is a 1/4"-20 tpi set screw to lock the pipe rotation, and an inspection hole to verify that the pipe is fully inserted. Safe vertical working load is 1100 pounds.
mega-coupler-pipe-adapter-41.pdf
The Pipe to Coupler Adapter attaches a standard threaded 1-1/2" pipe (1.9" OD) to a Mega-Coupler. There are two interlocking tabs to keep the adapter from rotating.
The Adapter is fastened to the Mega-Coupler with a 1/2"-13 tpi by 1" long bolt and a jam nut. There is a 1/4"-20 tpi set screw to lock the pipe rotation, and an inspection hole to verify that the pipe is fully inserted. Safe vertical working load is 1100 pounds.

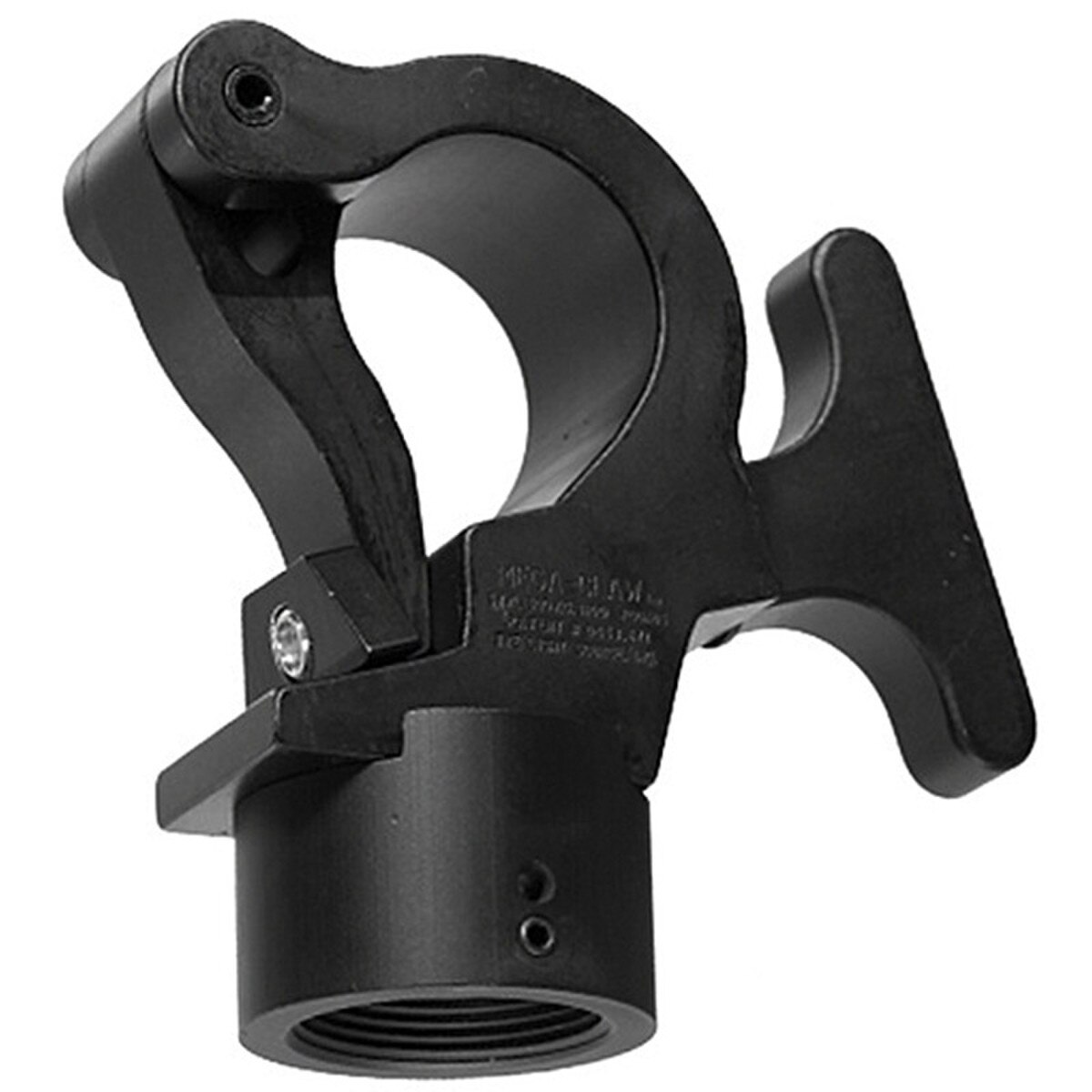

The Mega-Coupler Pipe Adapter can also be used on a Mega-Claw.
mega-coupler-pipe-adapter-41.pdf
