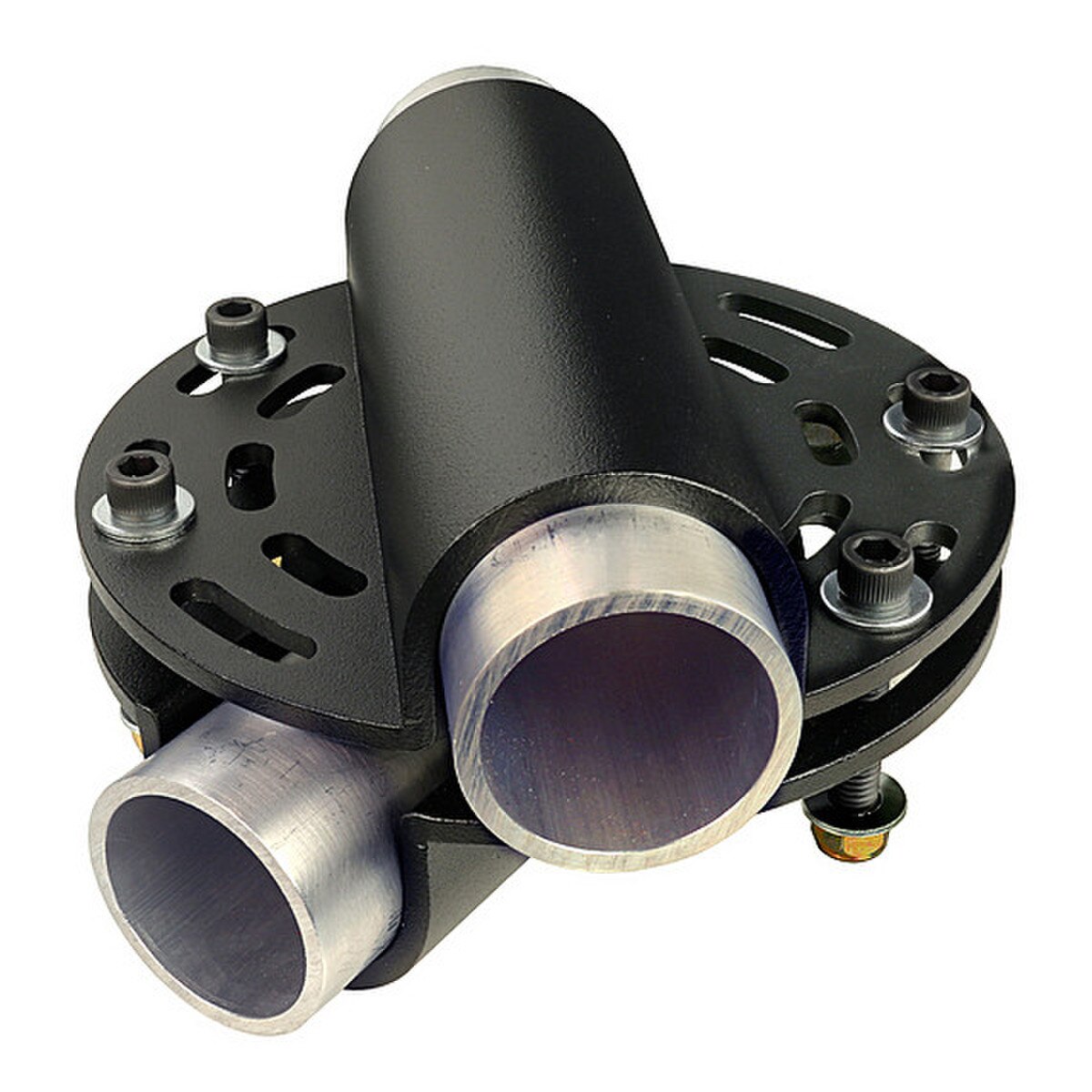

Light Source Mega Grid-Lock Diagonal Black Finish

Designed for permanent pipe grid installations in studios and theaters. Joins 2 overlapping pipes together in a 90 degree joint. Grooves act as a wrench holding the nut from turning while installing. Installs with a hex key tool in a battery drill.

Fastens any combination of 1-1/2" pipe (1.9" OD), 1-1/4" pipe (1.66" OD), and 2" OD Tube. (Tight fit on 2" OD tube)
The Mega-Gridlock can be used on curved track down to a radius of 3 feet (or a circle with a diameter of 6 feet).

Tighten the bolts to 11 foot pounds, which is about as tight as as can be done with a 6" hex key wrench.

Mega Grid-Lock Data Sheet
