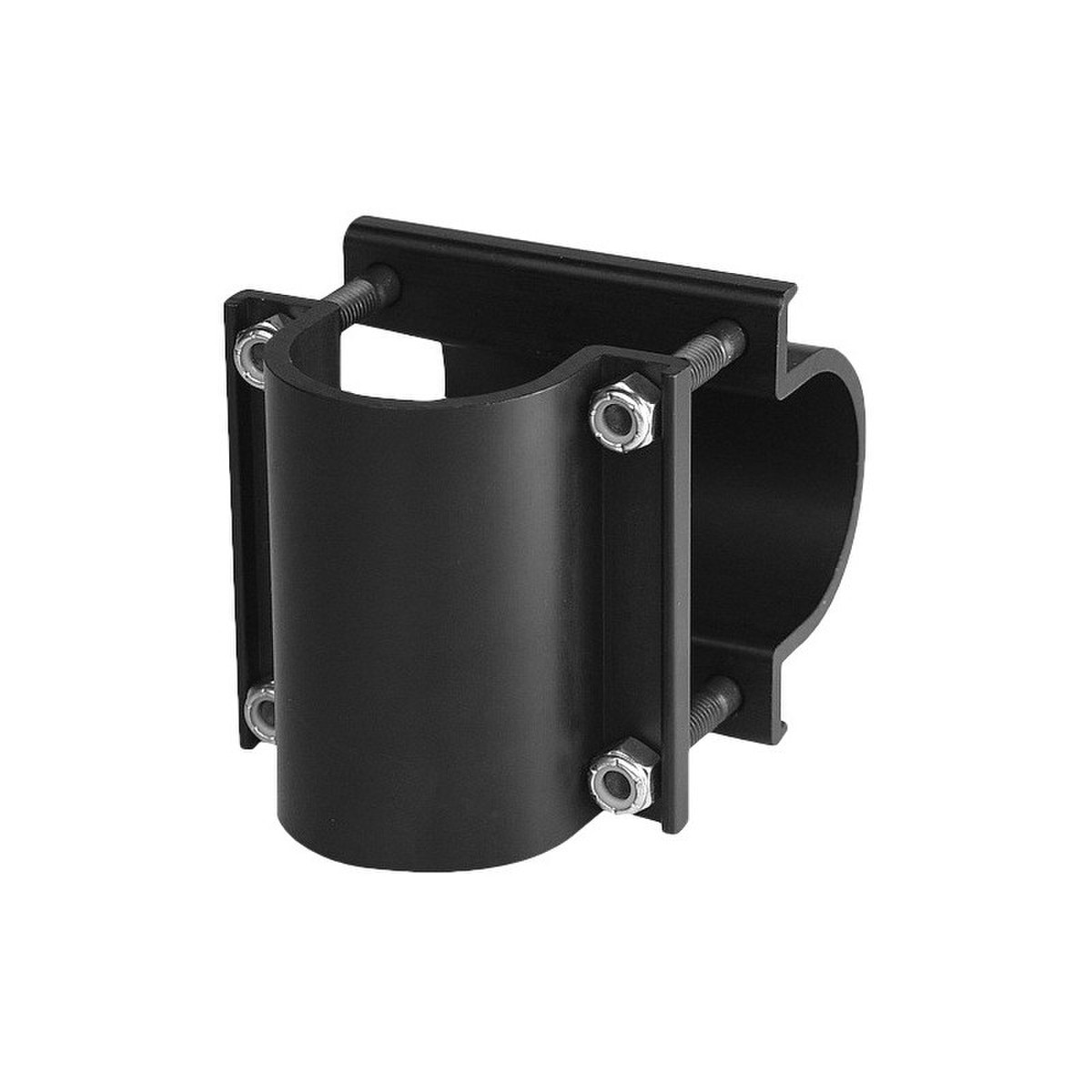

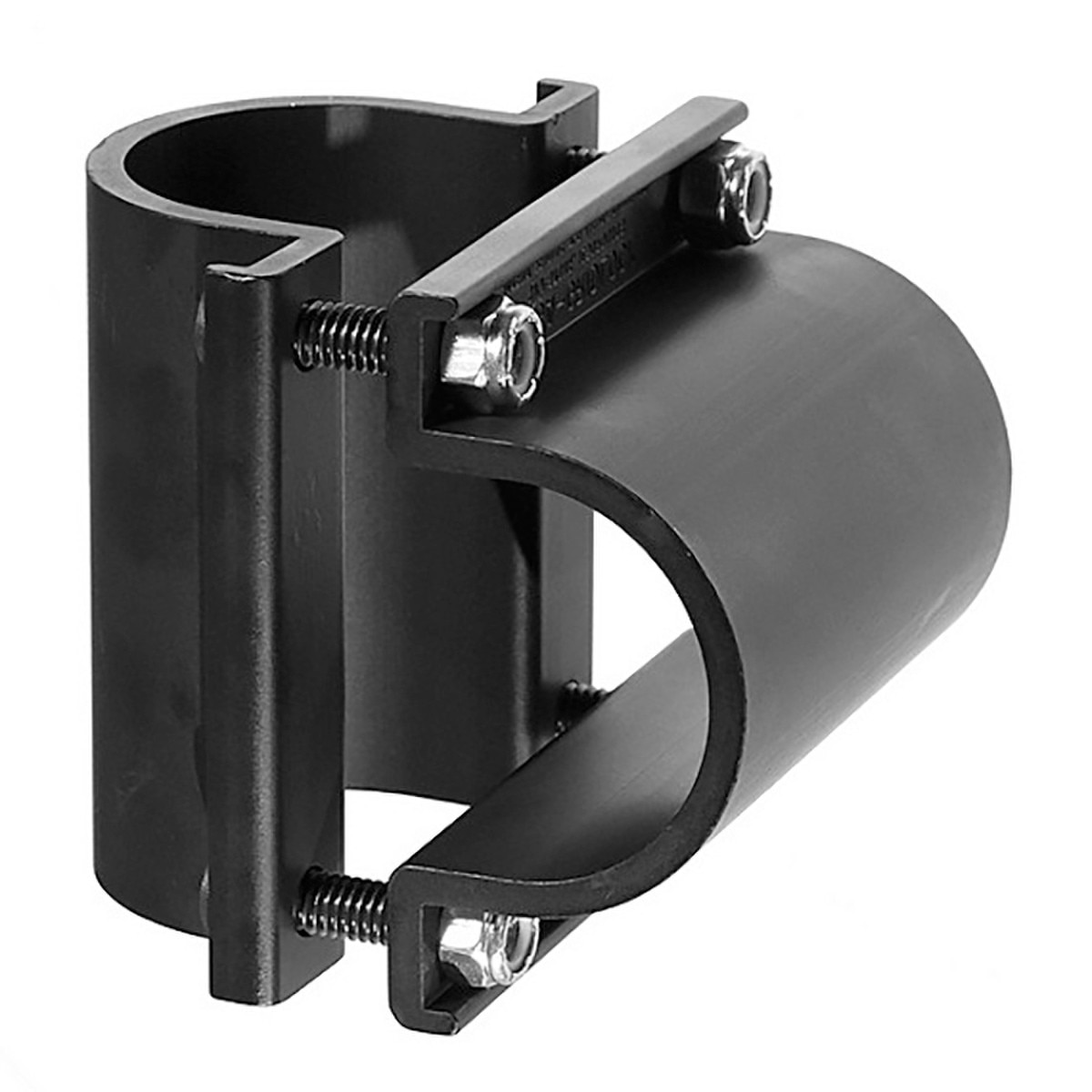

Light Source Mega-Gridlock - Black Anodized
Details
Designed for permanent pipe grid installations in studios and theaters. Joins 2 overlapping pipes together in a 90 degree joint. Grooves act as a wrench holding the nut from turning while installing. Installs with a hex key tool in a battery drill. Fastens any combination of 1-1/2" pipe (1.9" OD), 1-1/4" pipe (1.66" OD), and 2" OD Tube. (Tight fit on 2" OD tube).
Specifications:
- Minimum Size: 1.25" pipe, 1.66" OD pipe
- Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Safe Vertical Working Load: 1250 lb (568kg)
Hardware:
- 4 x 5/16" x 2" socket head cap screws
- 4 each 5/16" Nylock nuts
- Dimensions: 3.65" 3.65" x 4.375" tall max (0.375" plus the thckness of the 2 pipes joined.)
- Weight: 15 oz
Quick_Reference_Guide_4394_File_1.pdf
Mega-Gridlock-Cutsheet.pdf
mega-gridlock-specs.pdf
