Light Source Mega-Gridlock Diagonal XL - Black

(0)No Reviews yet
SKU: Light Source MGDB-XL

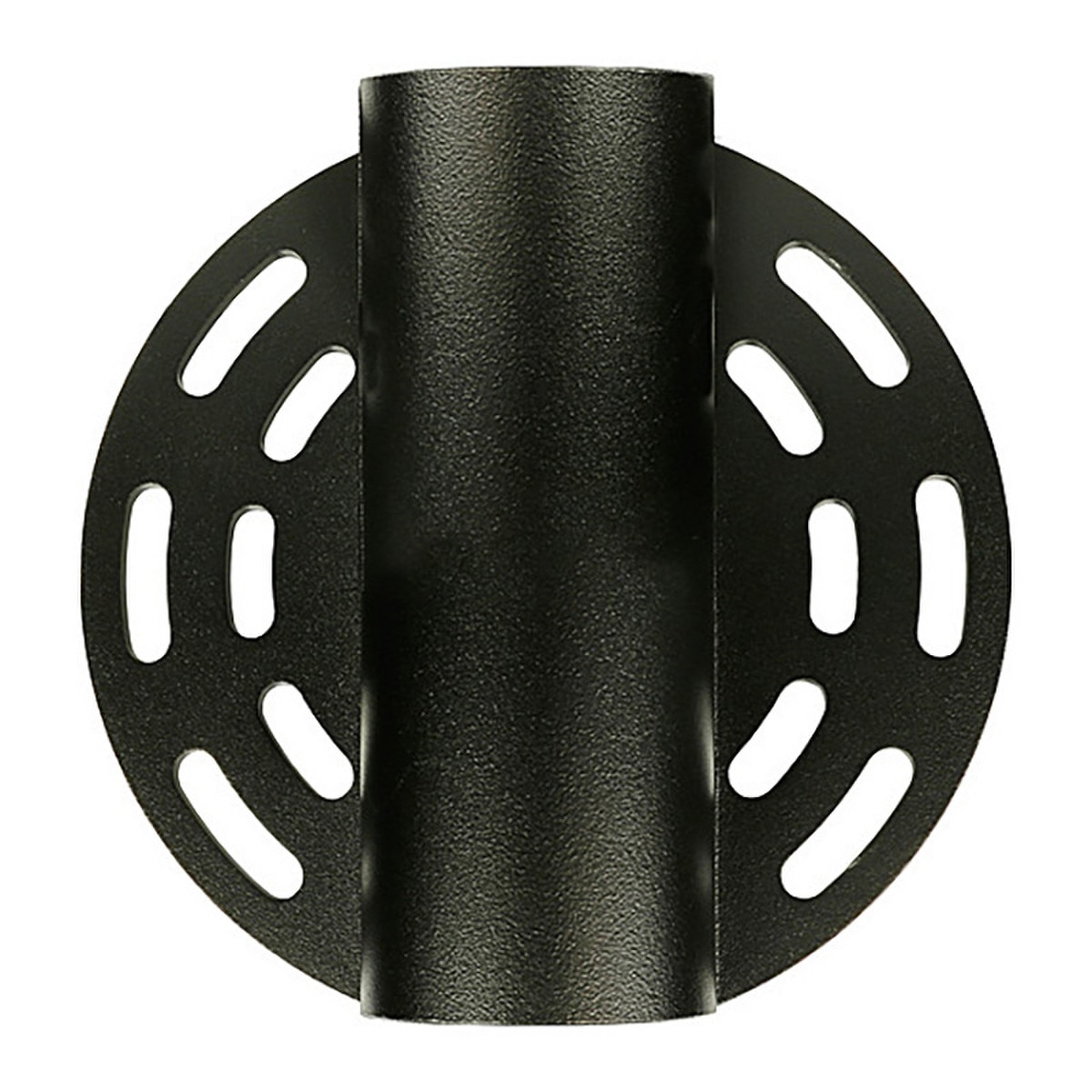

Black Mega-Gridlock Diagonal XL includes 2 Mega-Gridlocks with 2 circular supporting plates.

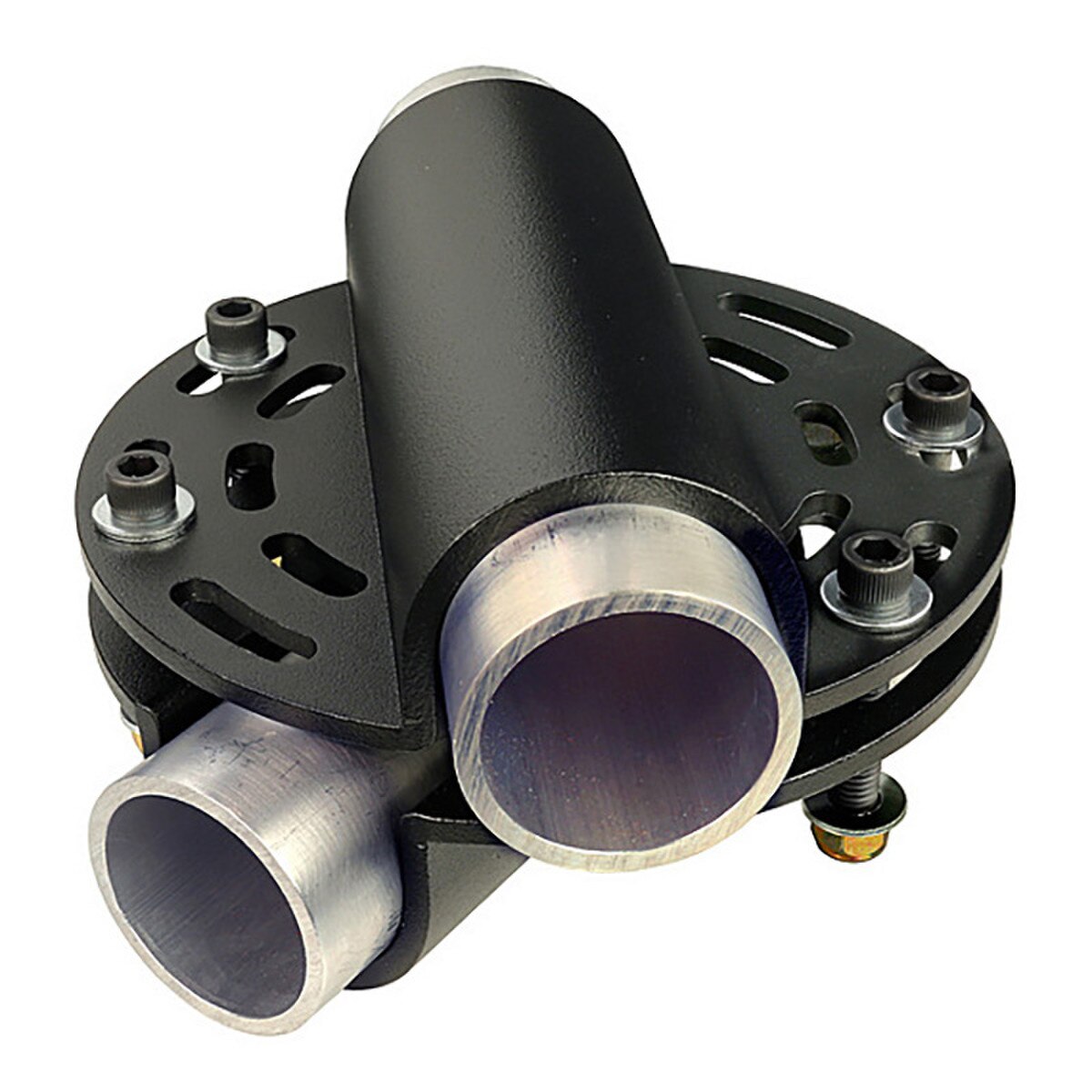

The new Mega-Gridlock Diagonal XL provides a solution for pipes that need to cross at varying angles. Multiple curved slots allow for precise positioning from 0˚ to 90˚. The Mega-Gridlock Diagonal XL works with 2 bolts or 4 bolts, depending upon the configuration of the pipes. With 4 bolts installed, the WLL is 800 lbs. The Mega-Gridlock Diagonal XL is a great option for versatility as well as accuracy in pipe installations.

Sized for 1-1/4"(1.66" OD) or 1-1/2"(1.9" OD) pipes.

An additional option is the diagonal plate combined with a standard Mega-gridlock.


  • Working Load Limit: 400 Pounds w/ 2 Bolts ; 800 Pounds w/ 4 Bolts
  • Weight: 1.74 lbs

Diagonal Grid Lock Cut Sheet 2020-09-23.pdf
