Light Source Mega-Gridlock Diagonal XL To Mega-Gridlock - Black
Details

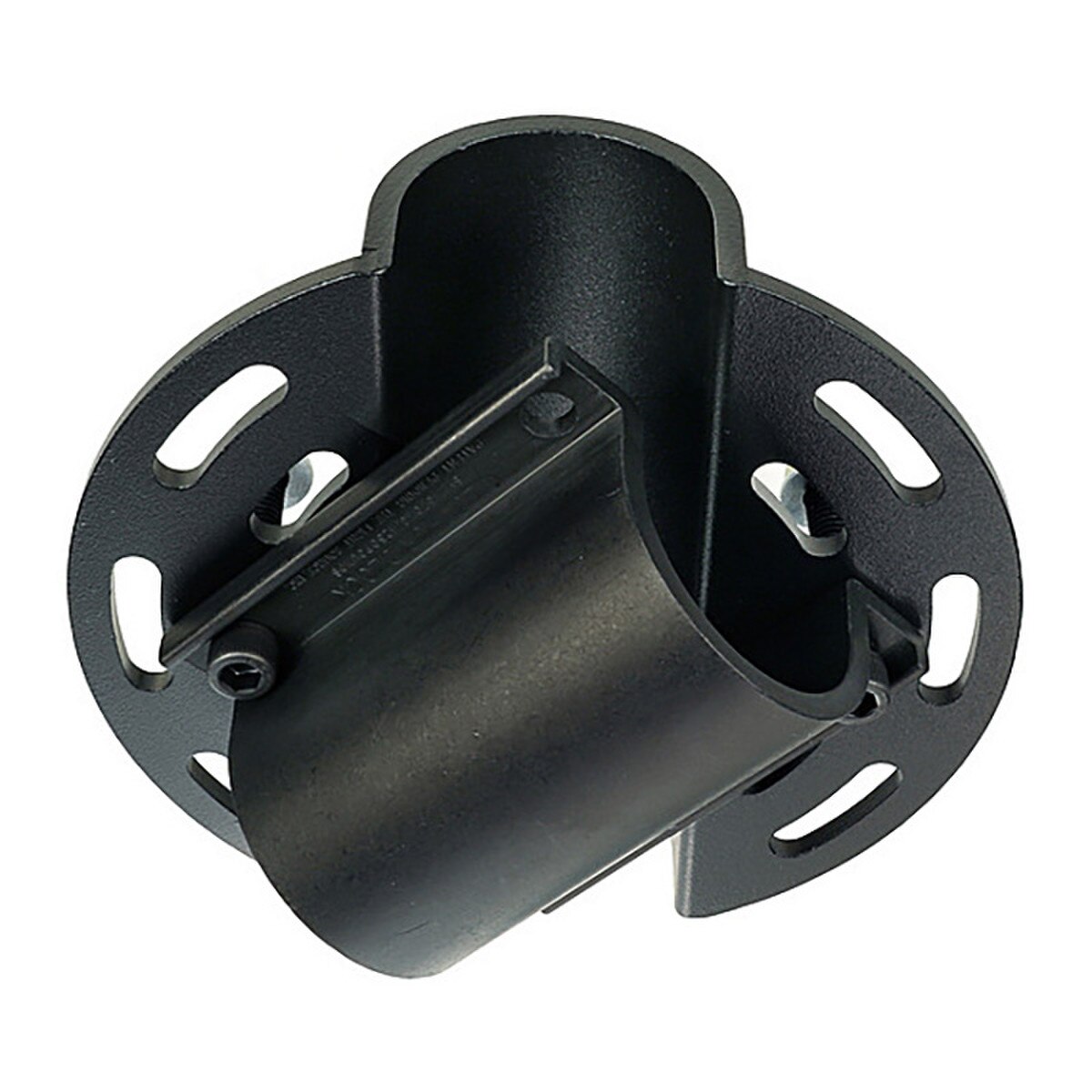

Black Mega-Gridlock Diagonal XL to Mega-Gridlock includes 2 Mega-Gridlocks with 1 circular supporting plate.
Mega-Gridlock Diagonal XL to Mega-Gridlock, Black
The new Mega-Gridlock Diagonal XL provides a solution for pipes that need to cross at varying angles. Multiple curved slots allow for precise positioning from 0˚ to 90˚. The Mega-Gridlock Diagonal XL works with 2 bolts or 4 bolts, depending upon the configuration of the pipes. With 4 bolts installed, the WLL is 800 lbs. The Mega-Gridlock Diagonal XL is a great option for versatility as well as accuracy in pipe installations.
Sized for 1-1/4"(1.66" OD) or 1-1/2"(1.9" OD) pipes.
An additional option is the diagonal plate combined with a standard Mega-gridlock.
Specifications:
- Working Load Limit: 400 Pounds w/ 2 Bolts ; 800 Pounds w/ 4 Bolts
- Weight: 1.74 lbs
