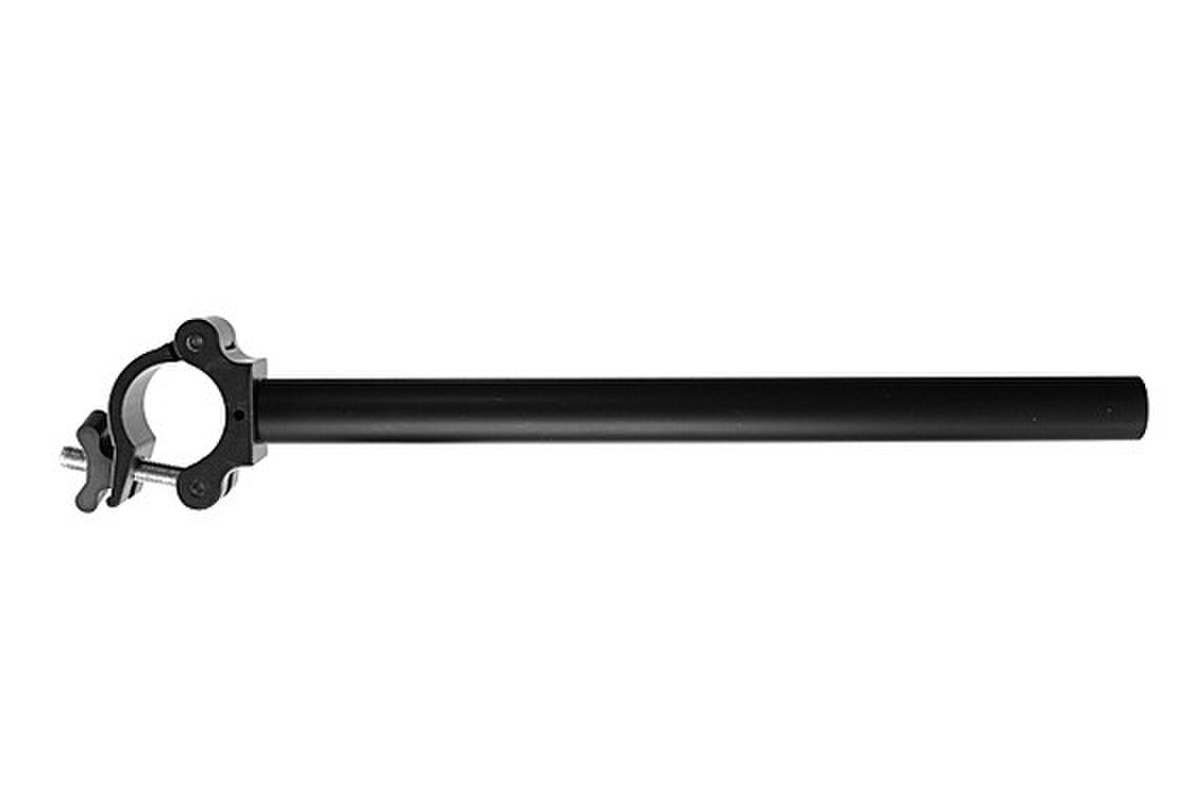

Light Source Mega-Sidearm 18 Inch Fixed Length - Black Anodized
Details
Mega-Sidearm Fixed Length
Available in 12", 18", 24", 30" and 36" Lengths. Black or Mill finish.
The Fixed Length Mega-Sidearm is a stable 2" Mega-Coupler attached to a 1.315" OD 1" Schedule 80 pipe.
The Mega-Sidearm Coupler connects to 1 1/4" pipe (1.66" OD), 1-1/2" pipe (1.9" OD), and 2" OD tube.
Working Load Limit is 300 lbs. @ 12" Length.
Working Load Limit is 200 lbs. @ 18" Length.
Working Load Limit is 150 lbs. @ 24" Length.
Working Load Limit is 120 lbs. @ 30" Length.
Working Load Limit is 100 lbs. @ 36" Length.
A Mega-Sidearm Slider can be purchased separately to fasten directly to the Mega-Sidearm. The slider is 1″×2″×3″ and has two drilled and tapped 1/2" holes. One for fastening to the light fixture and one for position locking.
Quick_Reference_Guide_4394_File_1.pdf
