Light Source Mega-Sidearm 36 Inch Fixed Length - Black Anodized

Name: Light Source Mega-Sidearm 36 Inch Fixed Length - Black Anodized
SKU: Light Source MSAB36
Price: 89.38 USD
Availability: InStock

(0)No Reviews yet

$89.38

Quantity discounts available

Quantity	Price
1 – 11	$89.38
12 – 23	$86.70
24 – 35	$84.91
36 – 47	$83.12
48 +	$82.23

SKU: Light Source MSAB36

Quantity

If you add this item, you're only $160 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Details

Back

Details

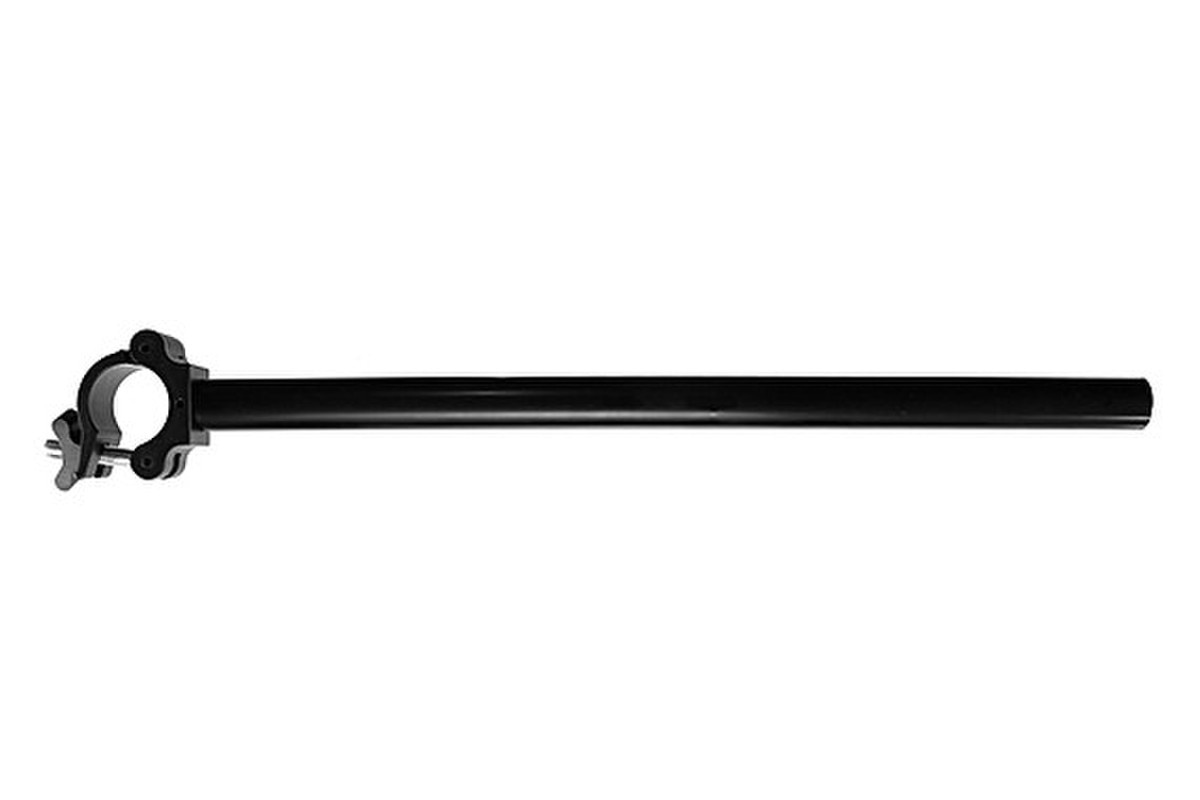

Mega-Sidearm Fixed Length

Available in 12", 18", 24", 30" and 36" Lengths. Black or Mill finish.

The Fixed Length Mega-Sidearm is a stable 2" Mega-Coupler attached to a 1.315" OD 1" Schedule 80 pipe.

The Mega-Sidearm Coupler connects to 1 1/4" pipe (1.66" OD), 1-1/2" pipe (1.9" OD), and 2" OD tube.

Working Load Limit is 300 lbs. @ 12" Length.
Working Load Limit is 200 lbs. @ 18" Length.
Working Load Limit is 150 lbs. @ 24" Length.
Working Load Limit is 120 lbs. @ 30" Length.
Working Load Limit is 100 lbs. @ 36" Length.

A Mega-Sidearm Slider can be purchased separately to fasten directly to the Mega-Sidearm. The slider is 1″×2″×3″ and has two drilled and tapped 1/2" holes. One for fastening to the light fixture and one for position locking.

Quick_Reference_Guide_4394_File_1.pdf
