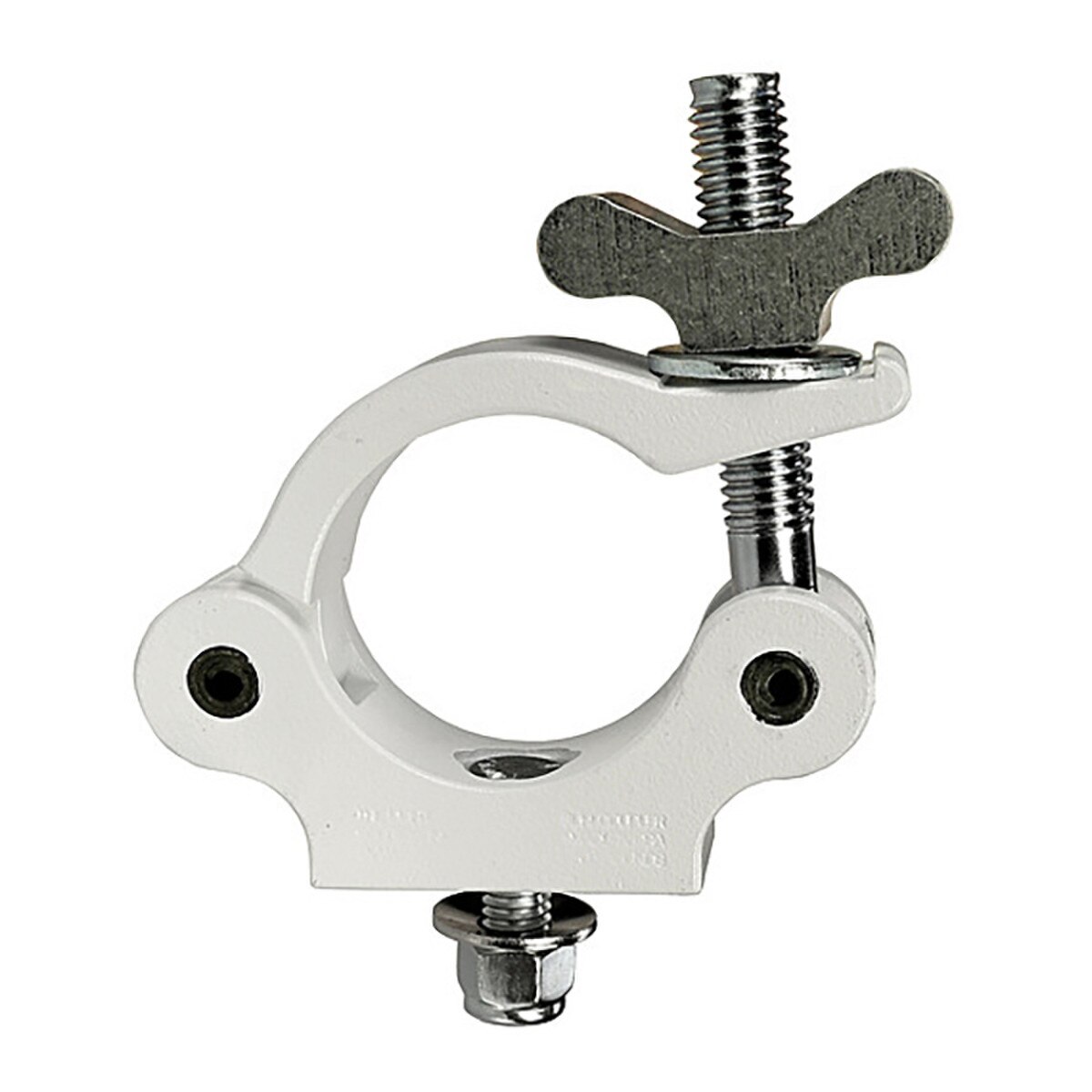

Light Source Mega-Slim Coupler 3/8in. Hex Head Bolt - White Powder Coat
Details
The Mega Slim Coupler is a lower profile option for smaller light fixtures. It is half the size of our standard Mega-Coupler and weighs 30% less; yet fits the same as the Mega-Coupler.
The Mega Slim will fasten from 1-1/4" pipe (1.66 OD) to 2.050 OD Truss Tube. It has a wide wing nut for easy fastening of the coupler to the pipe or tube as well as a hex pocket for 3/8" bolt. Includes 3/8"x1" zinc plated bolt with nylock nut and spring washer. The bolt fits flush into the Coupler.
The Mega Slim Coupler is also available with a 3/8" or 1/2" Flat Head Countersunk Bolt.
Specifications:
- Minimum Size: 1.25" pipe, 1.66 OD pipe
- Maximum Size: 1.5" pipe, 1.90 OD pipe, 2.050" OD Truss Tube
- Working Load Limit: 500 lbs
- Hardware: 3/8" x 1" Hex Cap Screw Belleville Washer Nylock Nut
- Weight: 0.65 lbs.
