Light Source Mega-Trackhanger Long Diagonal - Aluminum Finish

(0)No Reviews yet
$23.93
QuantityPrice
1 – 11$23.93
12 – 23$22.73
24 – 35$22.14
36 – 47$21.54
48 +$20.94
SKU: Light Source MTLDM

Details

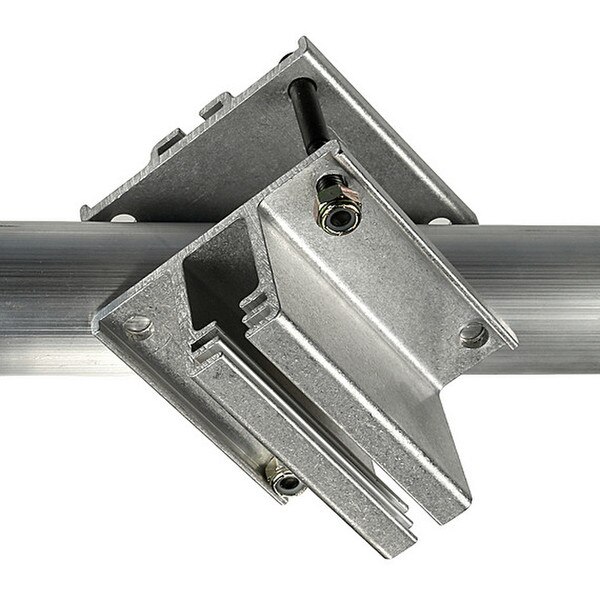

The Mega-Track Hanger makes it easy to hang 140 or 300 series track onto pipe grids, or from individual pipes.

The Mega-Track Hanger Long hangs from the upper pipe of the grid and has an offset length from the track to the pipe the diameter of the bottom grid pipe plus 3/16 of an inch and has two different track hanging slots so that it will work with either 1-1/2" or 1-1/4" schedule 40 pipe grids.

It uses a Mega-Gridlock half to fasten over the pipe and secure from below with four 5/16" socket head screws. The Mega-Gridlock half has slots along the edge that act like a wrench to hold the four Nylock nuts from turning during installation. Only a slight downward pressure with your fingers is required to hold a nut in place for installation. The track hanger slides over the track prior to placing the track in position. Support track approximately every 4 feet. This version supports track on a diagonal.

Specifications:

  • Safe Vertical Working Load: 300 lbs
  • Hardware: 4 each 5/16" x 2" socket head Cap Screws and Nylock Nuts
  • Dimensions: 3.65" x 3.65"
  • Weight: 1 Lb

Quick_Reference_Guide_4394_File_1.pdf
