Light Source Mega-Trackhanger Long Diagonal - Black Anodized
Details

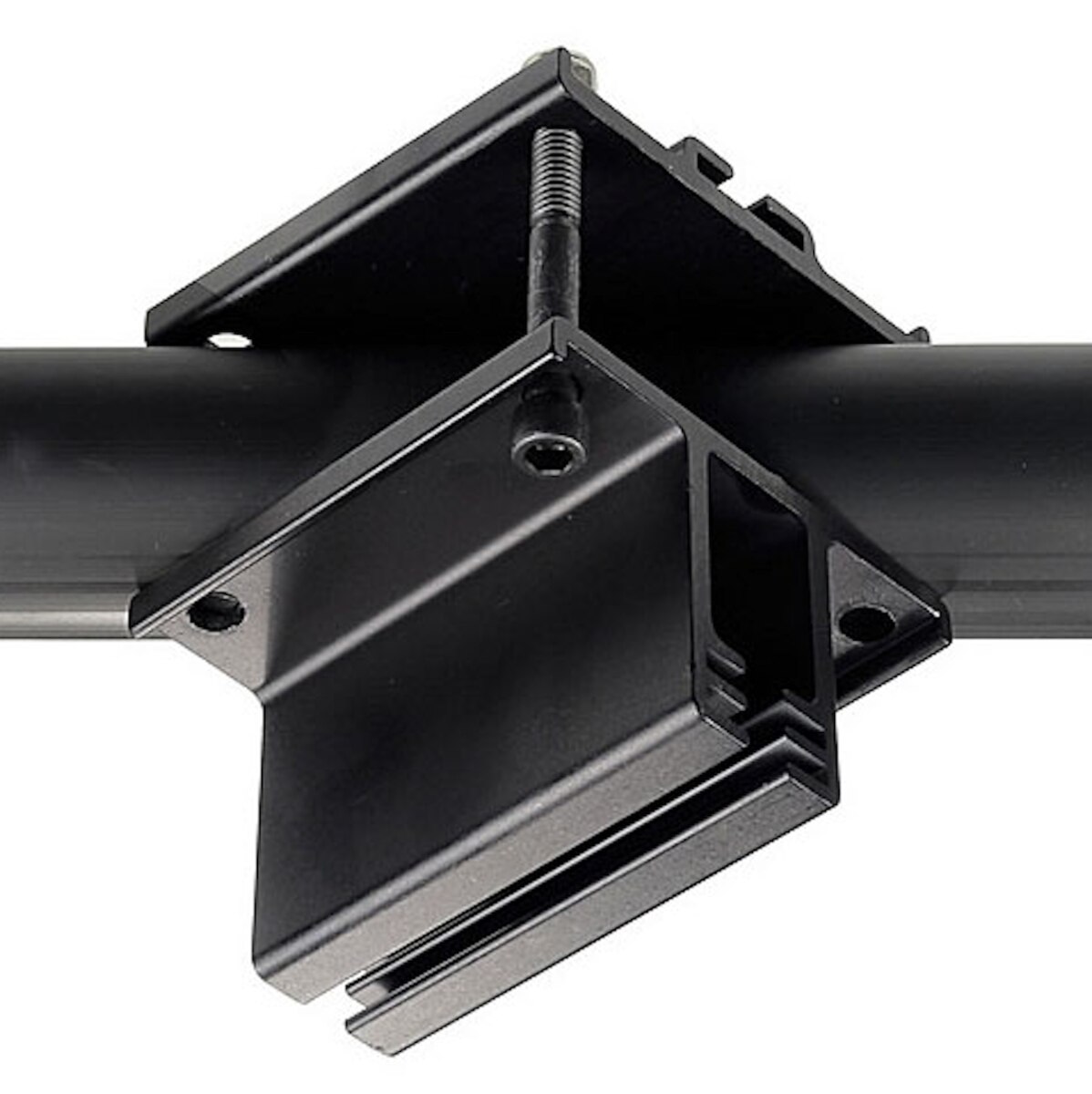

The Mega-Track Hanger makes it easy to hang 140 or 300 series track onto pipe grids, or from individual pipes. The Mega-Track Hanger Long hangs from the upper pipe of the grid and has an offset length from the track to the pipe the diameter of the bottom grid pipe plus 3/16 of an inch and has two different track hanging slots so that it will work with either 1-1/2" or 1-1/4" schedule 40 pipe grids.
It uses a Mega-Gridlock half to fasten over the pipe and secure from below with four 5/16" socket head screws.
The Mega-Gridlock half has slots along the edge that act like a wrench to hold the four Nylock nuts from turning during installation. Only a slight downward pressure with your fingers is required to hold a nut in place for installation. The track hanger slides over the track prior to placing the track in position. Support track approximately every 4 feet. This version supports track on a diagonal.
Quick_Reference_Guide_51721_File_1.pdf
It uses a Mega-Gridlock half to fasten over the pipe and secure from below with four 5/16" socket head screws.
The Mega-Gridlock half has slots along the edge that act like a wrench to hold the four Nylock nuts from turning during installation. Only a slight downward pressure with your fingers is required to hold a nut in place for installation. The track hanger slides over the track prior to placing the track in position. Support track approximately every 4 feet. This version supports track on a diagonal.
Specifications:
- Safe Vertical Working Load: 300 lbs
- Hardware: 4 each 5/16" x 2" socket head Cap Screws and Nylock Nuts
- Dimensions: 3.65" x 3.65"
- Weight: 1 Lb
