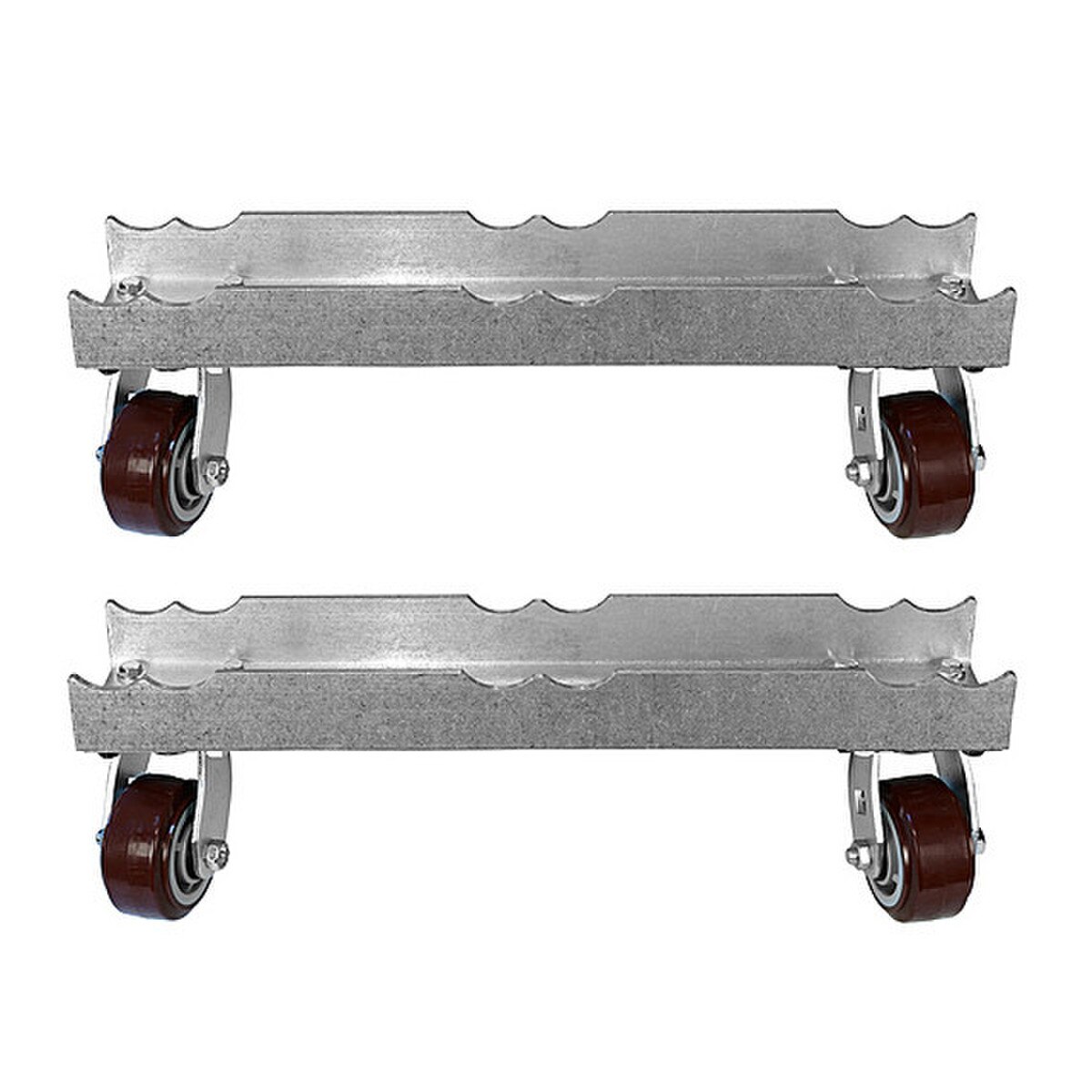

Light Source Mega Truss Dolly-a pair of dollies for two 12" truss or one 20.5" truss
Details
The Mega-Truss Dolly easily holds truss for transport or storage. The 5" aluminum C channel has CNCmilled cutouts for truss to ride in. It is important to secure the trusses tightly to the Mega-Truss Dolly with an E-Clip ratchet strap before moving.
Quick_Reference_Guide_4394_File_1.pdf
The 4″ × 2″ heavy duty castors are rated for 480 pounds each. A pair of Mega-Truss Dollies will carry up to 1900 total pounds of truss.
Mega-Truss Dollies are available in a variety of sizes, with additional sizes available upon request. Dollies are sold as a set (pair).
E-Clip ratchet straps are available and are sold separately. Each strap is 16’ in length. Since truss dollies are sold as a pair, you will need to purchase 2 E-straps for each set of dollies.
Specifications:
- Safe Vertical Working Load: 960 lbs per dolly
- Hardware: Encore 4" × 2" 480 lb rated casters each secured with 4 each 3/8" × 3/4" grade 5 Hex head cap screws and serrated hex flange nuts
- Weight: Approx. 28 lbs for each set
