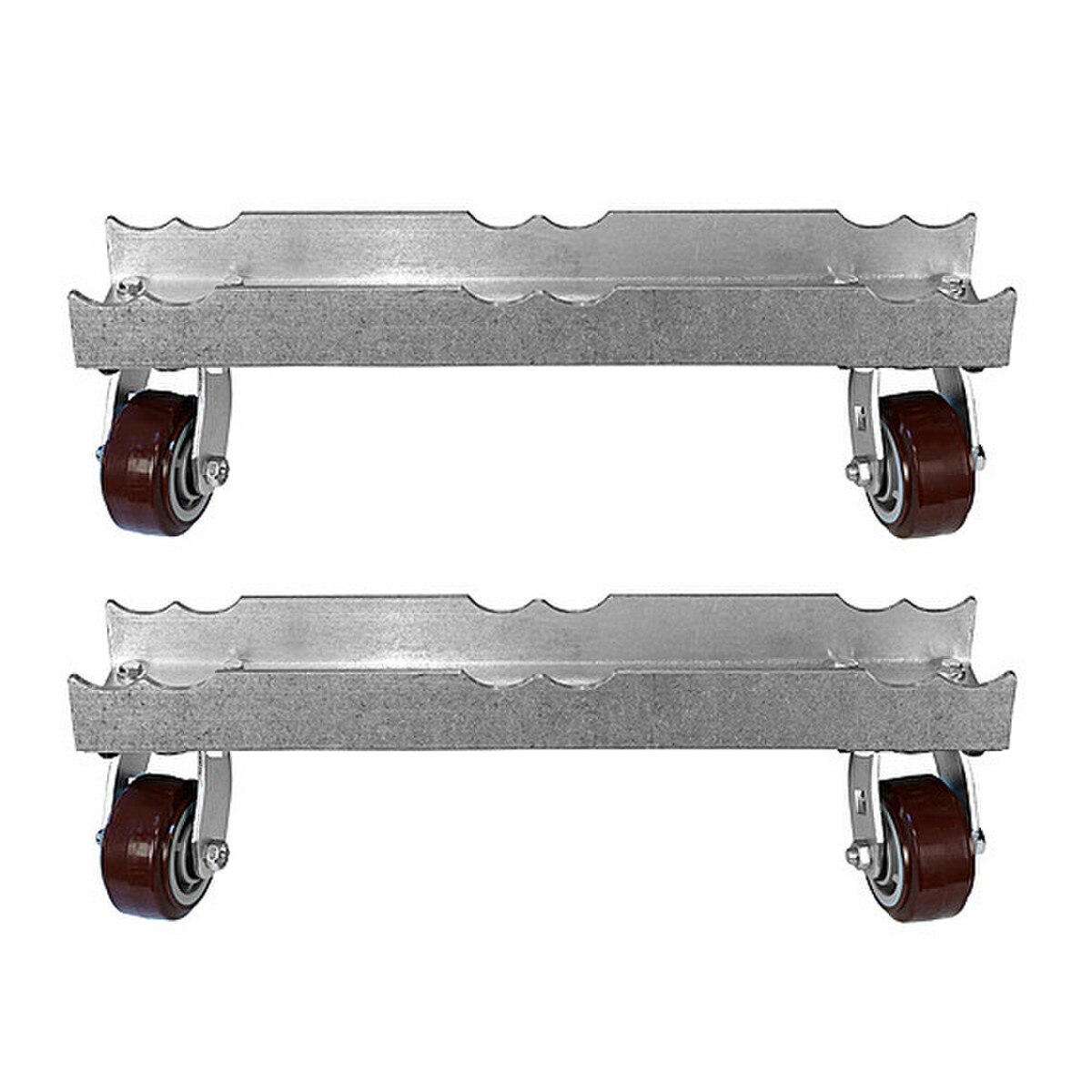

Light Source Mega-Truss Dolly-pair of dollies for 2-12inch euro truss,Silver

The Mega-Truss Dolly easily holds truss for transport or storage. 5 inch aluminum channel has CNC milled cutouts for truss to ride in. The truss is secured tightly with an E-Clip ratchet strap before transport on its two 480 pound rated four inch heavy duty casters. A pair of Mega-TrussDollies will carry up to 1920 total pounds of truss.

Add the optional Mega-Couplers to hold the outside bottom pieces of truss directly to the Mega-Truss Dolly without the straps, to help in rolling the Mega-Truss Dolly to load or unload truss without tipping the dollies.

Optional E-Clip ratchet straps are not included and are sold separately.

Specifications:

• Safe Vertical Working Load: 960 lbs per dolly
• Hardware: Encore 4"x 2" 480 lb rated casters each secured with 4 each 3/8" x 3/4" grade 5 Hex head cap screws and serrated hex flange nuts
• Weight: Approx. 28 lbs for each set
