  • Light Source Mega-Truss Dolly- a pair of dollies for 3-11.4375in. Truss -Silver

Light Source Mega-Truss Dolly- a pair of dollies for 3-11.4375in. Truss -Silver

(0)No Reviews yet
$506.38
QuantityPrice
1 – 11$506.38
12 – 23$481.06
24 – 35$468.40
36 – 47$455.74
48 +$443.08
SKU: Light Source MTDGLOBAL11.4375-3

Details

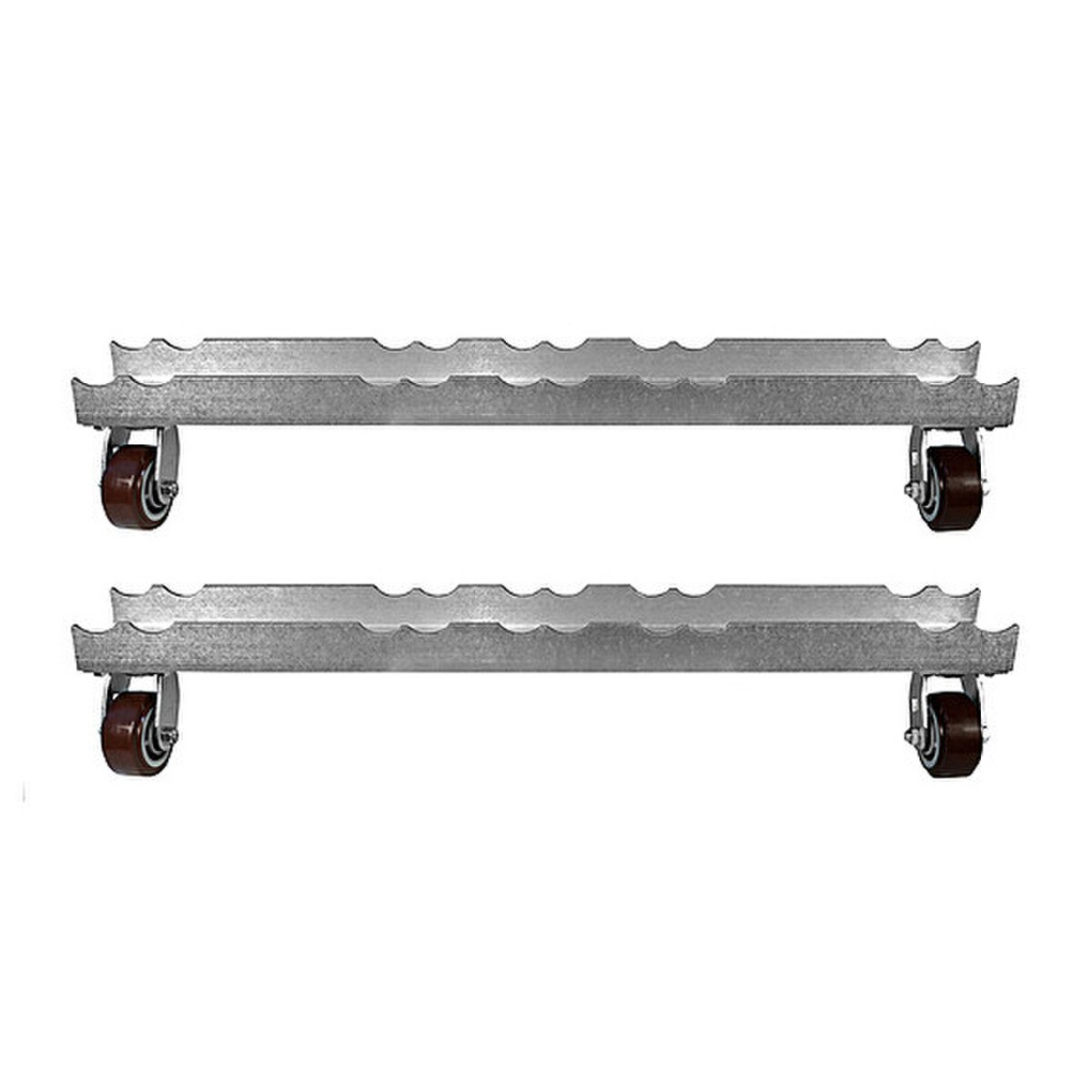

The Mega-Truss Dolly easily holds truss for transport or storage. 5 inch aluminum channel has CNC milled cutouts for truss to ride in. The truss is secured tightly with an E-Clip ratchet strap before transport on its two 480 pound rated four inch heavy duty casters. A pair of Mega-Truss Dollies will carry up to 1920 total pounds of truss.

Add the optional Mega-Couplers to hold the outside bottom pieces of truss directly to the Mega-Truss Dolly without the straps, to help in rolling the Mega-Truss Dolly to load or unload truss without tipping the dollies.

Optional E-Clip ratchet straps are not included and are sold separately.

Specifications:

  • Safe Vertical Working Load: 960 lbs per dolly
  • Hardware: Encore 4" x 2" 480 lb rated casters each secured with 4 each 3/8" x 3/4" grade 5 Hex head cap screws and serrated hex flange nuts
  • Weight: Approx. 28 lbs for each set


Quick_Reference_Guide_51721_File_1.pdf
