Light Source Mega-Truss Pick 11.4375 for Threaded Rod Installations - Black Anodized
Details

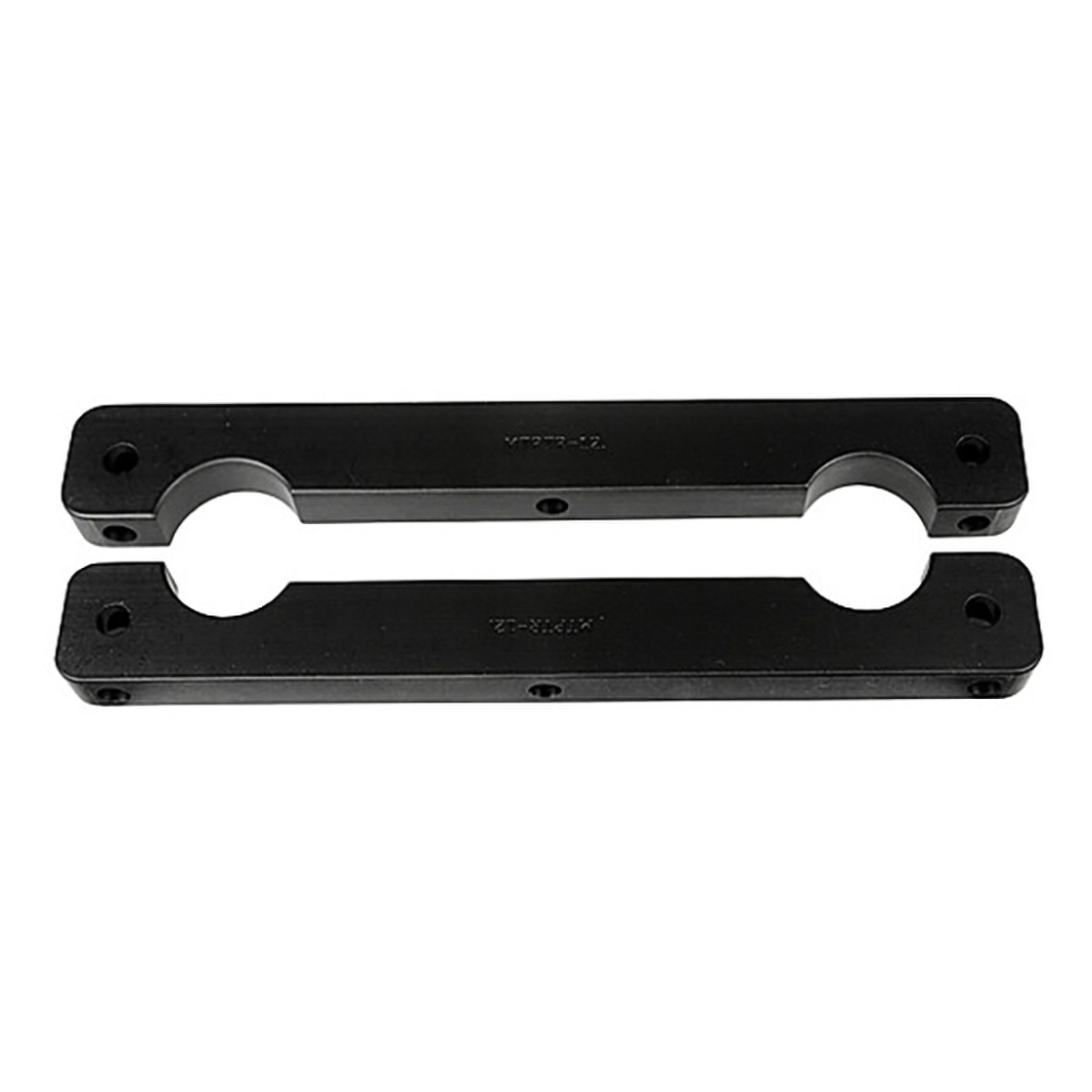

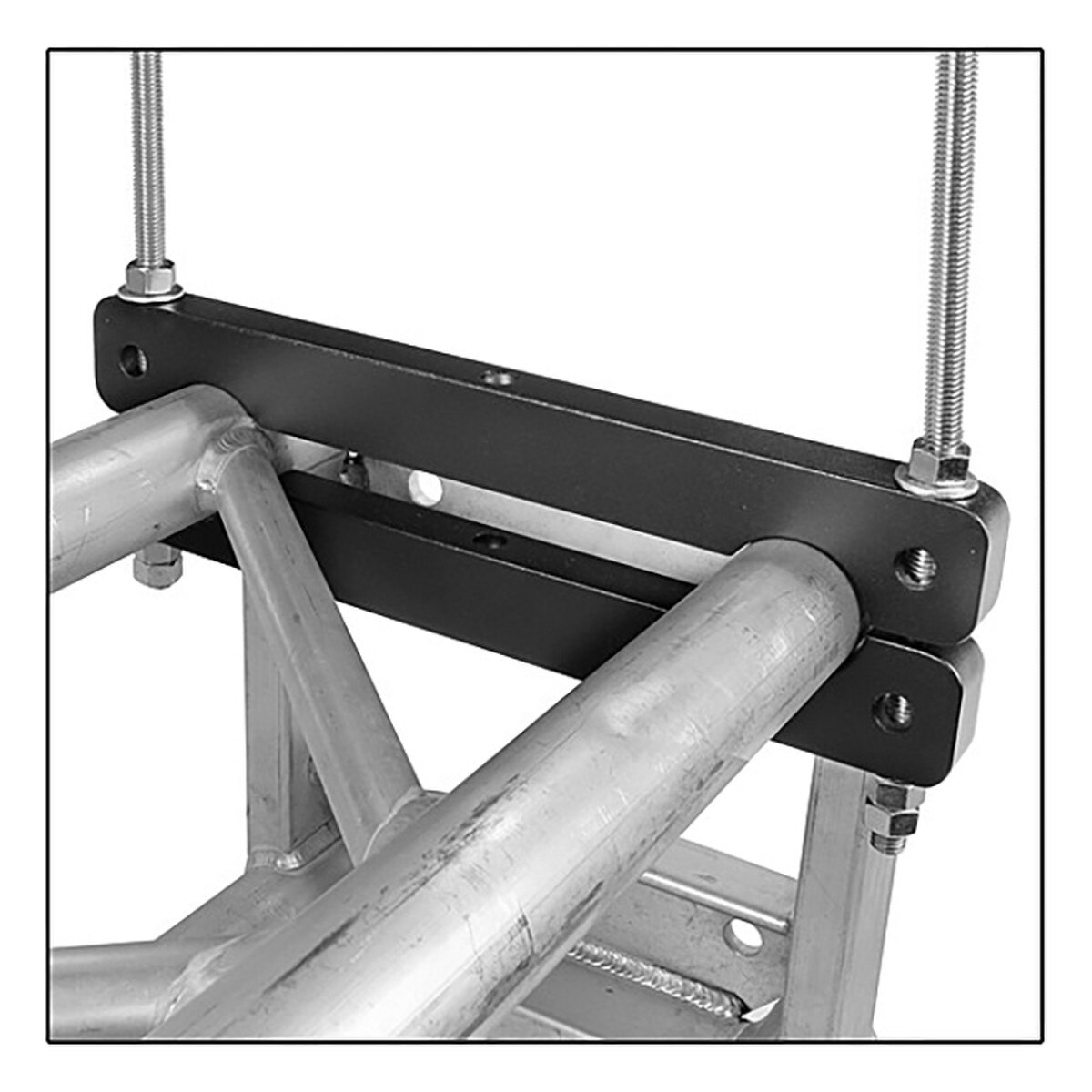

Two 1" x 2" x 15" 6061T-6 aluminum bars CNC machined with pockets to support one piece of 12" truss. The Mega-Truss Pick will suspend up to one ton of truss load when the Mega-Truss Pick is suspended by two customer supplied 1/2" threaded rods, or two 1/2" forged steel shoulder eyebolts fastened through the outside support holes. All of the holes are through holes without threading. Secure the threaded rod with a nut and washers above and use a nyloc nuts with a USS washer below the truss pick.
Rigging from only the center hole de-rates the Threaded Rod Truss Pick to 250 pounds capacity. Priced per pair.
Working Load Limit:
- 2000 lbs with two outside 1/2" threaded rods
Dimensions:
- 1" x 2" x 21" (18 inch)1" x 2" x 15" (12 inch)
Weight:
- 12" - 5 lbs. 18" - 7 lbs.
Light Source Mega-Truss Pick for Threaded Rod Installations Specifications.pdf
Light Source Mega-Truss Pick 11.4375 for Threaded Rod Installations - Black Anodized (Light Source MTPTR11.4375B)
